To remove

  1. Remove the turbocharger heat shield.
  2. Remove the turbocharger delivery pipe.

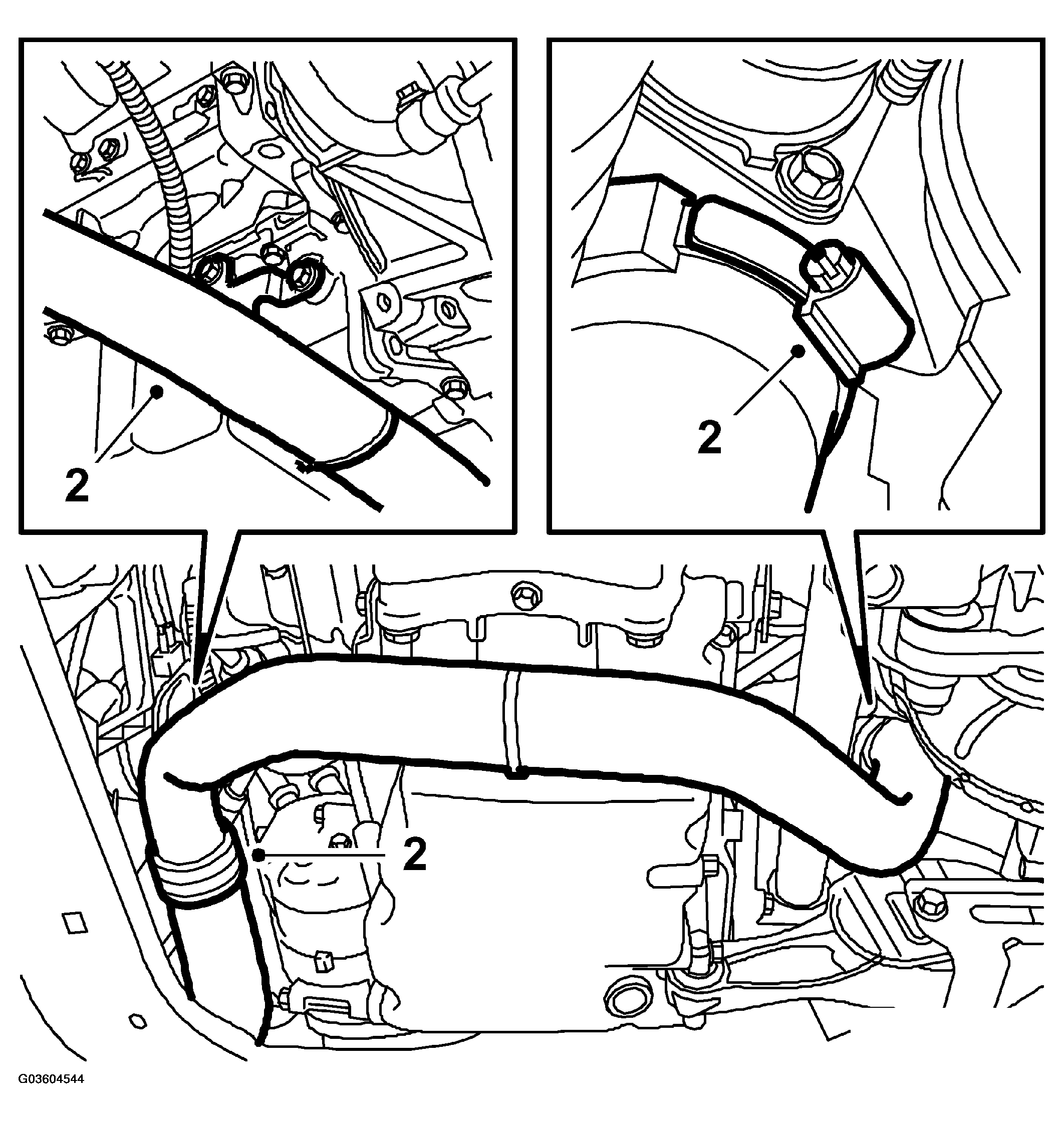

    Fig 1: Illustration For Step 2
    G03604544Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Remove the screw to the oil delivery pipe from the turbocharger.

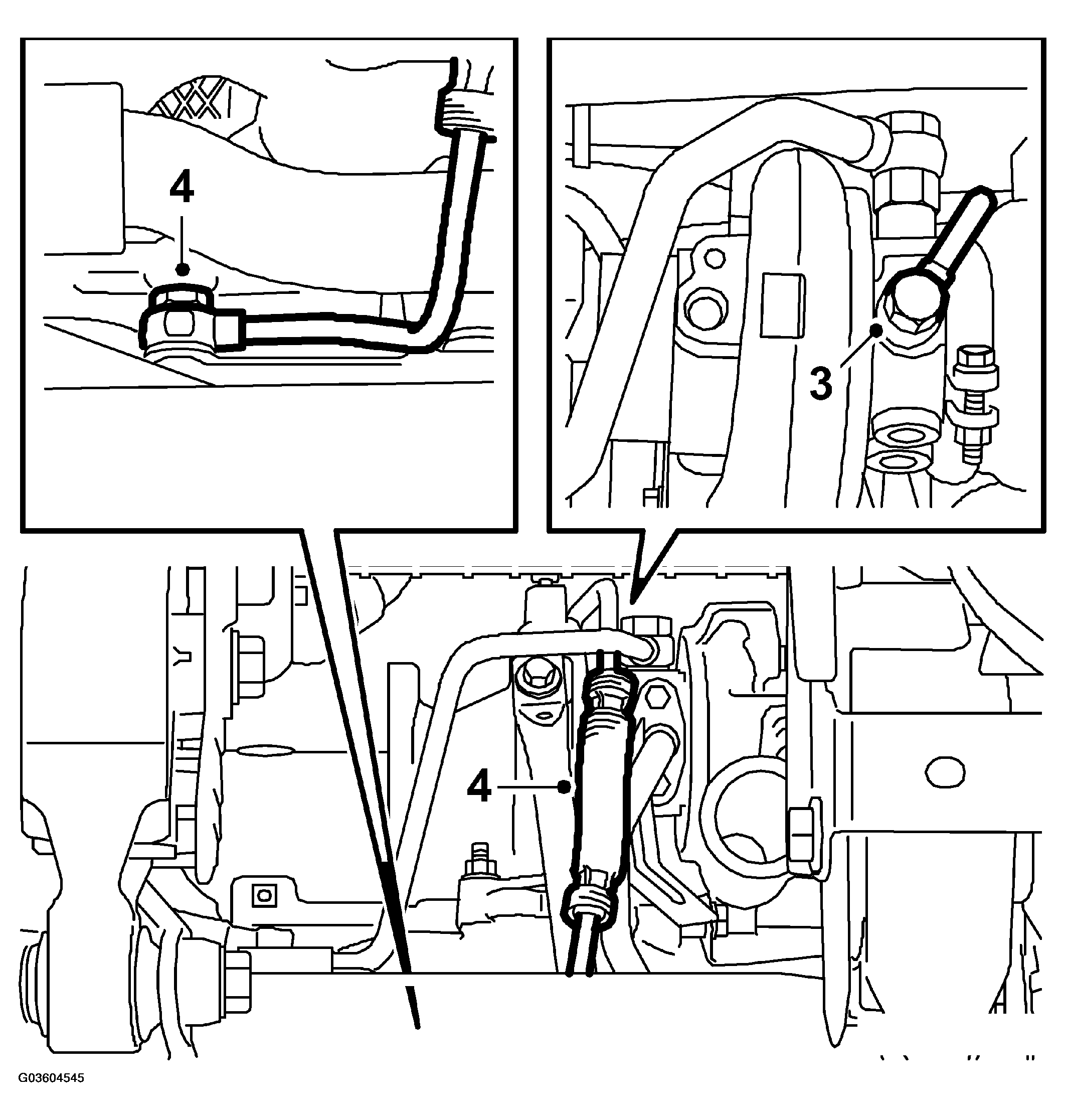

    Fig 2: Illustration For Steps 3-4
    G03604545Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Raise the car. Remove the banjo screw from the engine block.

    Remove the pipe and its gaskets from the connecting hole from the engine block.
