To remove

  1. Raise the car.
  2. Remove the Spoiler shield, front.
  3. Detach the hose clamps and the bolts. Remove the delivery pipe.

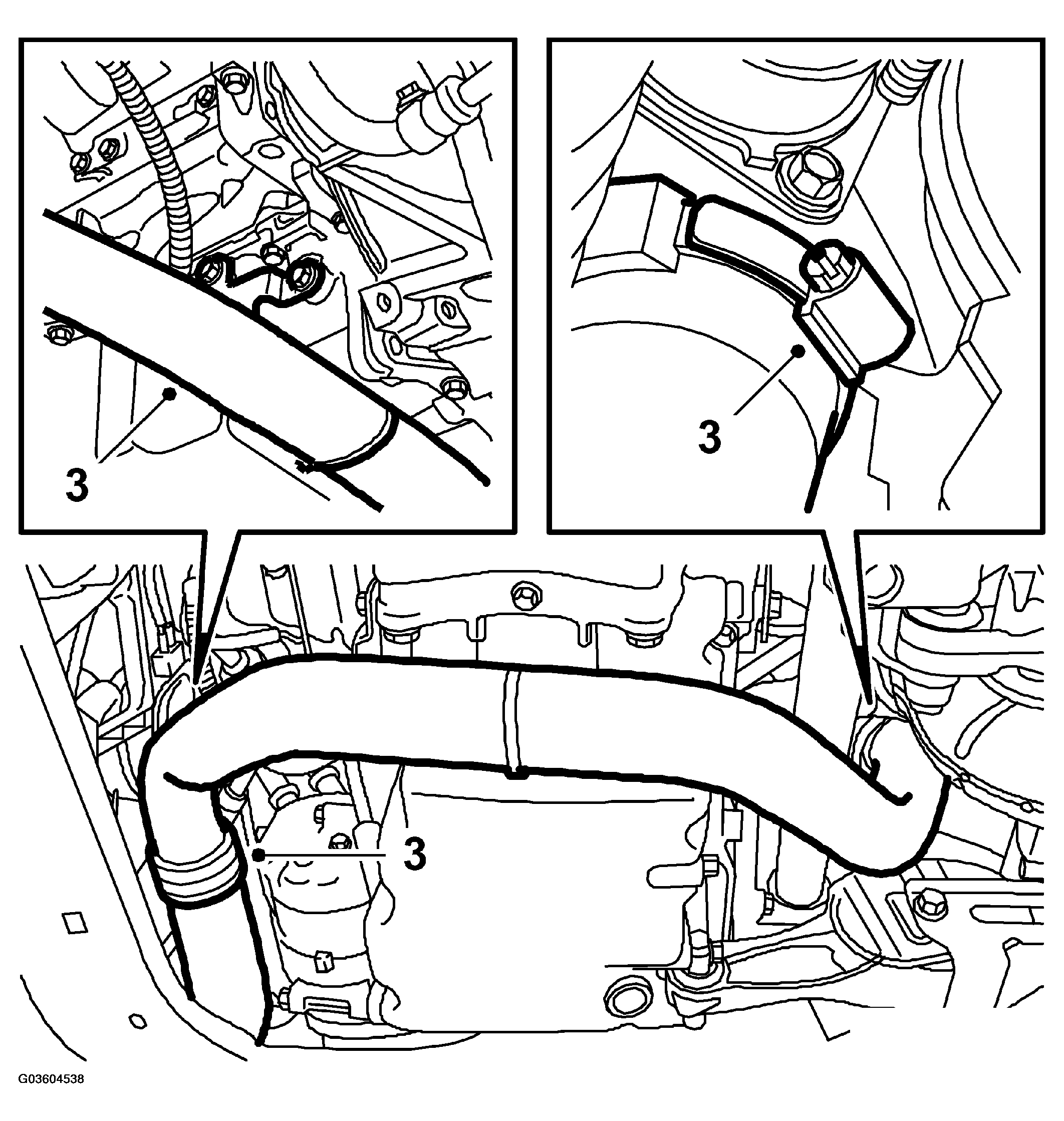

    Fig 1: Illustration For Step 3
    G03604538Courtesy of SAAB-SCANIA OF AMERICA, INC.
