Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Hydraulic Brake System - FOOTBRAKE System (Late; 9440) >> Component location >> Right brake light bulb (30RR) >> Location:

Right brake light bulb (30RR): Location:

in the rear wing's light cluster

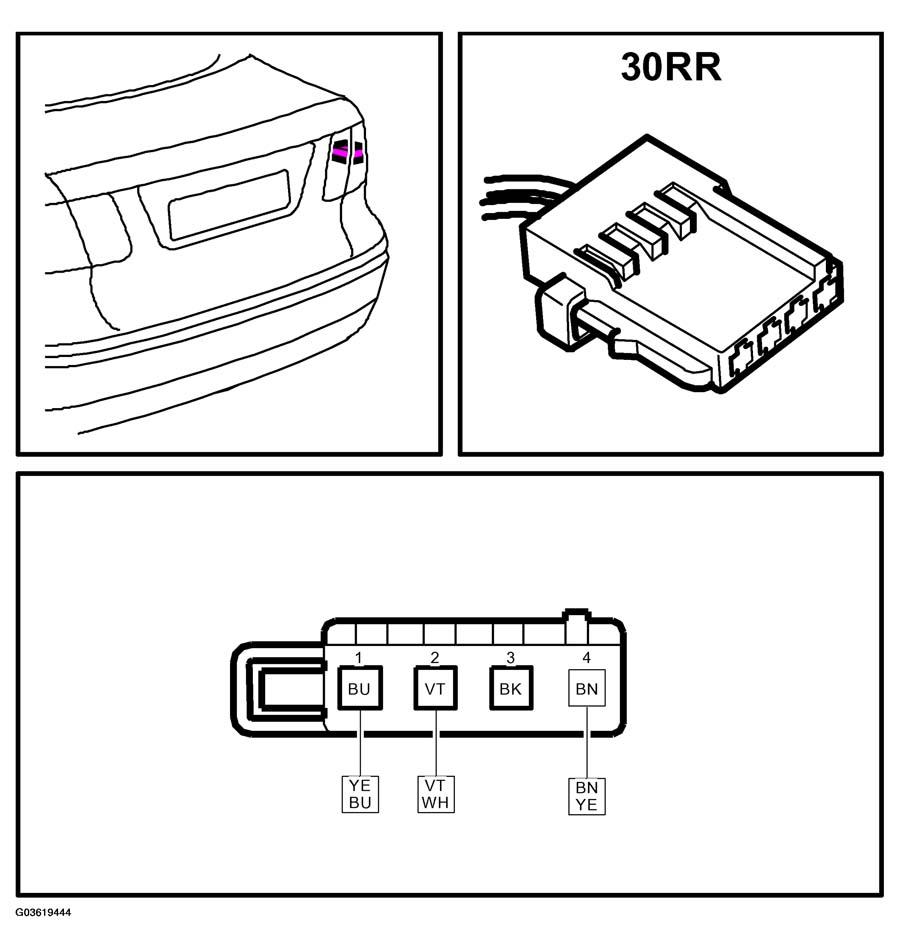

Fig 1: Identifying Right Brake Light Bulb (30RR) - Connector Terminal

G03619444

Courtesy of SAAB-SCANIA OF AMERICA, INC.
