Level switch, brake fluid (42): Location:

on the brake fluid reservoir

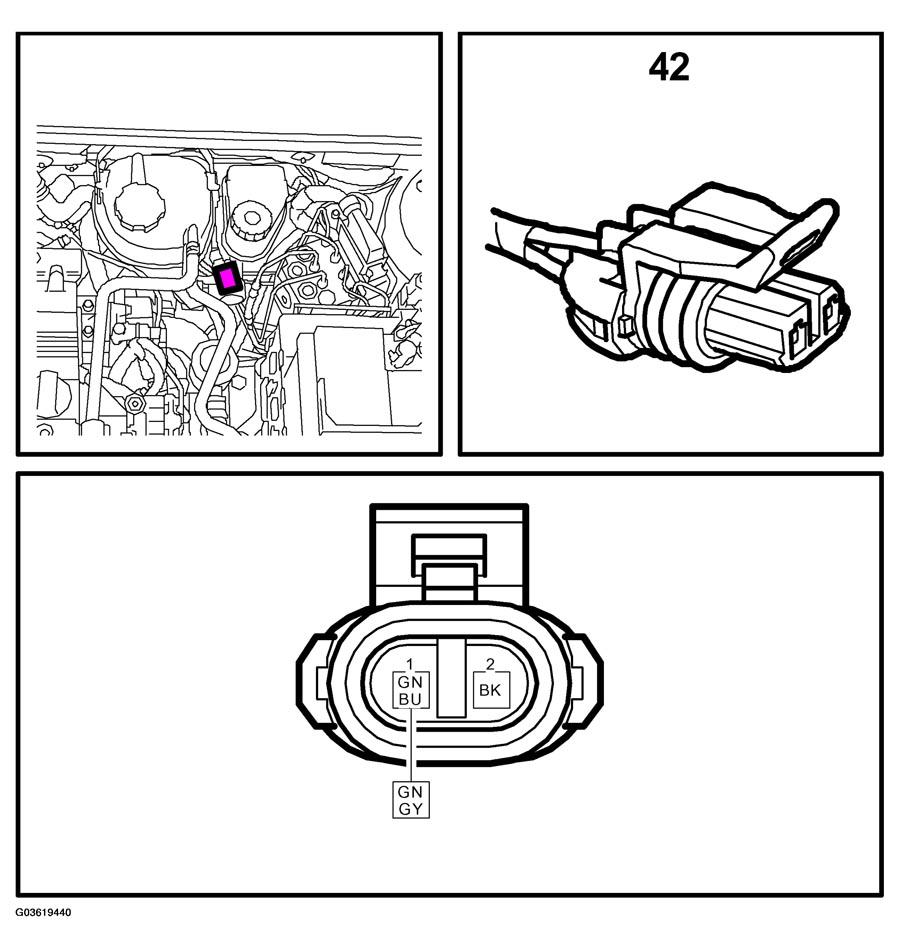

Fig 1: Identifying Brake Fluid Level Switch - Connector Terminal

G03619440

Courtesy of SAAB-SCANIA OF AMERICA, INC.
