To remove

  1. Remove the IDM screws and move the module to the side.

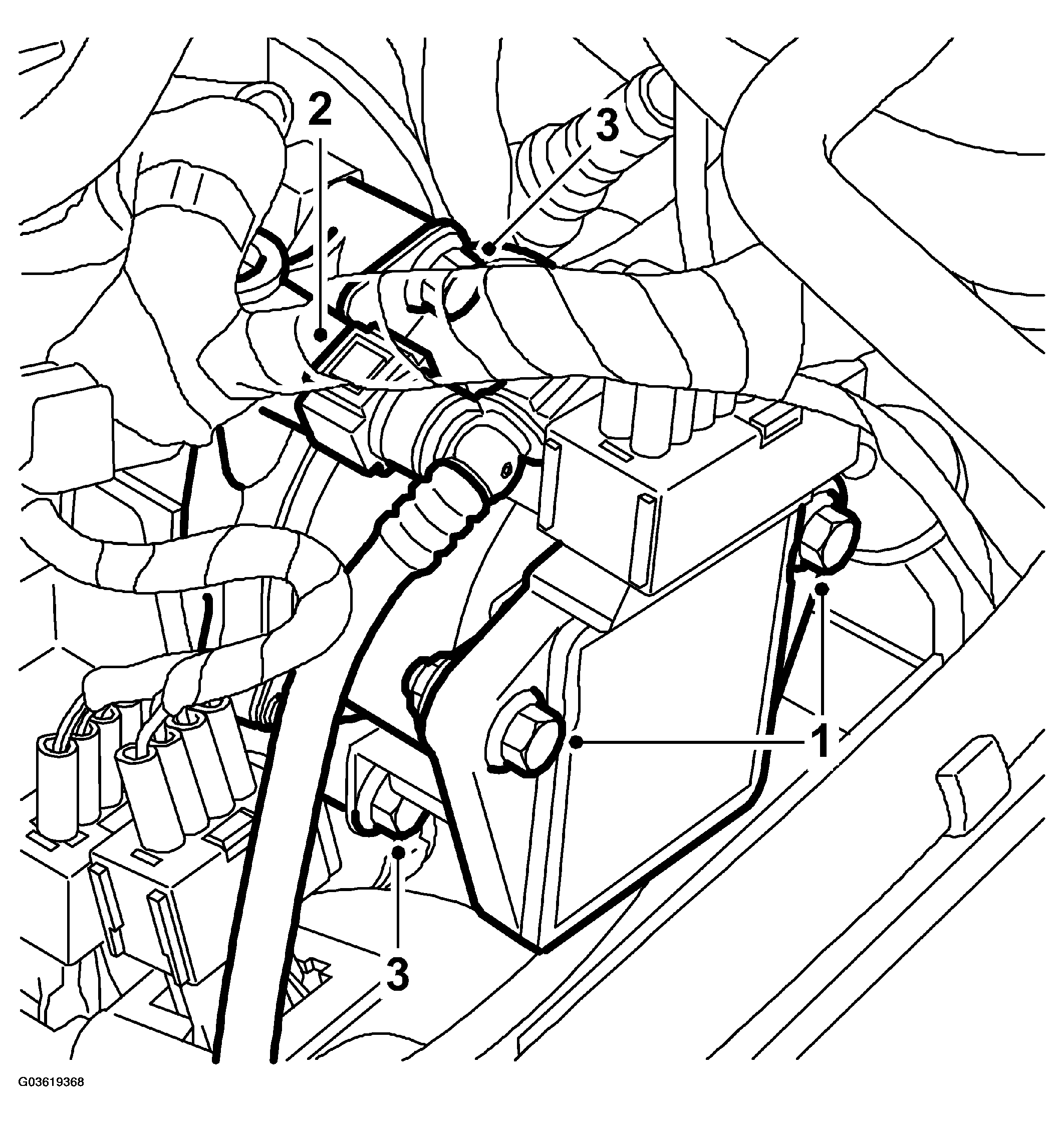

    Fig 1: Illustration For Step 1-3
    G03619368Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the vacuum hose.
  3. Remove the two pump bolts and move the bracket aside.
  4. Remove the pump. Clean up any excess engine oil with a rag.
