To remove

  1. Remove the upper engine cover.

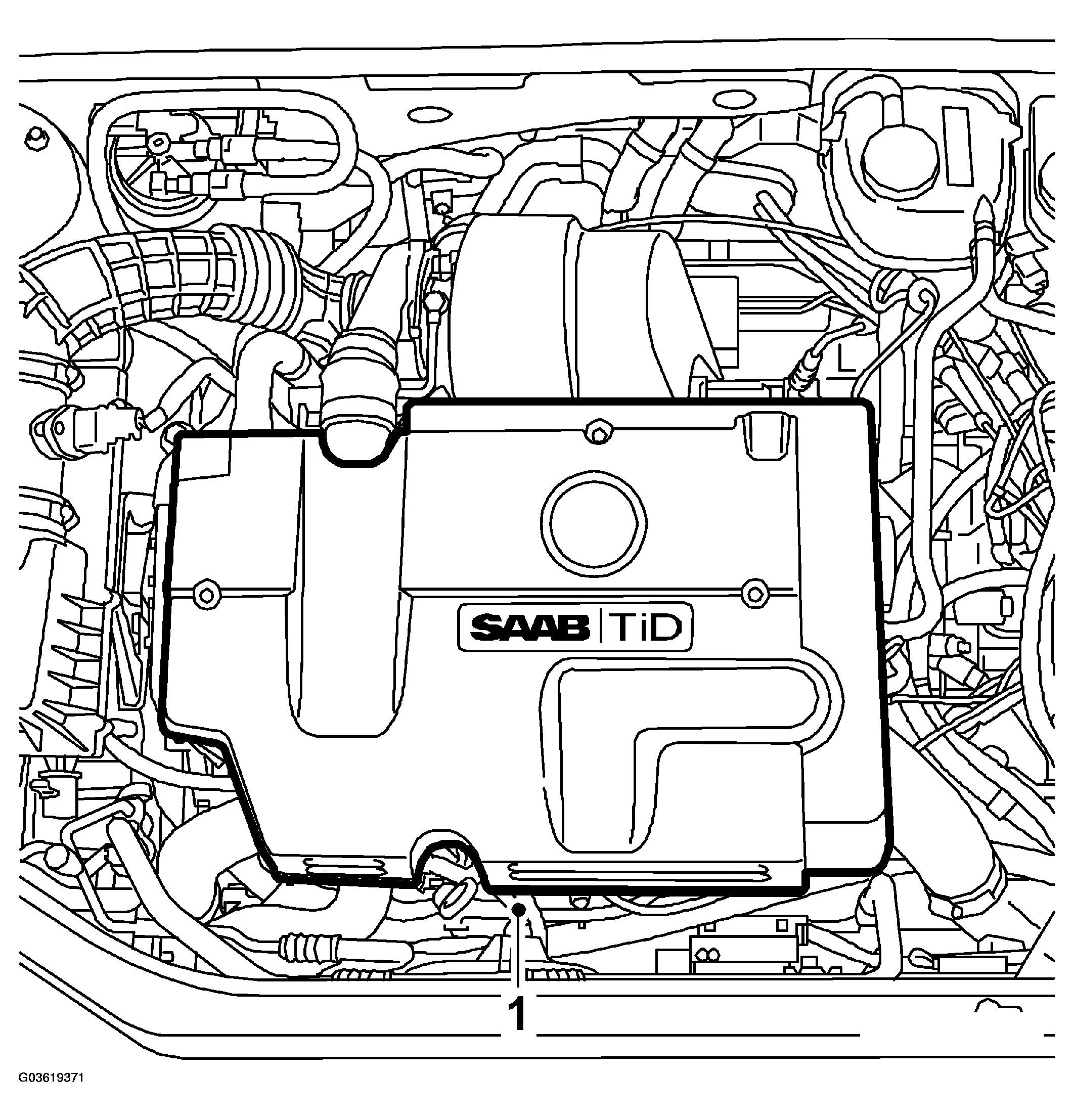

    Fig 1: Illustration For Step 1
    G03619371Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Detach the vacuum hoses from the vacuum pump.

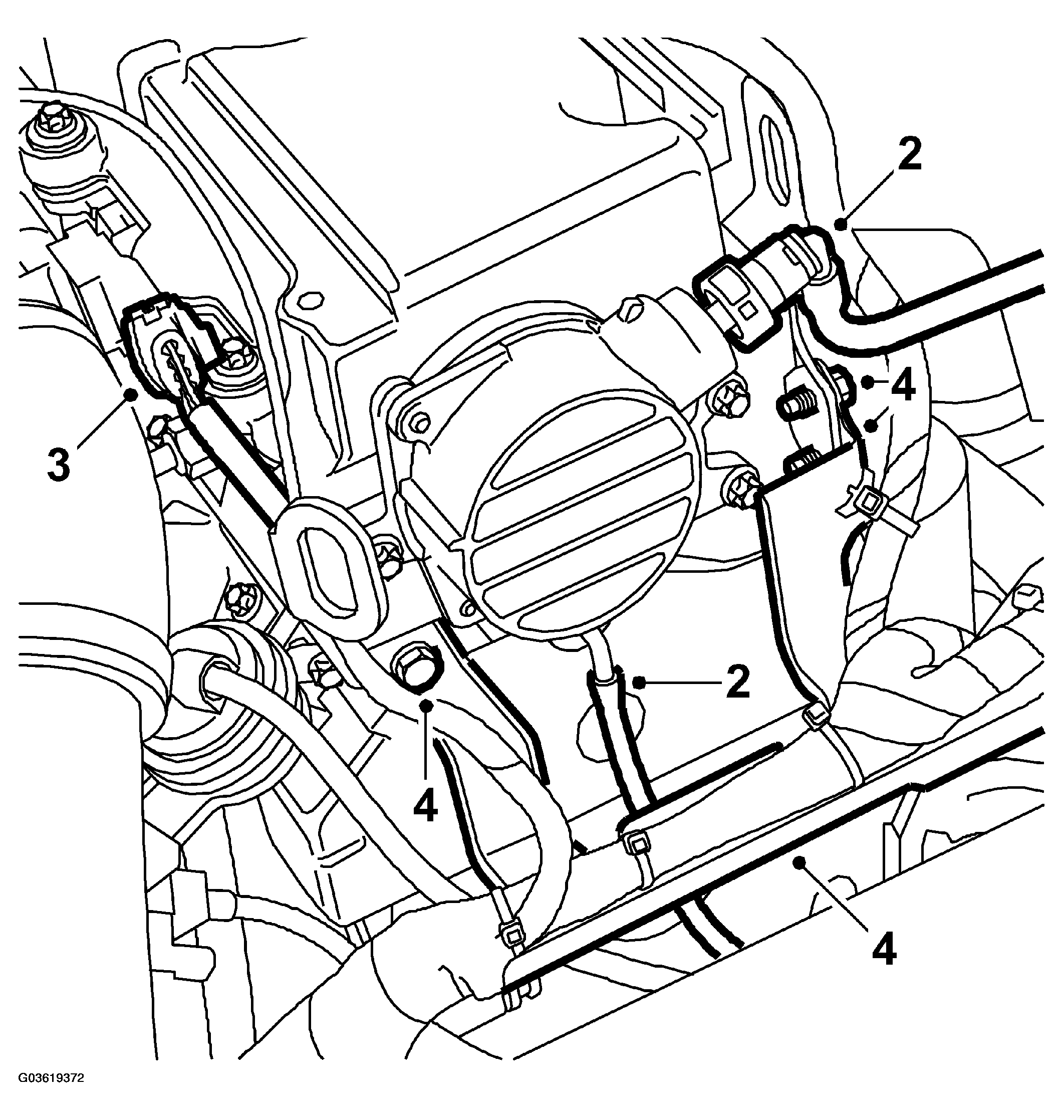

    Fig 2: Illustration For Step 2-4
    G03619372Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the connector to the temperature/pressure sensor.
  4. Undo the cable rail and move to one side.
  5. Remove the four vacuum pump retaining bolts and carefully lift away the vacuum pump with adapter. Have a rag or similar ready to wipe up any spilled oil.

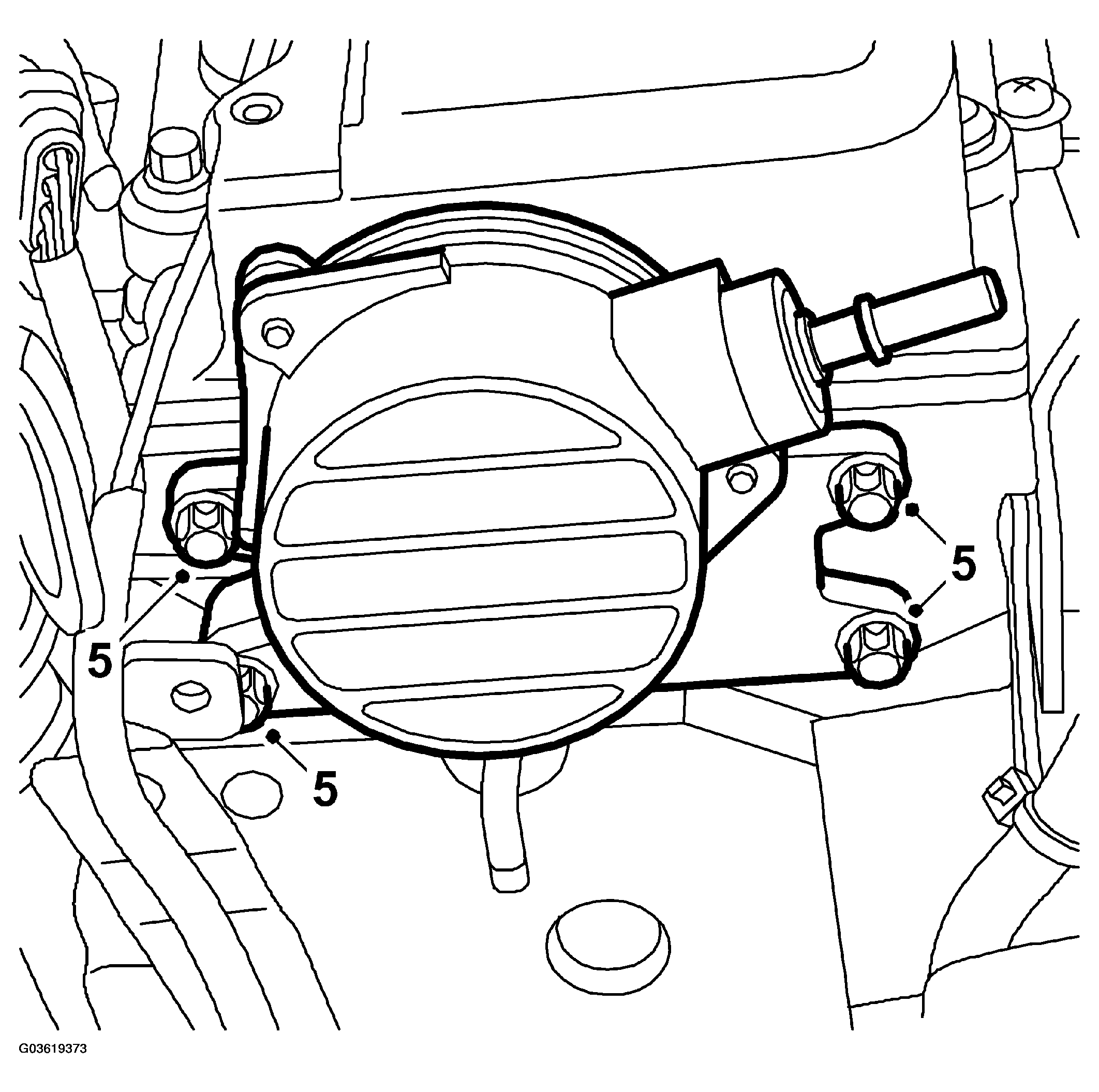

    Fig 3: Illustration For Step 5
    G03619373Courtesy of SAAB-SCANIA OF AMERICA, INC.
