To fit

  1. Clean the sealing surfaces on the vacuum pump and the cylinder head.
  2. Apply new sealant to the vacuum pump and cylinder head, use 90 543 772 Silicone flange sealant, and fit the vacuum pump with adapter.

    Tightening torque 8 Nm (6 lbf ft)

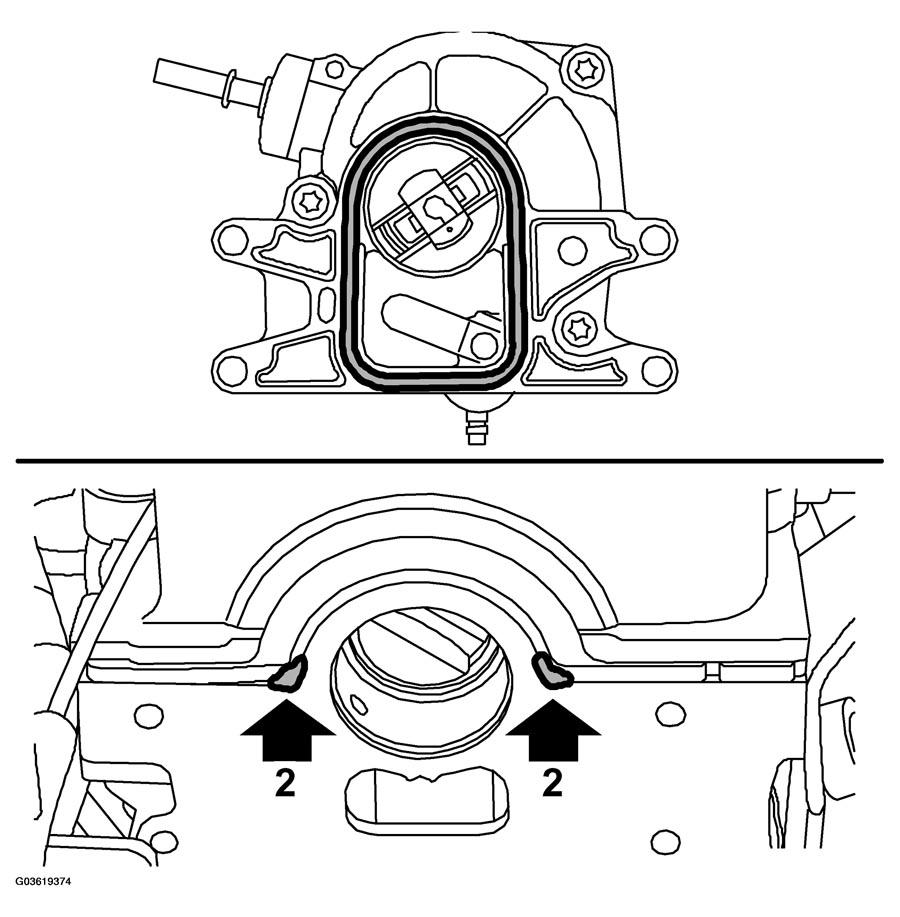

    Fig 1: Illustration For Step 2
    G03619374Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the cable rail with screws

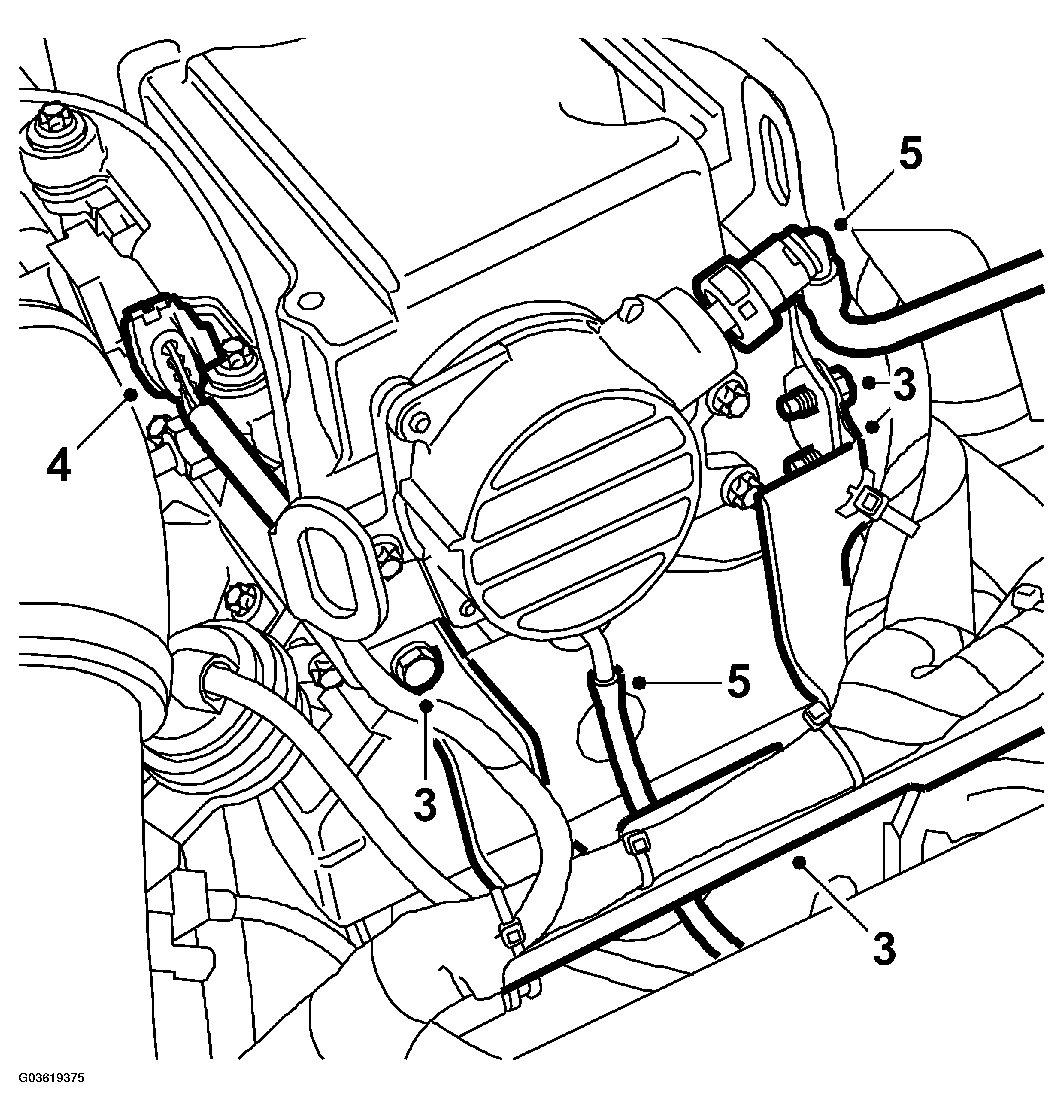

    Fig 2: Illustration For Step 3-5
    G03619375Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Plug in the connector to the pressure/temperature sensor.
  5. Connect the vacuum hoses to the vacuum pump.
  6. Fit the upper engine cover.

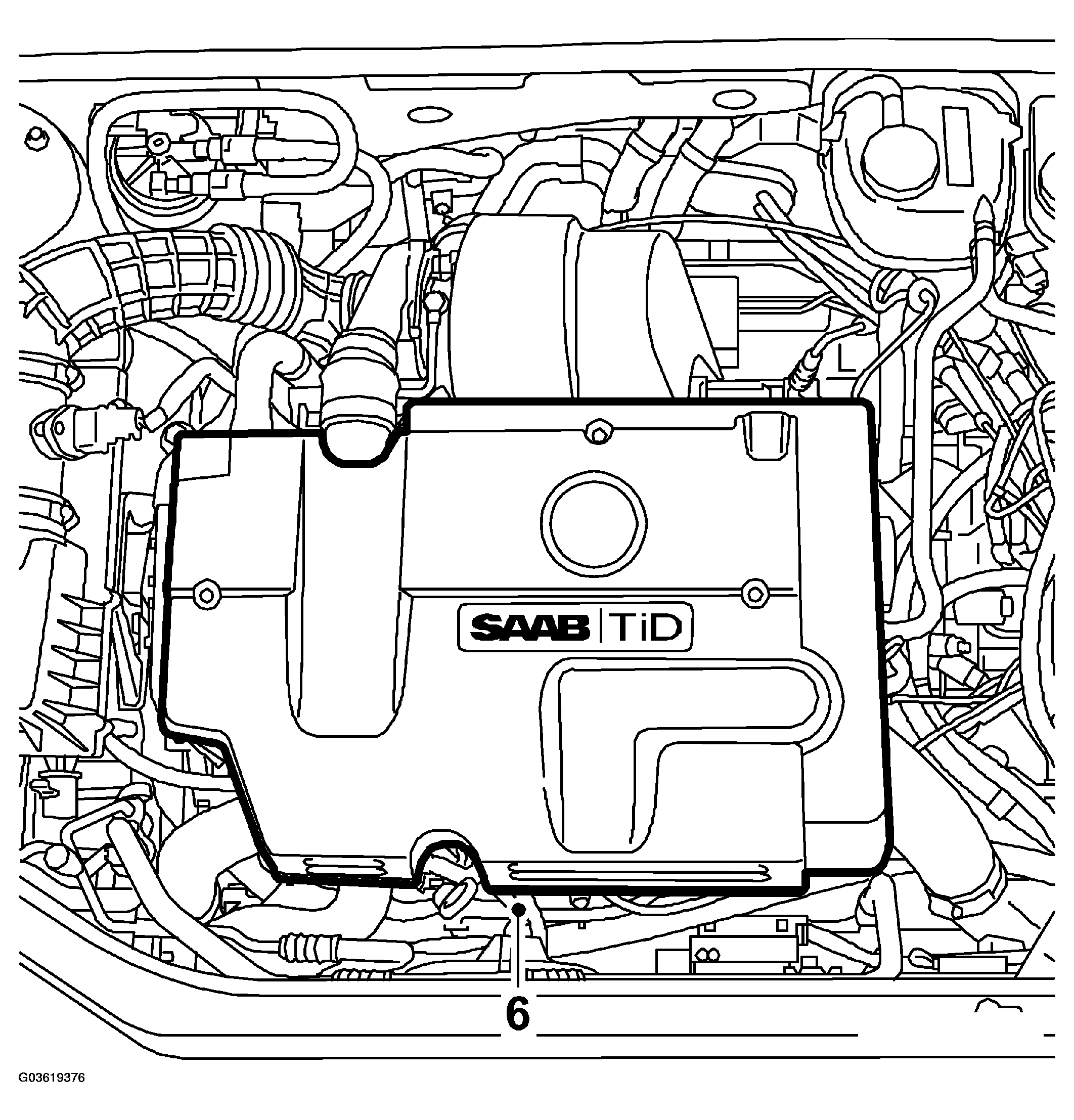

    Fig 3: Illustration For Step 6
    G03619376Courtesy of SAAB-SCANIA OF AMERICA, INC.
