To fit

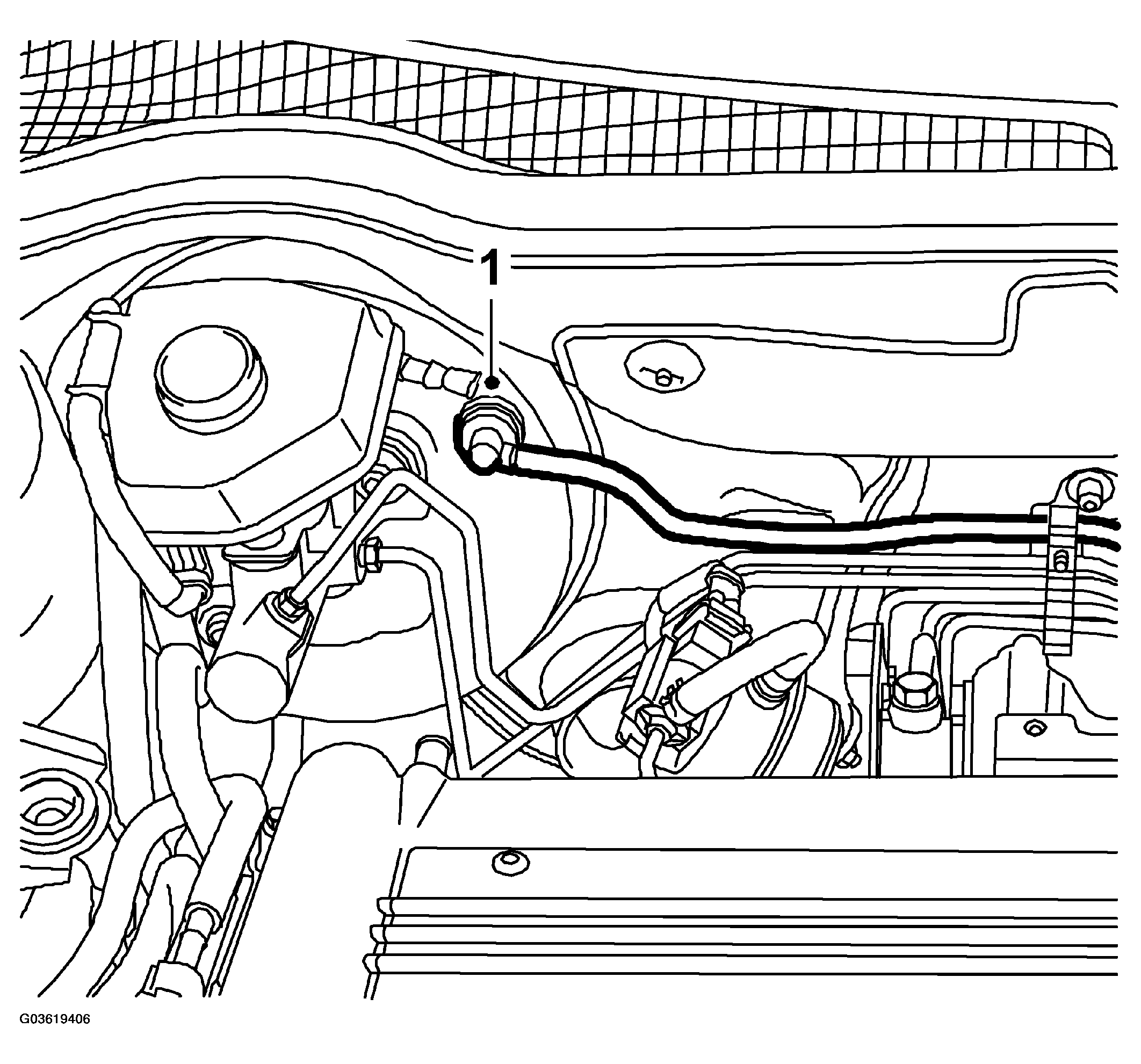

Put in place the pipe and fit it to the brake servo.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.

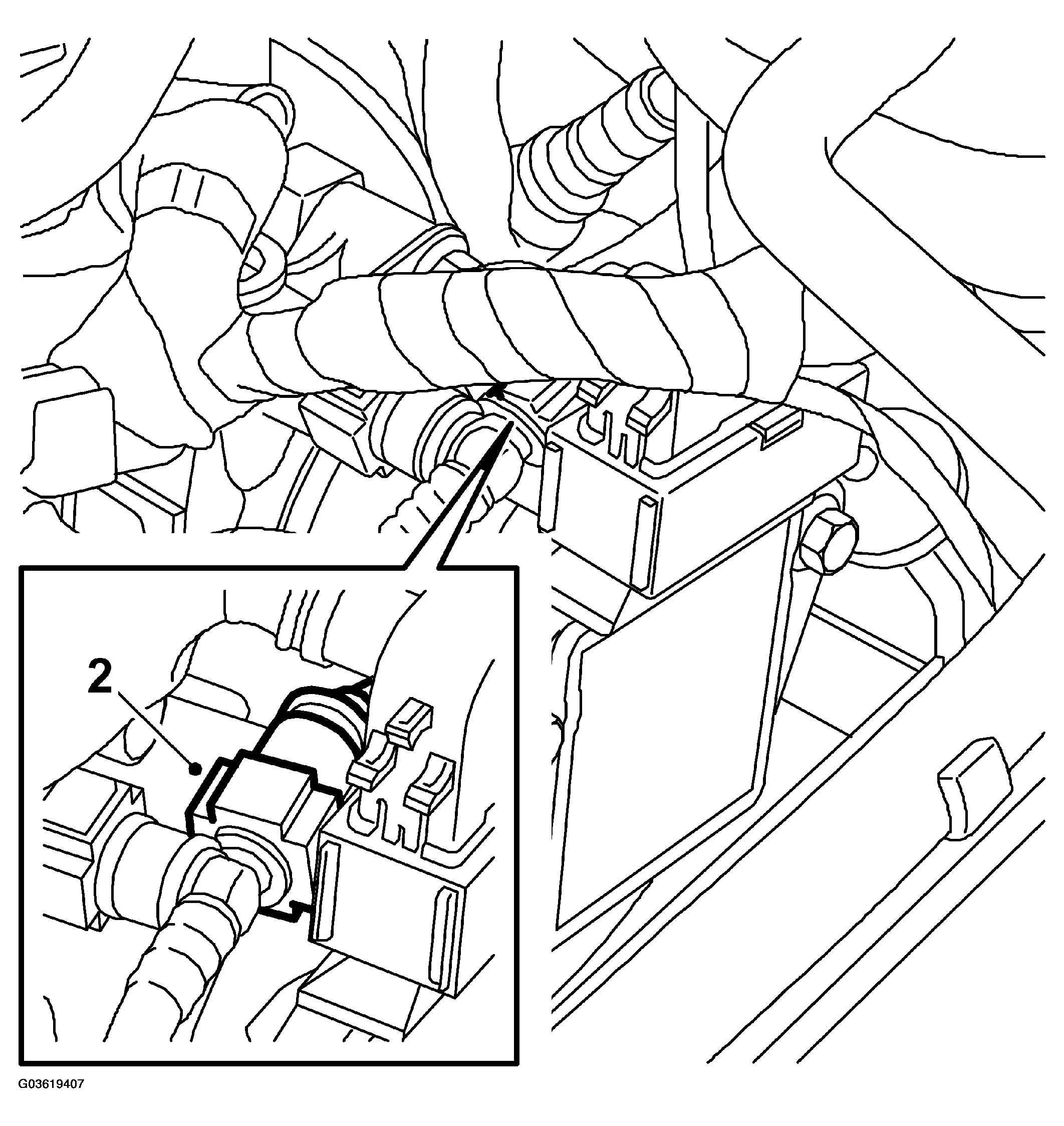

Fit the pipe to the T-nipple on the vacuum pump.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

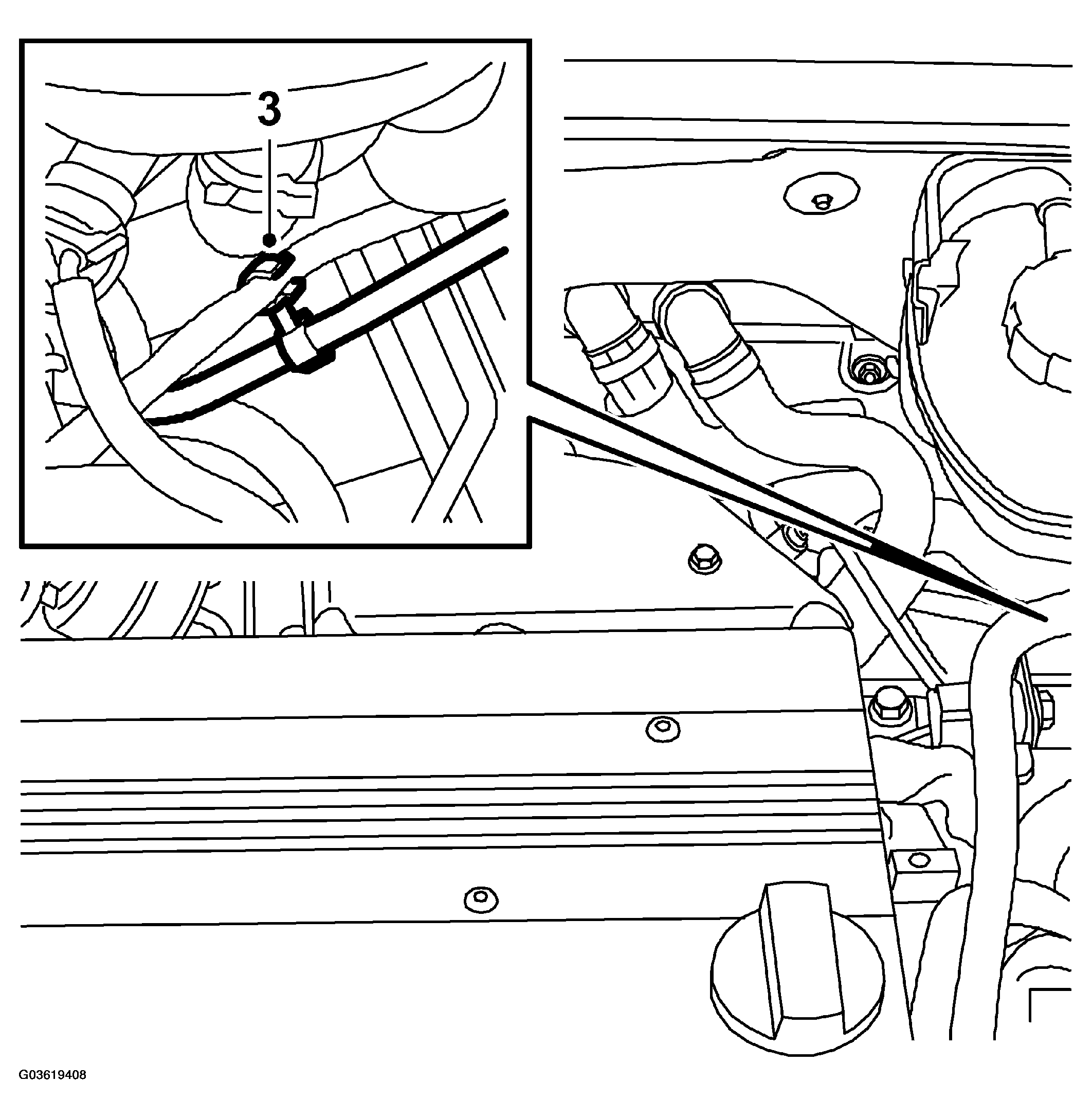

Aut: Fit the gear cable clips.

Fig 3: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.

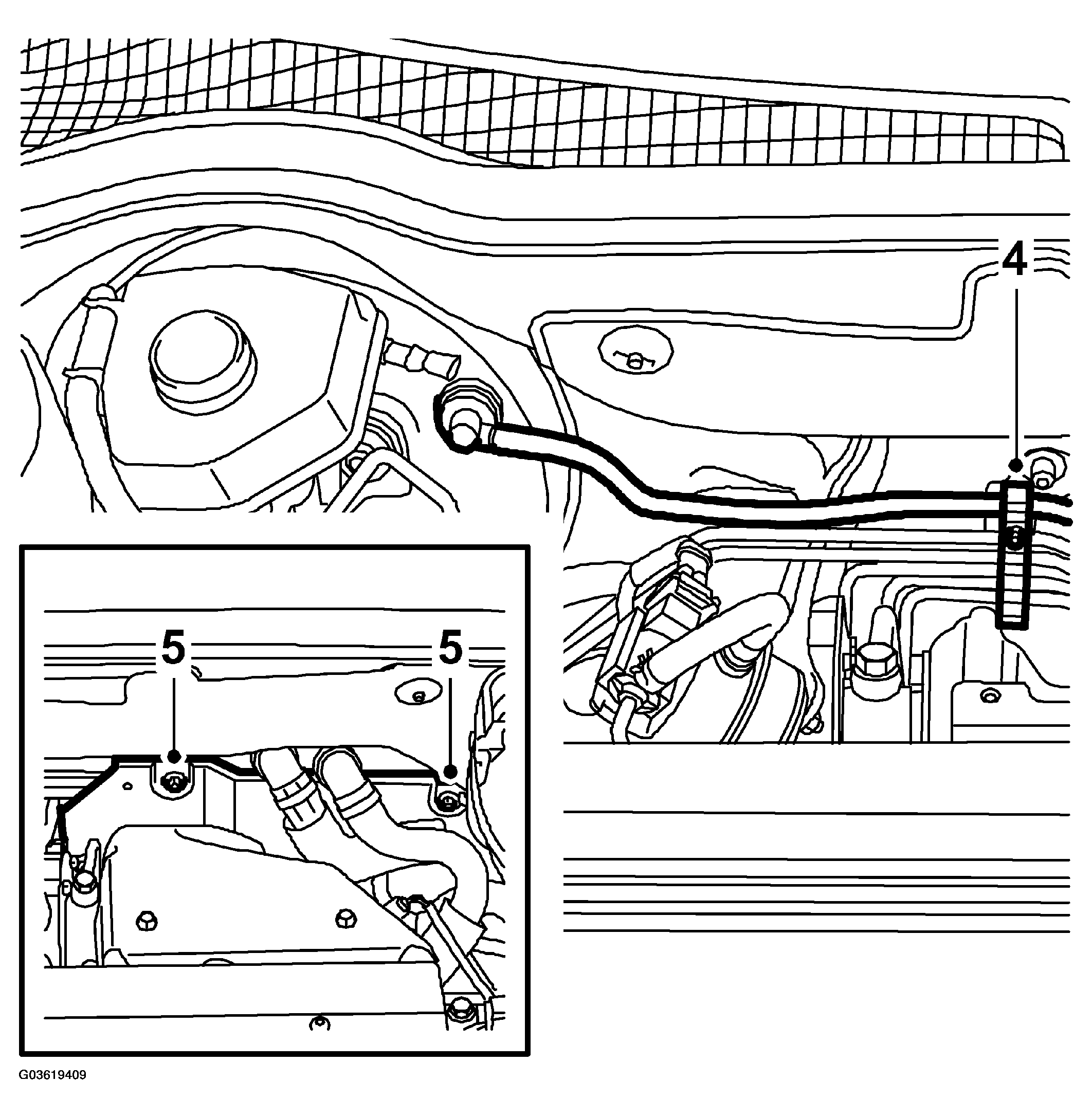

Fit the vacuum pipe to the clips on the bulkhead wall.

Fig 4: Illustration For Step 4-5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the heat shield
Connect an exhaust extractor.
Start the engine and check the operation of the brake servo.
