To remove

WARNING: The turbocharger can be hot and great care must be observed.
  1. Pump the brake pedal until the vacuum is removed from the brake servo.
  2. Remove the pipe from the T-nipple on the vacuum pipe.

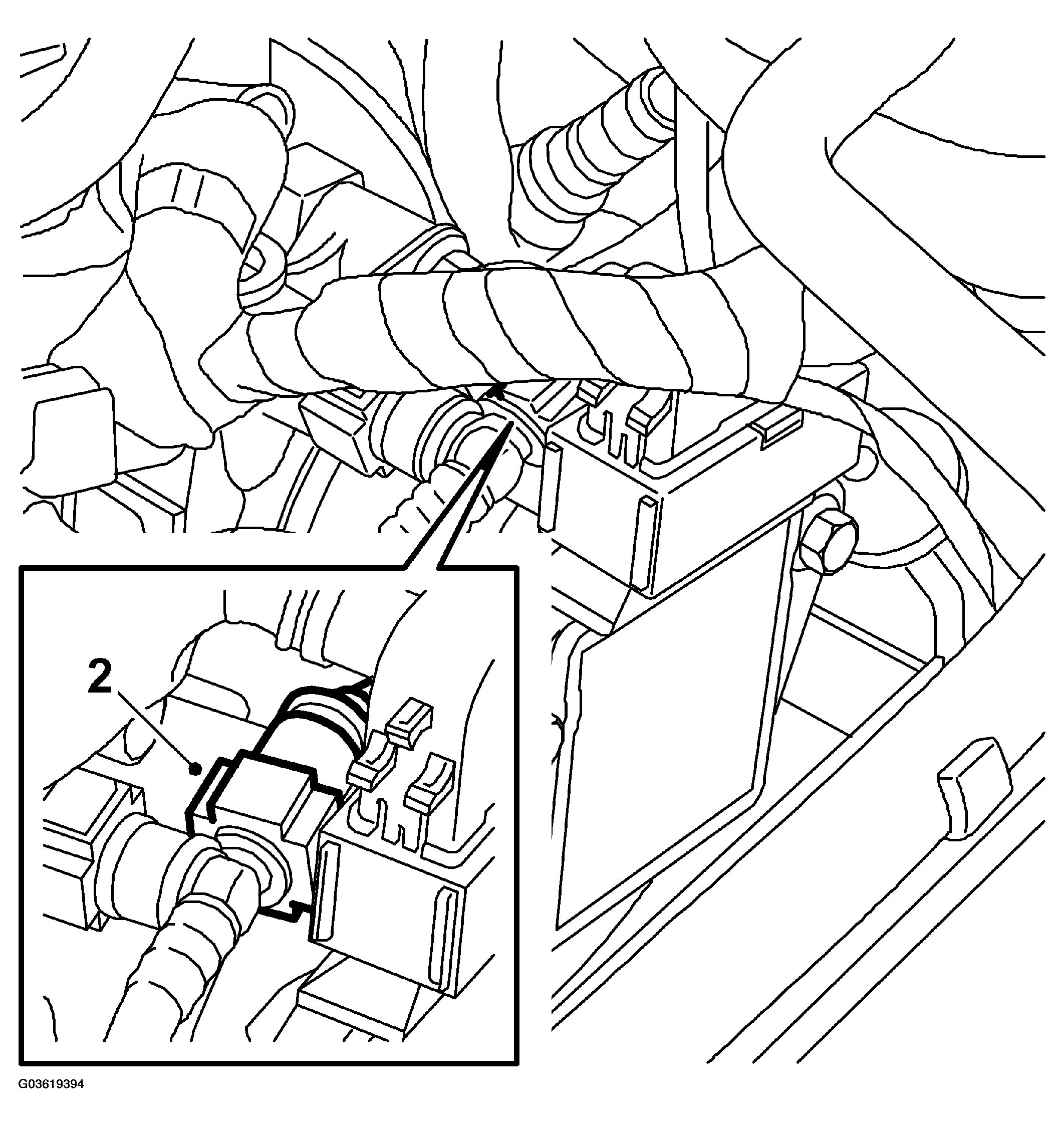

    Fig 1: Illustration For Step 2
    G03619394Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Aut:  Remove the gear cable clips from the pipe.

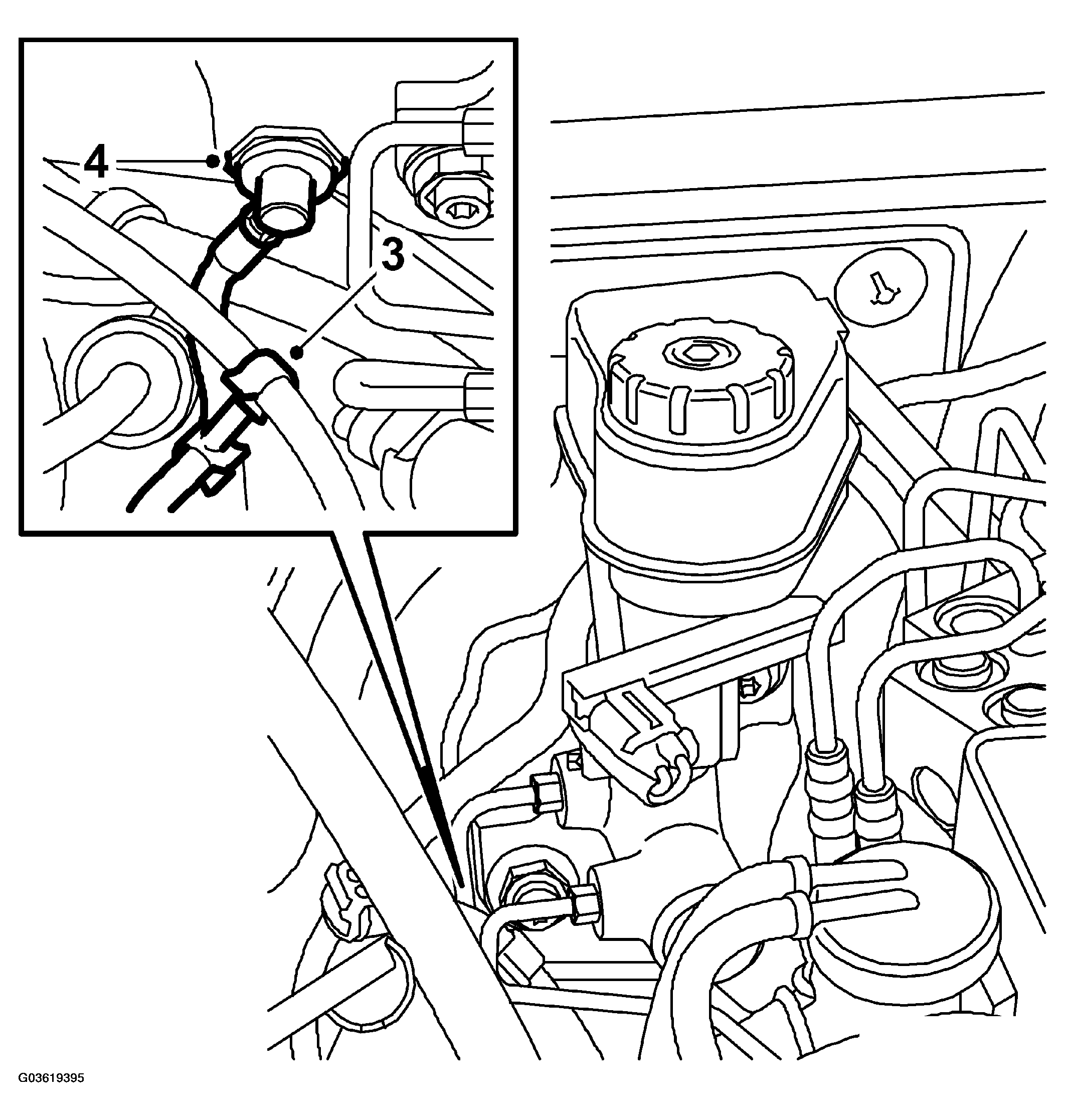

    Fig 2: Illustration For Step 3-4
    G03619395Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the pipe from the brake servo.
