To fit

  1. Fit the pipe to the brake servo.

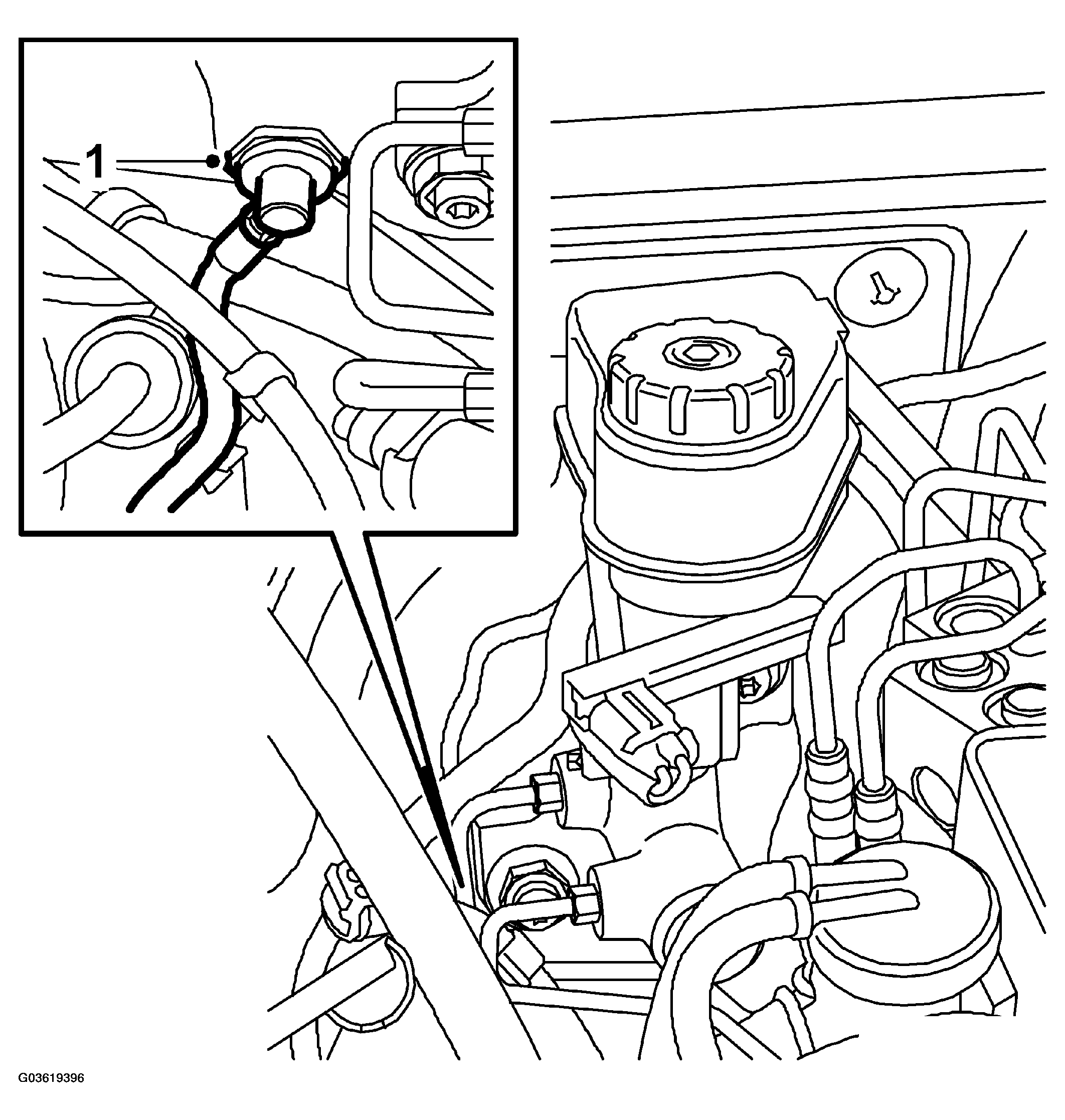

    Fig 1: Illustration For Step 1
    G03619396Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the pipe to the T-nipple on the vacuum pump.

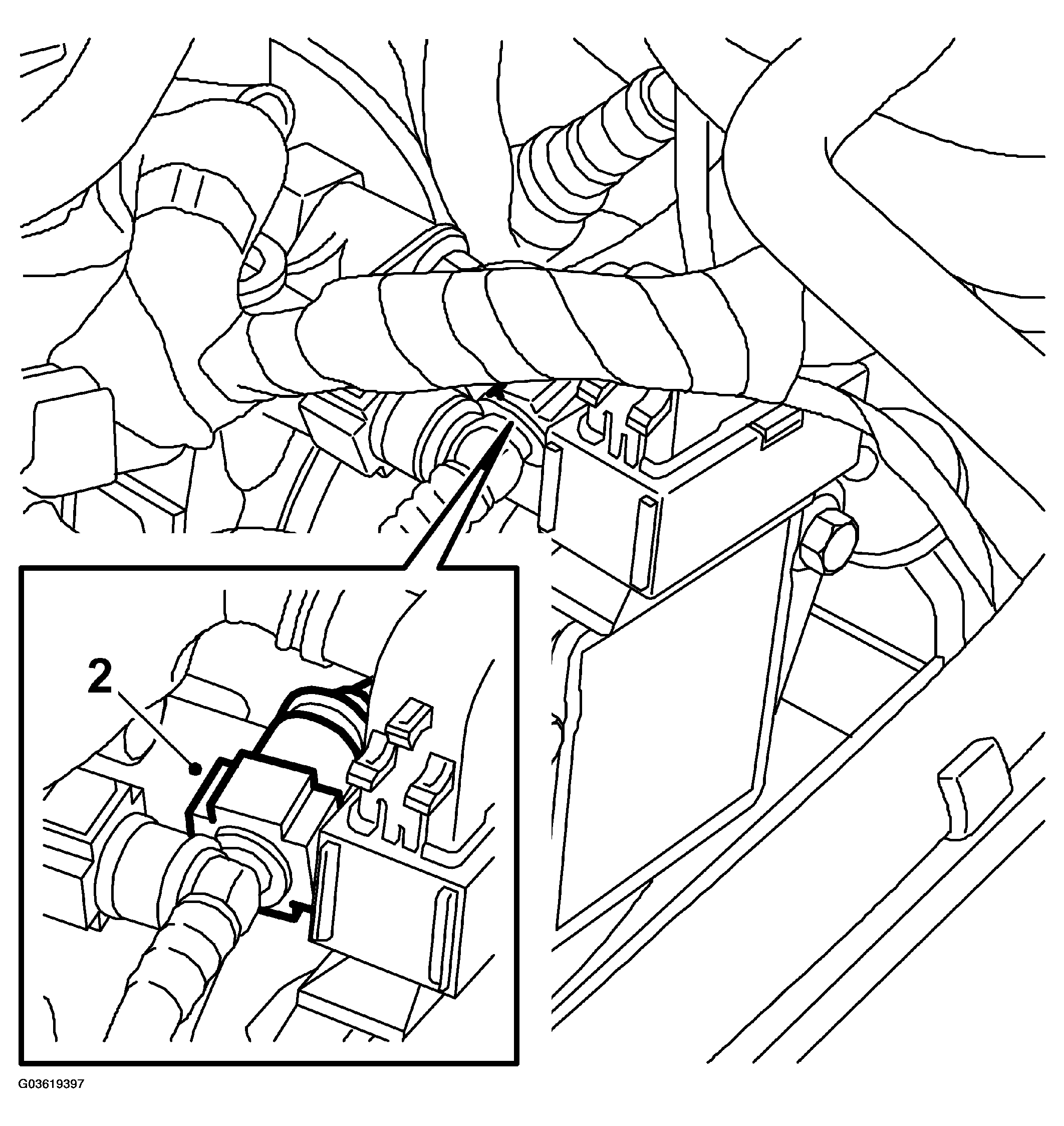

    Fig 2: Illustration For Step 2
    G03619397Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Aut:  Fit the gear cable clips.

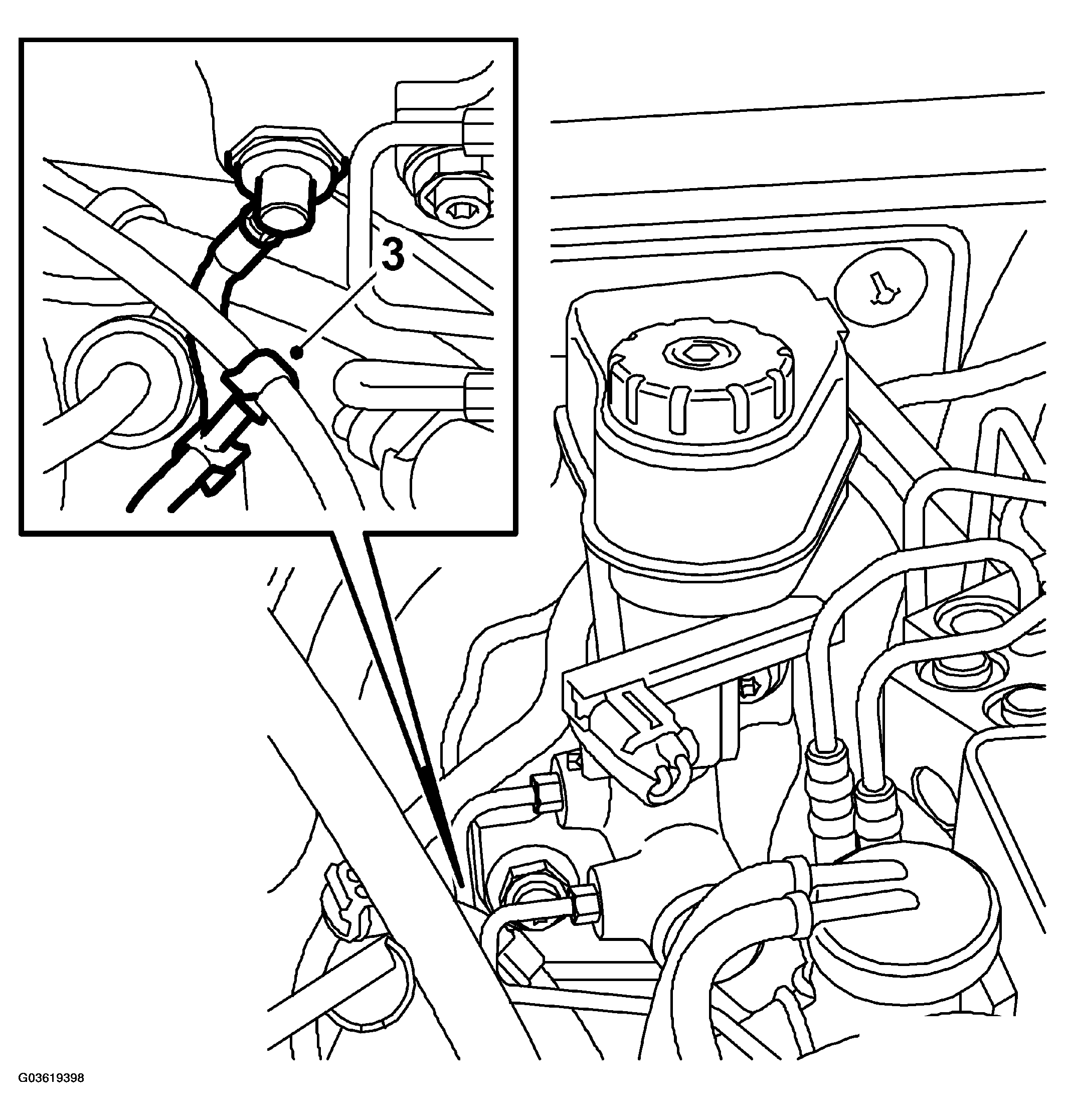

    Fig 3: Illustration For Step 3
    G03619398Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Connect an exhaust extractor.
  5. Start the engine and check the operation of the brake servo.
