Transport covers, brake discs

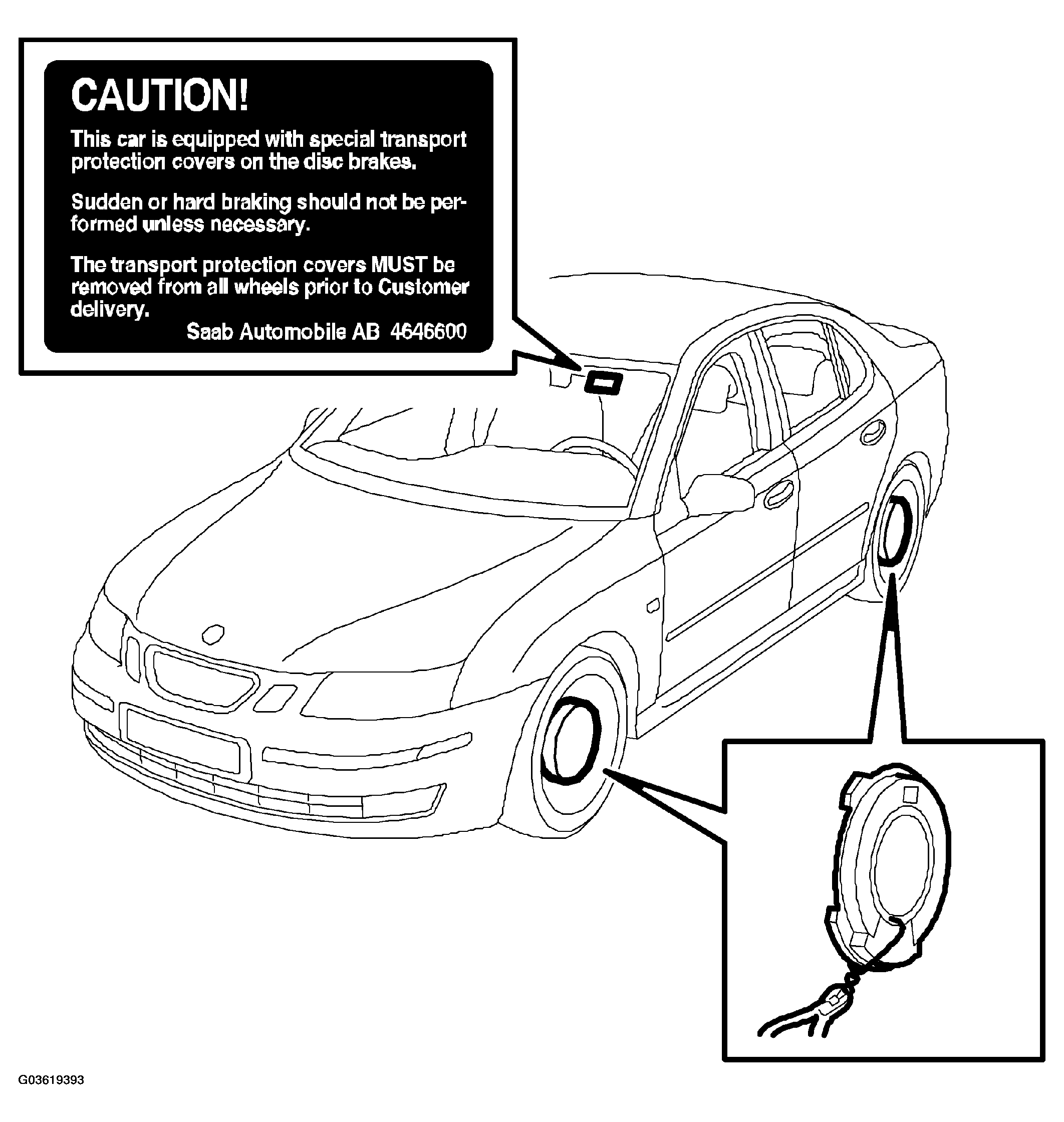

Fig 1: Identifying Transport Covers, Brake Discs
G03619393Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Separate the brake disc transport covers by pulling the wire from the outside through a hole in the wheel using pliers.
  2. Remove the cover from the inside of the wheel without removing the wheel.
  3. Remove the label from the windscreen.
