To remove

  1. Remove Steering wheel member.
  2. Remove brake pedal link bolt.

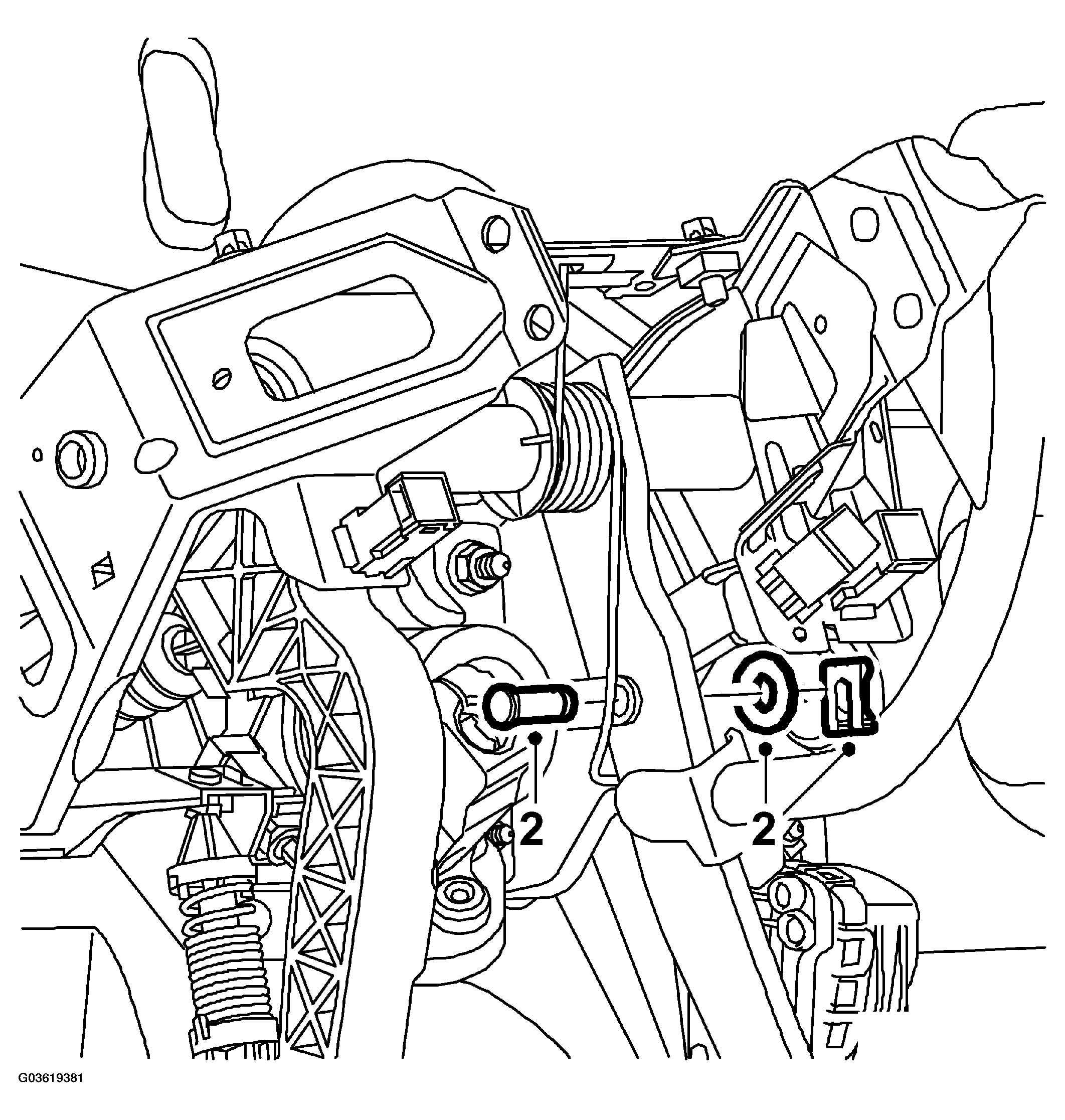

    Fig 1: Illustration For Step 2
    G03619381Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Undo the brake servo bolts.

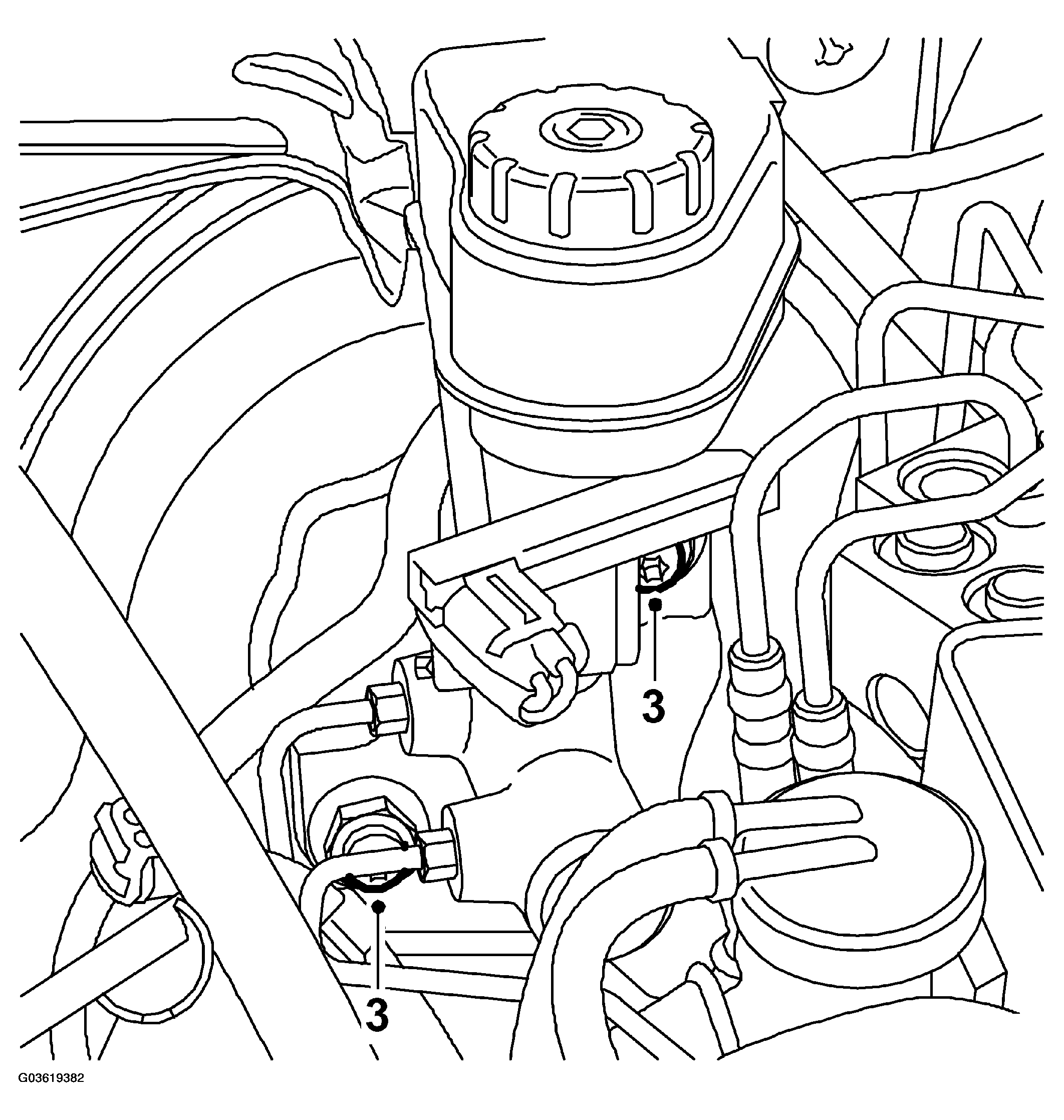

    Fig 2: Illustration For Step 3
    G03619382Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Manual gearbox:  Remove the clutch master cylinder. Detach the pushrod from the clutch pedal. Use a pair of nose pliers with bent jaws.

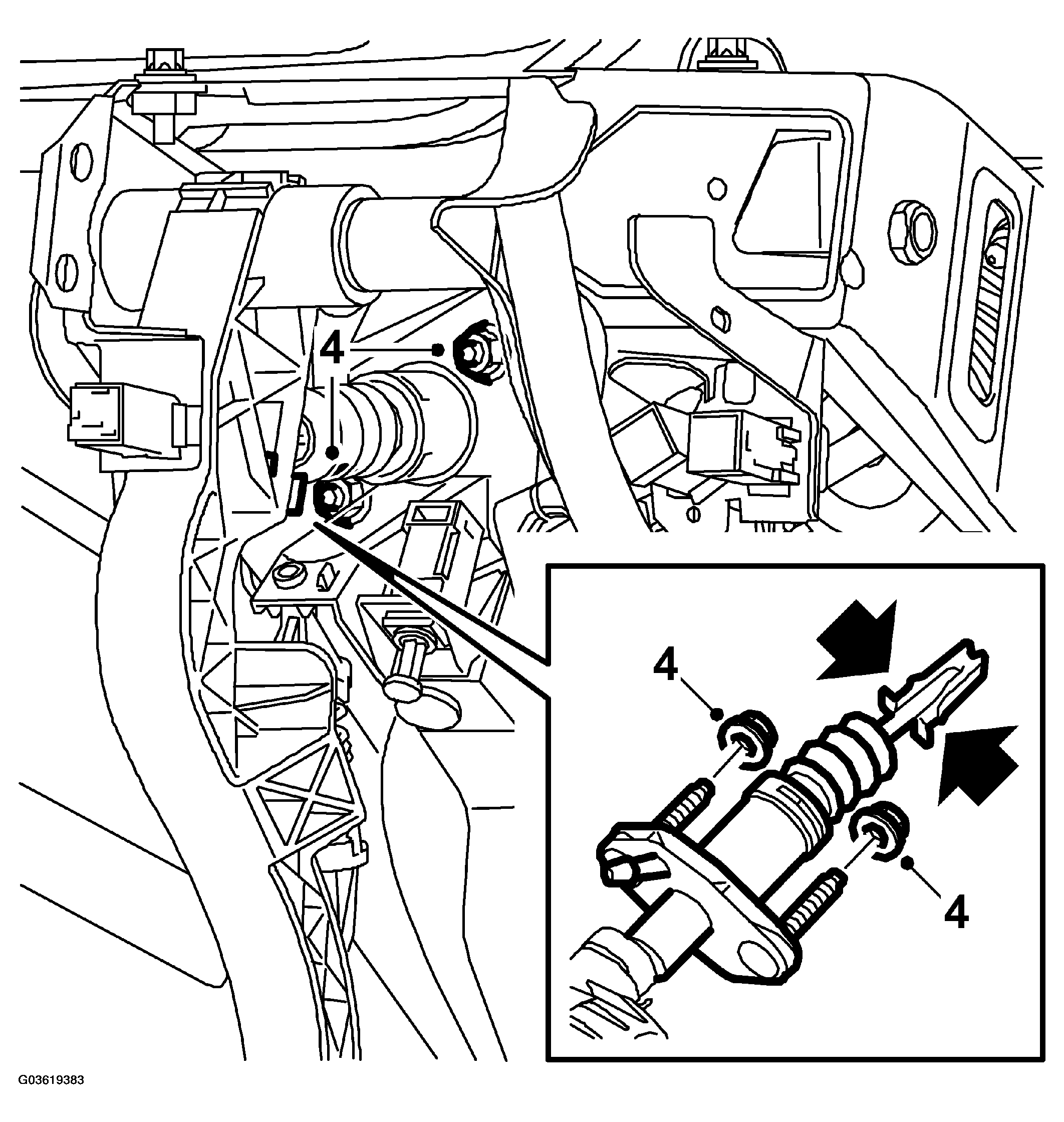

    Fig 3: Illustration For Step 4
    G03619383Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the pedal bracket.

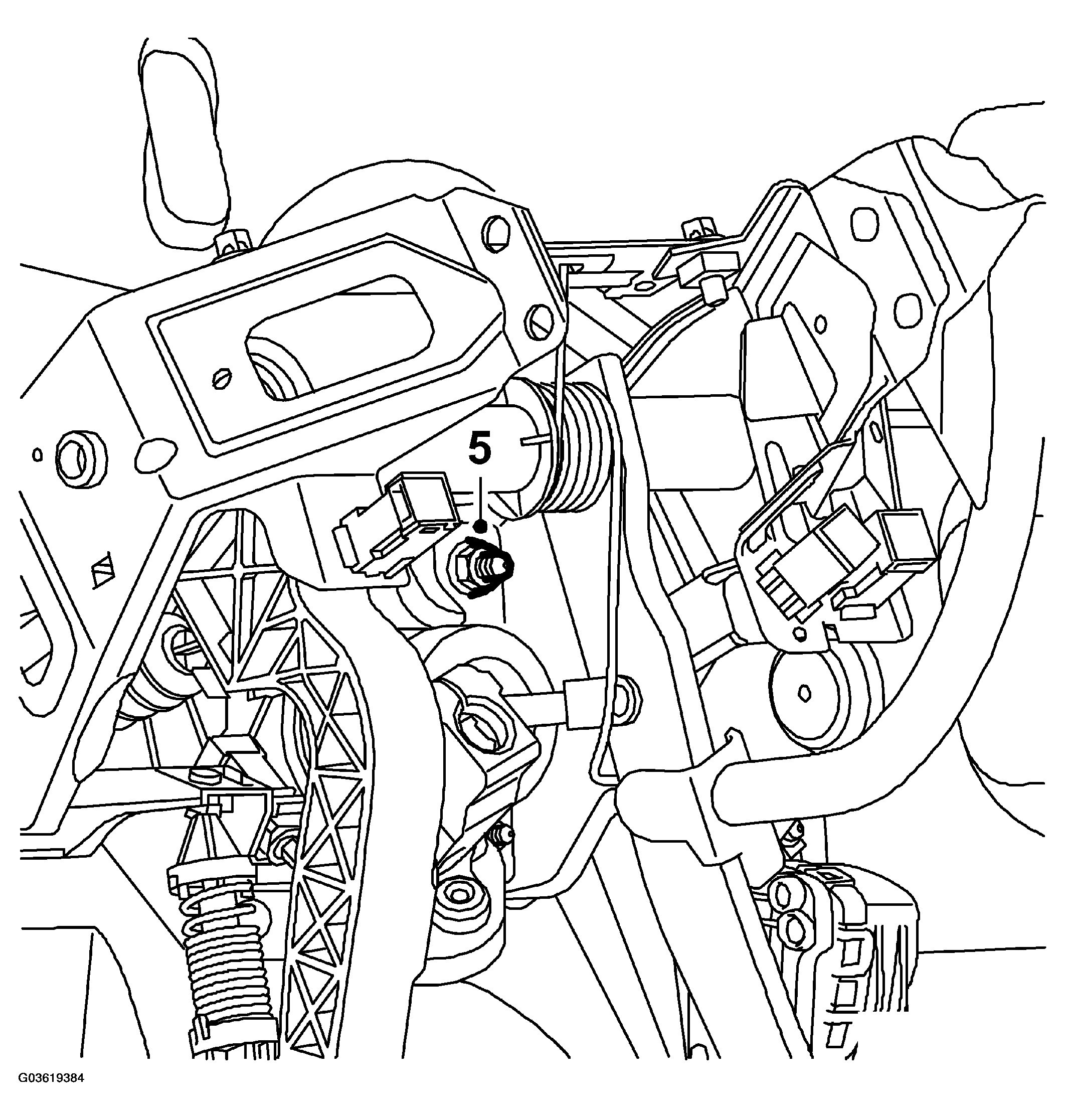

    Fig 4: Illustration For Step 5
    G03619384Courtesy of SAAB-SCANIA OF AMERICA, INC.
