To fit

NOTE: When changing the pedal bracket, the following parts must be removed from the spare part:

Brake pedal pushrod.
Plate with accelerator pedal that the pedal bracket is fastened to.
Manual gearbox : Clutch cylinder

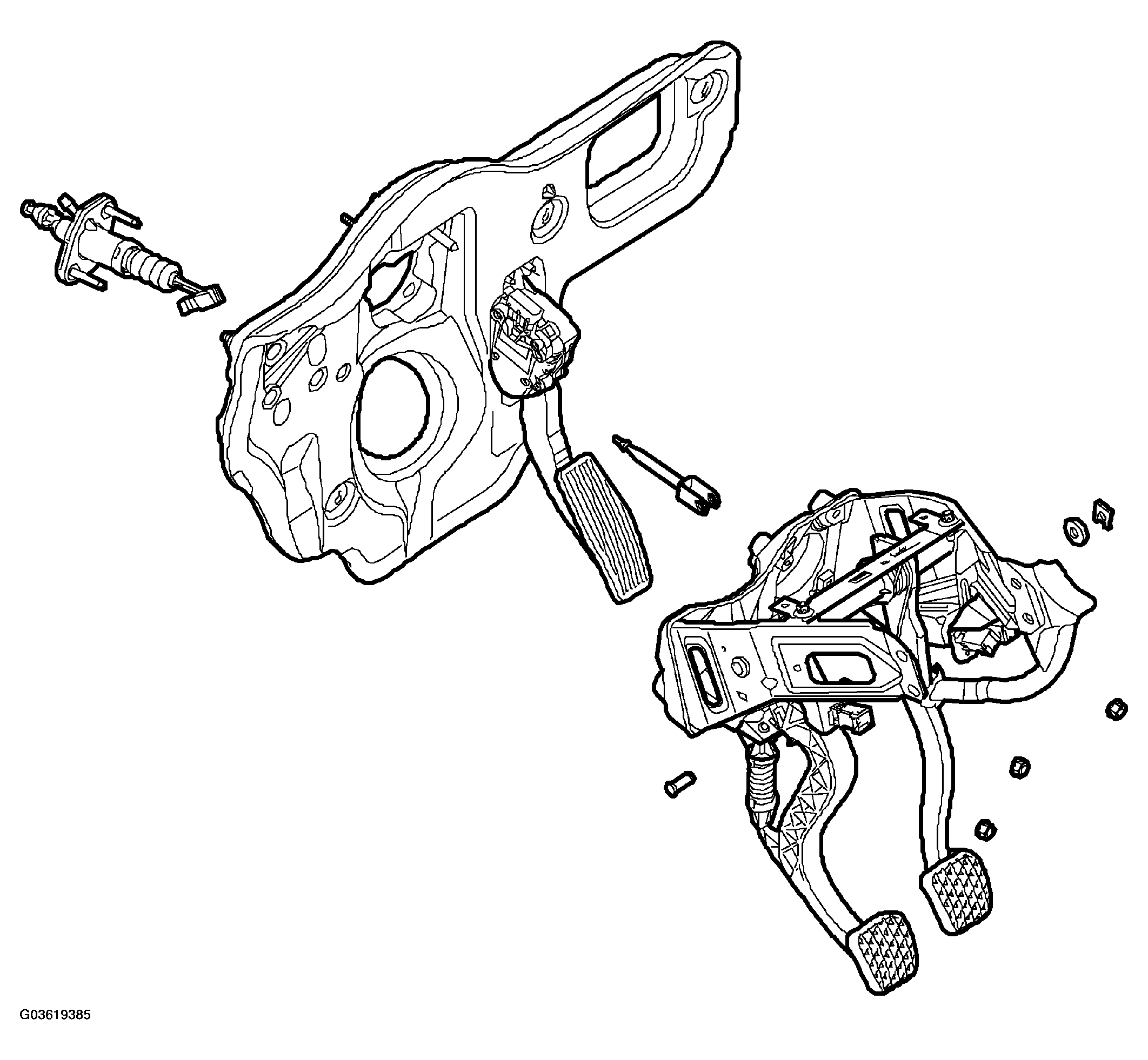

Fig 1: Identifying Plate With Accelerator Pedal
Courtesy of SAAB-SCANIA OF AMERICA, INC.

Fit the pedal bracket to the bulkhead.
Tightening torque 20 Nm (14 lbf ft)

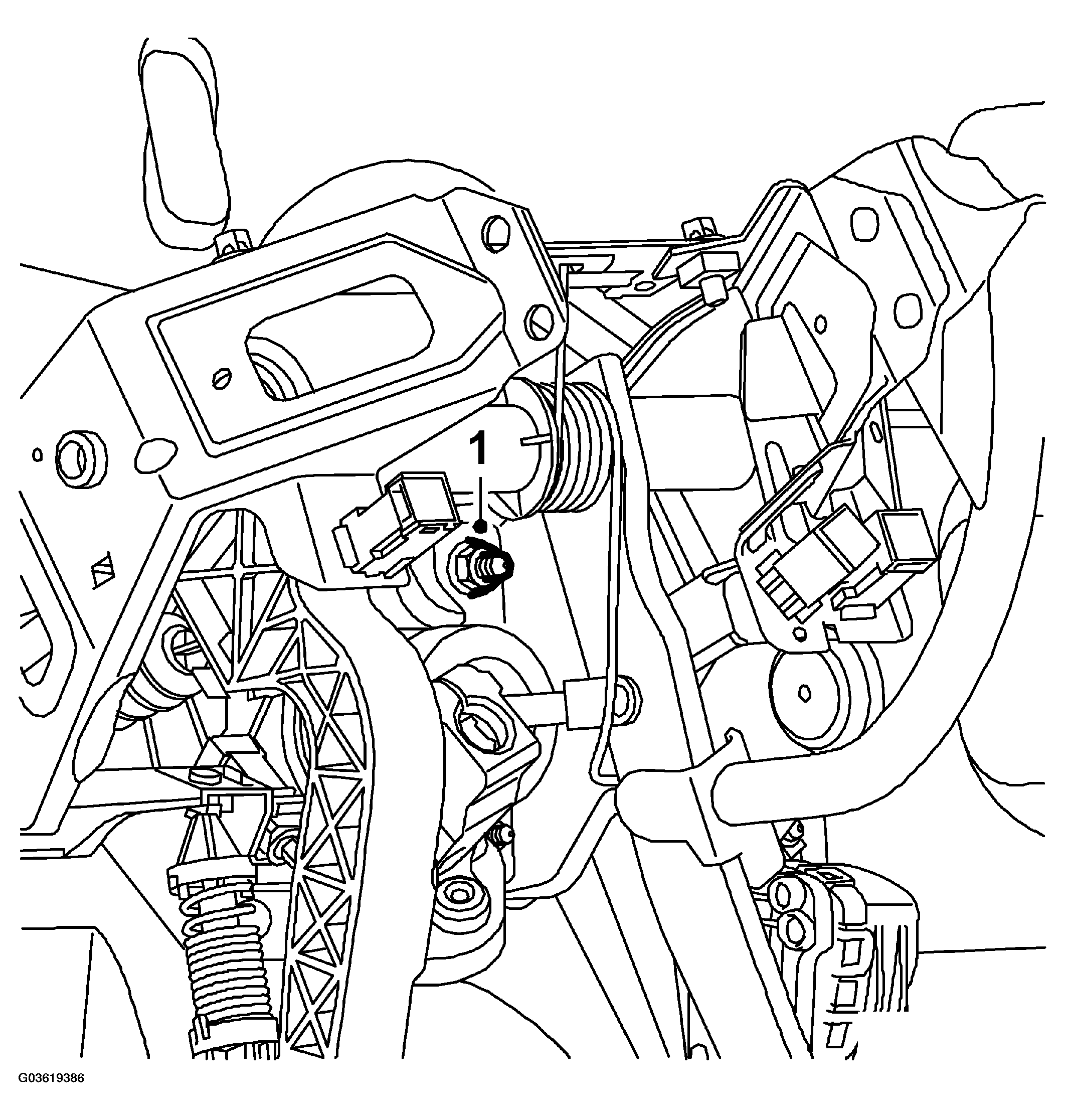

Fig 2: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Manual gearbox: Connect the pushrod to the clutch pedal. Fit the nuts to the clutch master cylinder. Pull out the adjusting rod from the self-adjusting cruise control switch and press it back with the clutch pedal for correct adjustment.
Tightening torque 20 Nm (14 lbf ft)

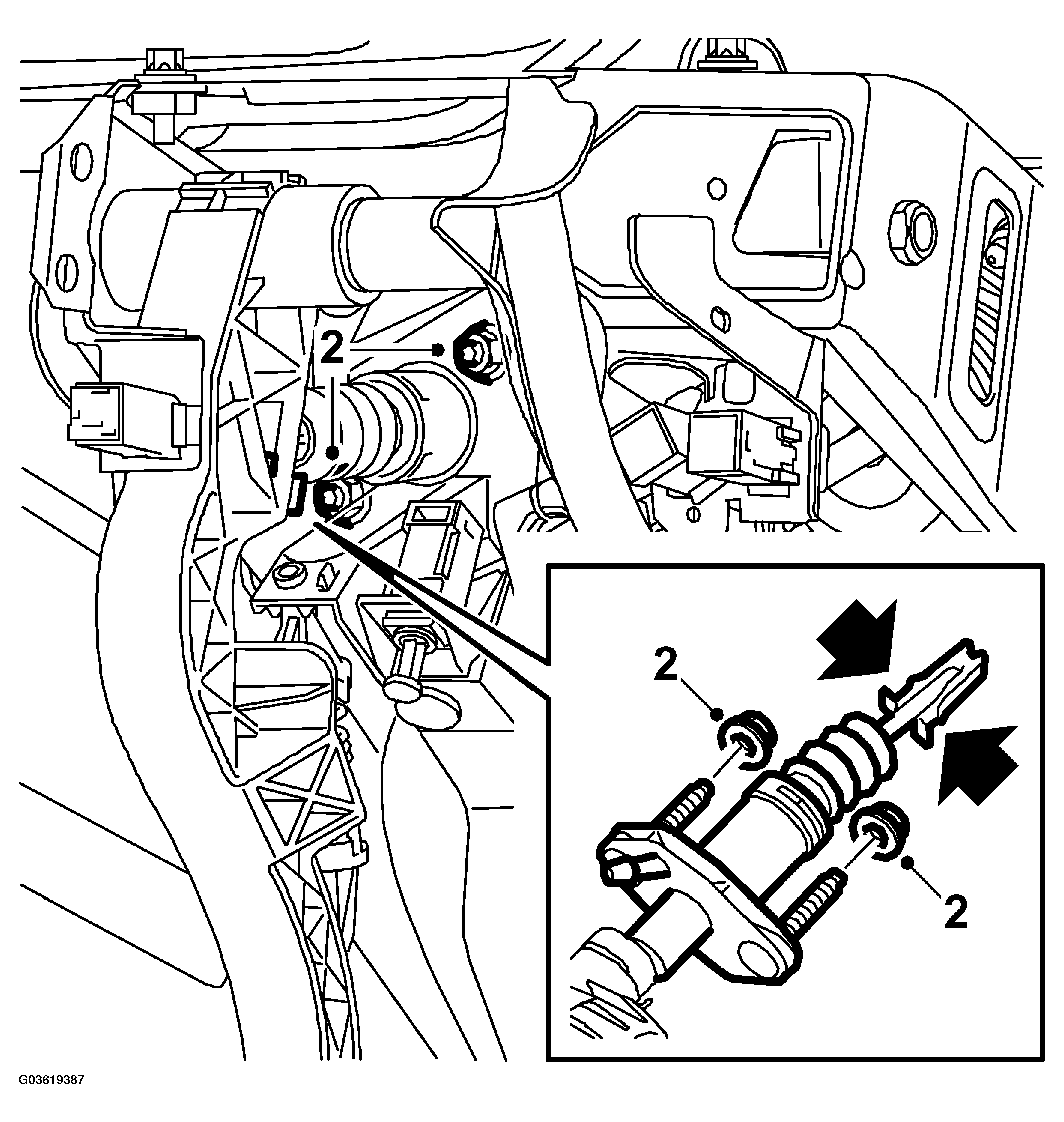

Fig 3: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the brake servo bolts.
Tightening torque 20 Nm (14 lbf ft)

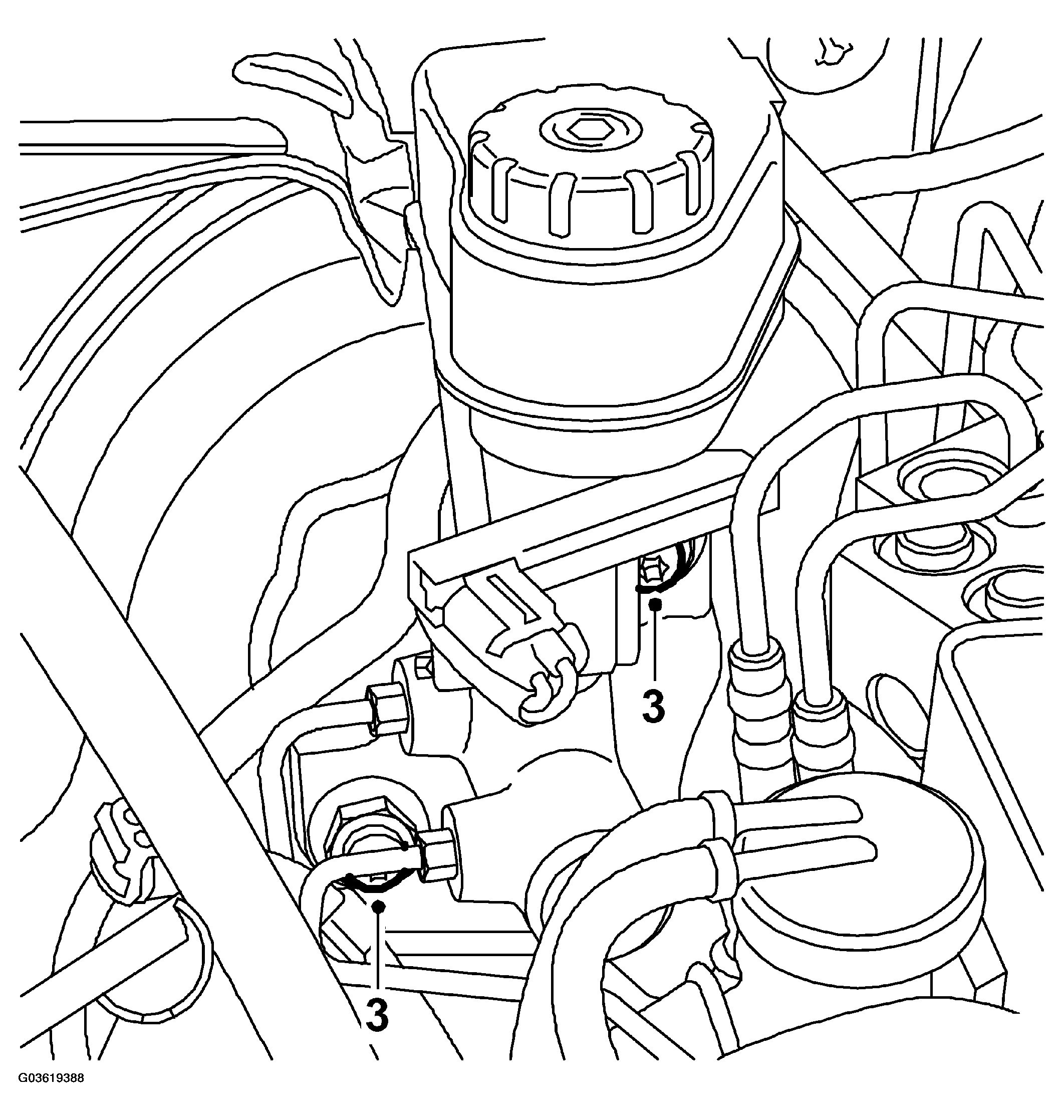

Fig 4: Illustration For Step 3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the brake pedal link bolt.

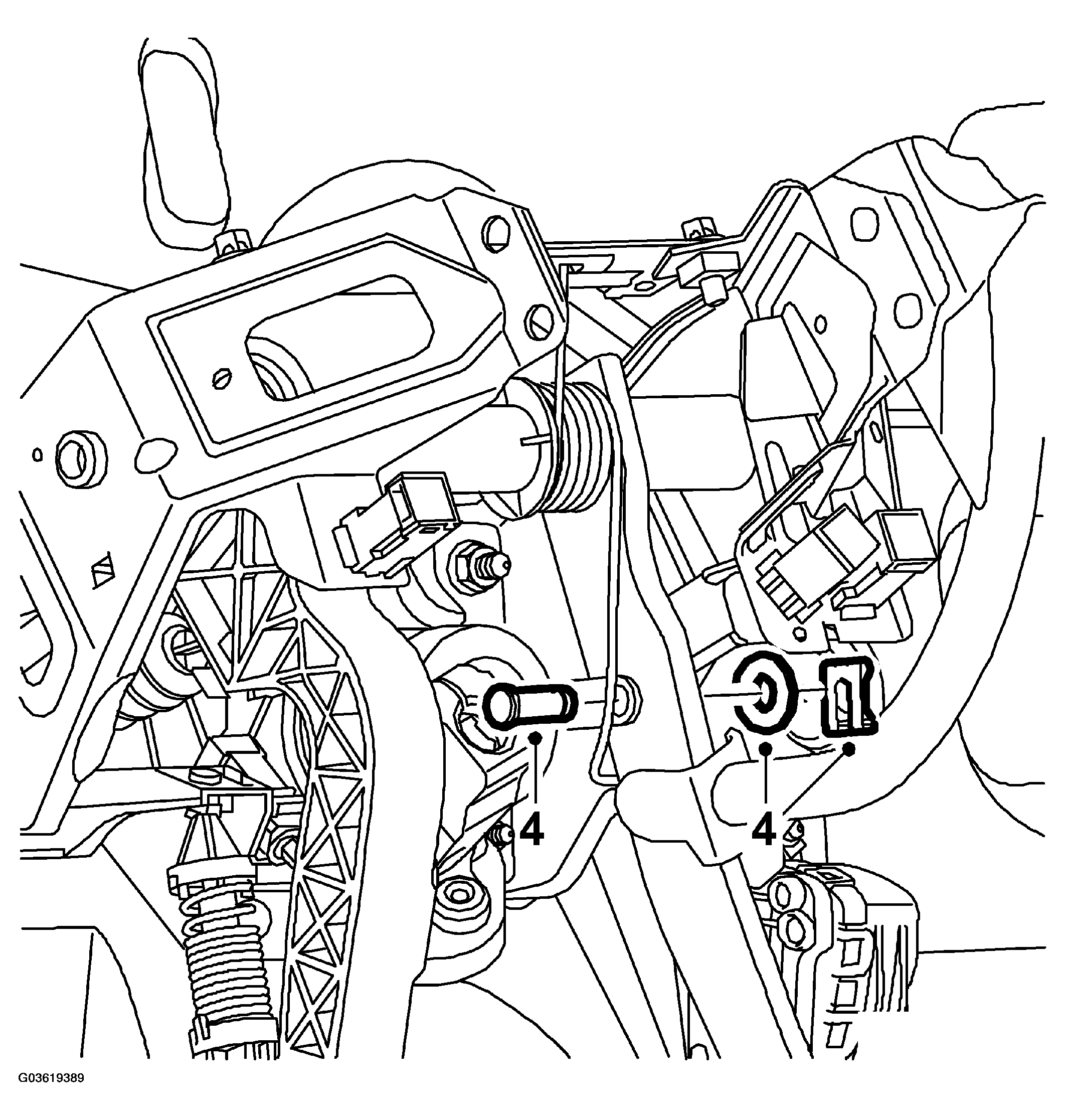

Fig 5: Illustration For Step 4
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Adjust the pedal switches. Depress the brake pedal and pull out the adjusting rod from the self-adjusting pedal switches.
Fit the steering wheel member.
