To remove

  1. Raise the car.
  2. Remove the wheel.
  3. Remove the retaining spring from the brake caliper.

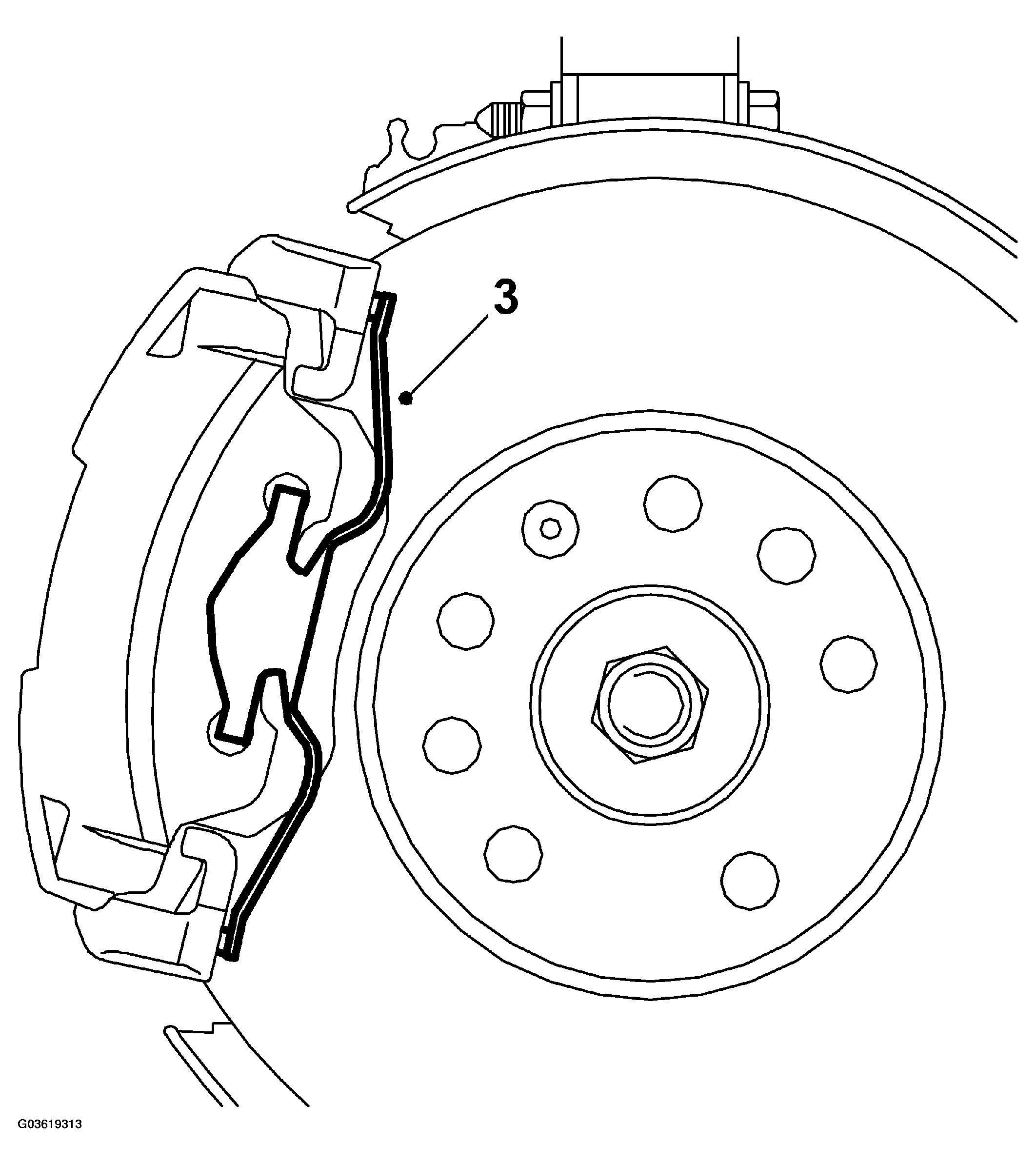

    Fig 1: Illustration For Step 3
    G03619313Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Press in the piston by prying with a screwdriver against the brake pad.

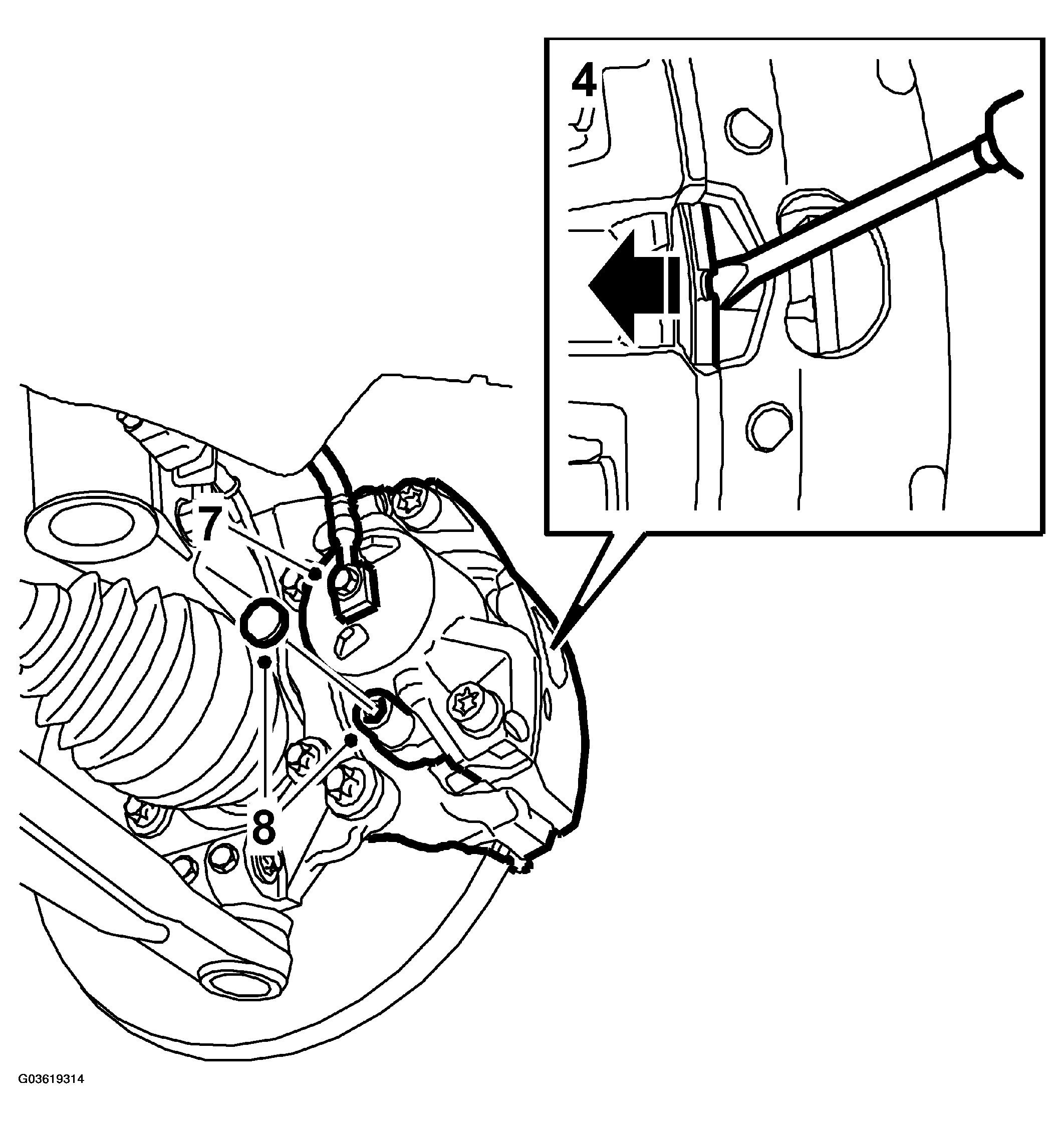

    Fig 2: Illustration For Step 4, 7-8
    G03619314Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Depress the brake pedal slightly using a brake pedal clamp.
  6. Remove fuse 6 from the instrument panel electrical center 22. Instrument panel electrical center 22 (IPEC).
  7. Detach the brake hose. Plug the hose and the caliper.
  8. Remove the protective covers and the hydraulic body guide pins and lift off the body.
  9. Remove the inner brake pad from the body and the outer brake pad from the bracket.
