To fit

  1. Clean the new brake disc.
  2. Clean all the contact surfaces between the hub and the brake disc.
  3. Place the brake disc on the hub and screw in the brake disc locking screw.

    Tightening torque 7 Nm (5 lbf ft)

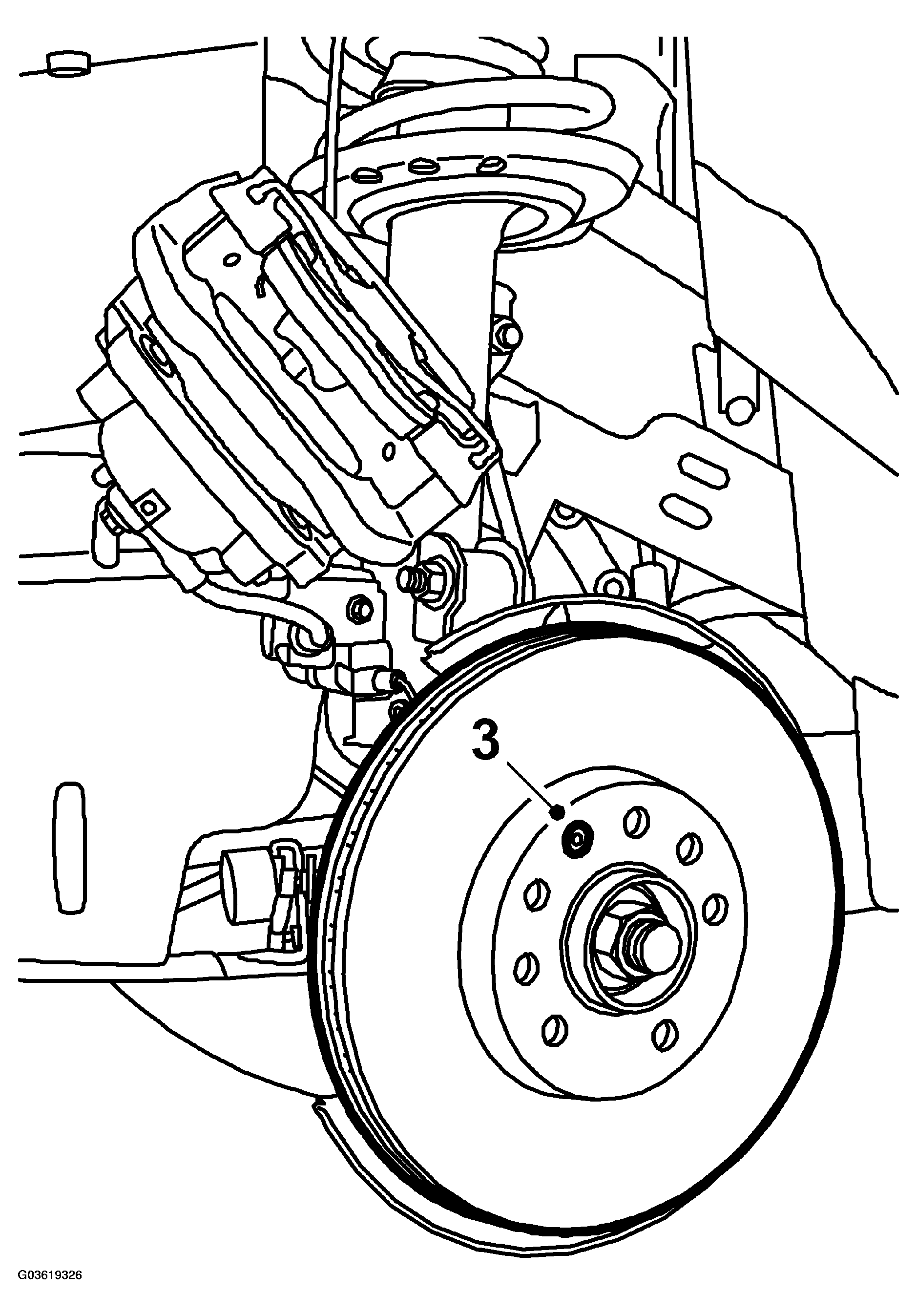

    Fig 1: Illustration For Step 3
    G03619326Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the brake caliper. Secure the bolts with 74 96 268 Thread locking adhesive.

    Tightening torque: 210 Nm +30° (155 lbf ft +30°)

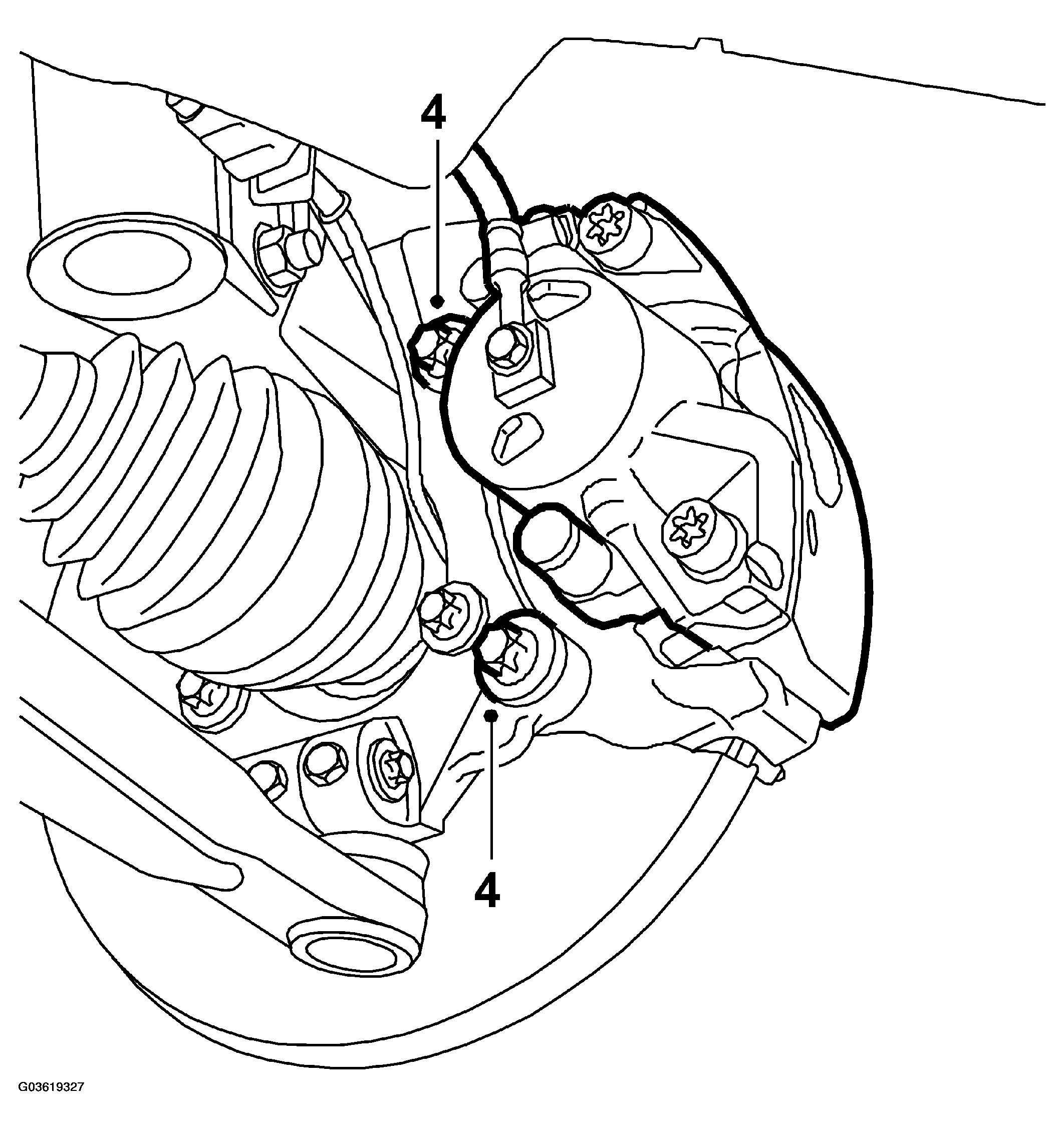

    Fig 2: Illustration For Step 4
    G03619327Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the wheel.
  6. Lower the car and press the brake pedal to press out the brake pads.
  7. Test drive the car and check the operation of the brakes.
