Checking brake pads

  1. Remove the wheels
  2. Check the thickness of the brake pads. Use drill bits of different dimensions between the brake disc and brake pad bearing plate as guides while measuring thickness.

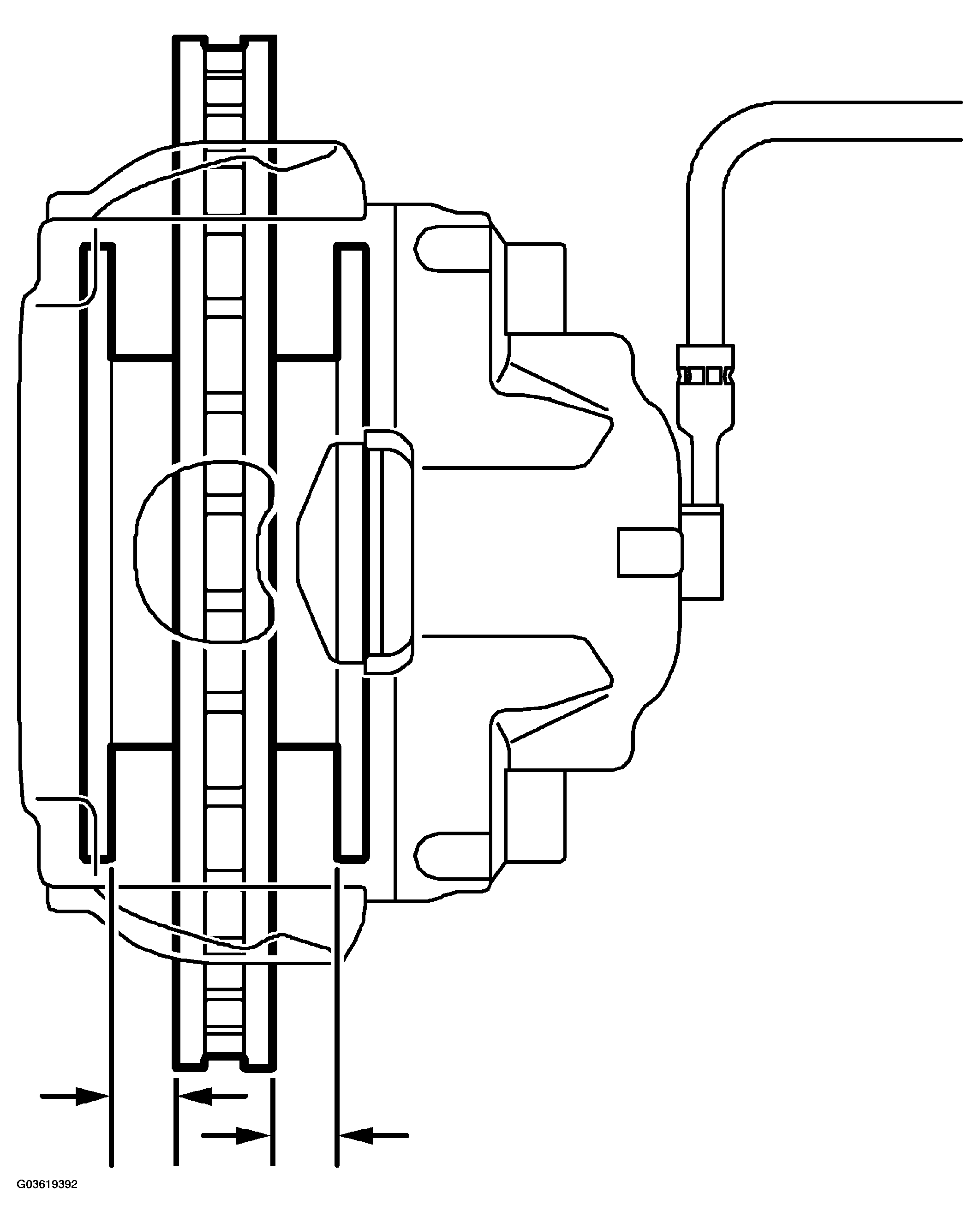

    Fig 1: Checking Brake Pads
    G03619392Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Check the condition of the brake discs.
  4. Brake pad replacement should be performed according to Brake pad wear.
