To remove

  1. Put on 82 93 706 Wing cover.
  2. Remove Hydraulic unit, TCS/ESP.
  3. Remove MASTER CYLINDER  .
  4. Remove Acoustic baffle, driver.
  5. Remove brake pedal link bolt.

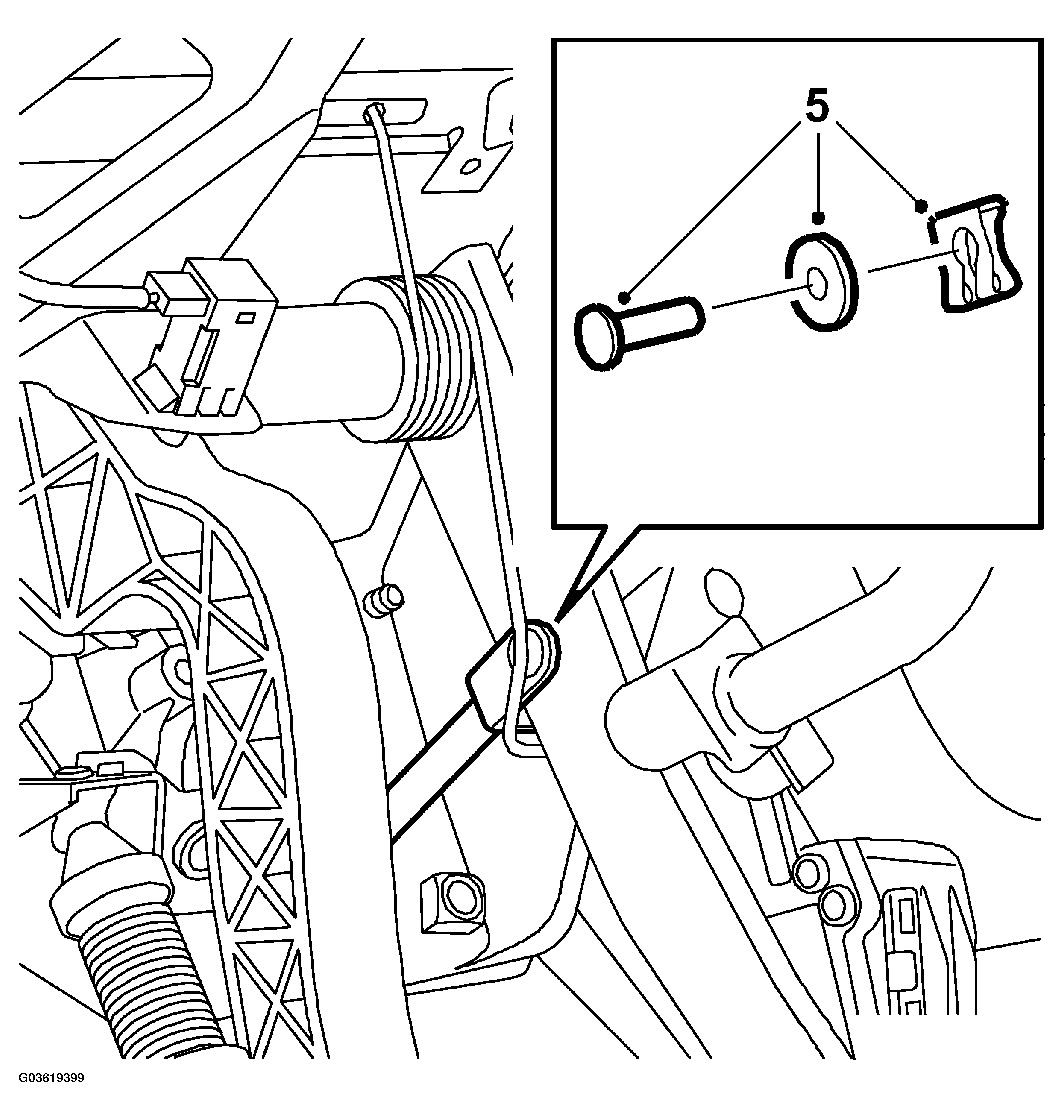

    Fig 1: Illustration For Step 5
    G03619399Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Place a jack underneath the engine. Undo the bolts on the left engine mounting to lower the engine about 20 mm.
  7. Detach the vacuum hose from the brake servo.

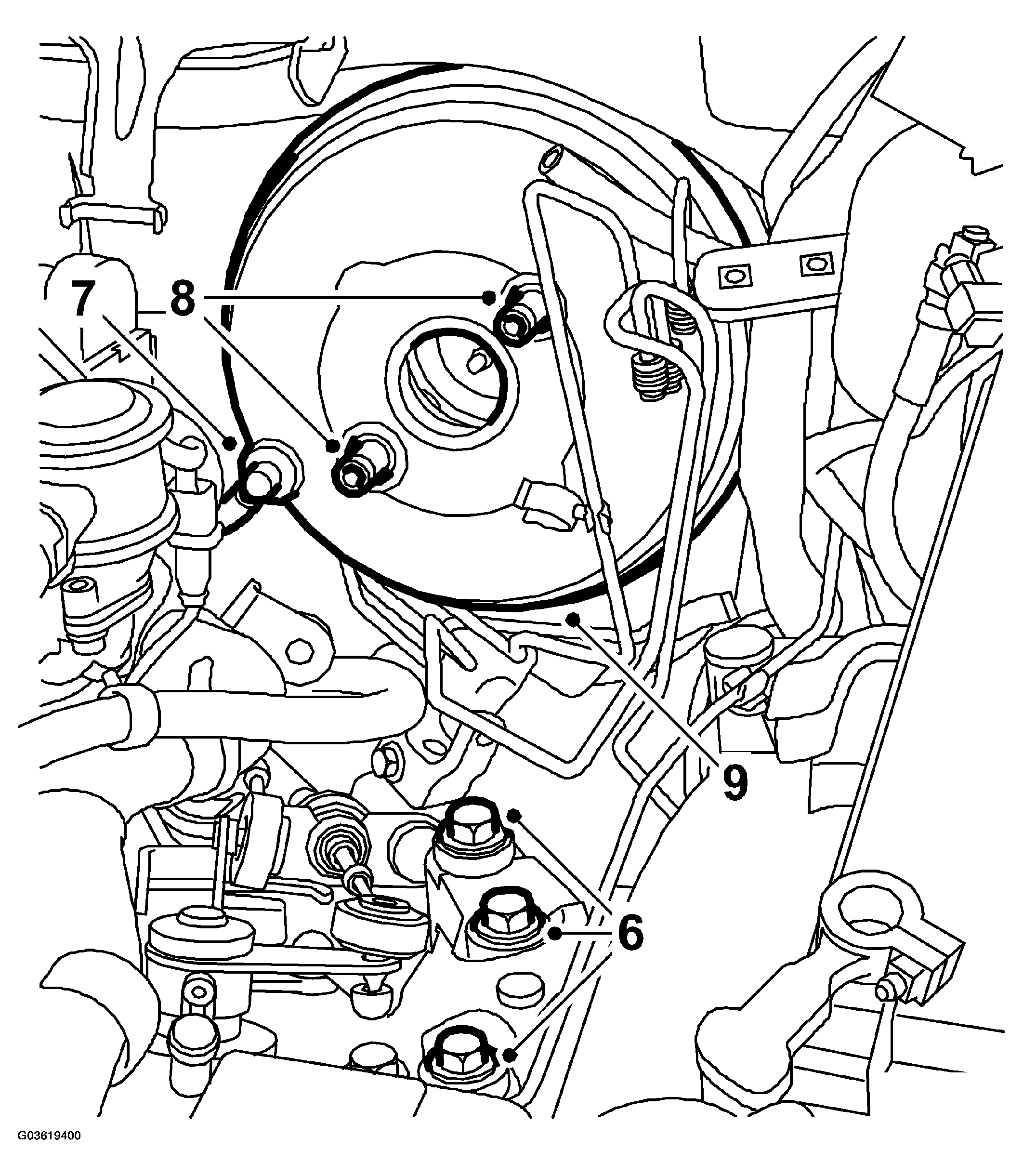

    Fig 2: Illustration For Step 6-9
    G03619400Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the brake servo bolts.
  9. Remove the brake servo from the bulkhead.
