To fit

  1. Remove the switch pushrod and locking sleeve.

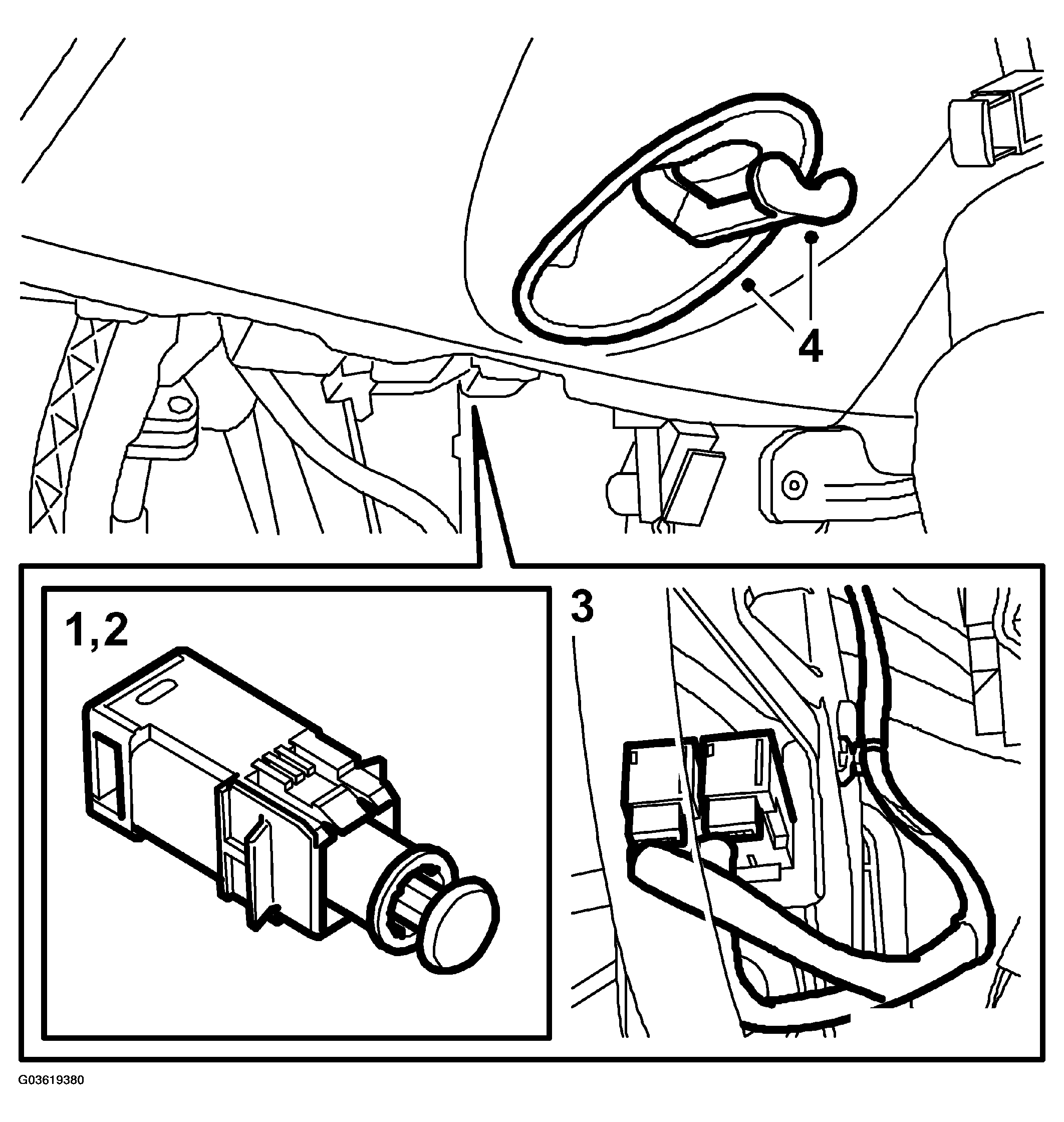

    Fig 1: Illustration For Step 1-4
    G03619380Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Press down the brake pedal as far as possible. There must be a vacuum in the brake servo (it may be necessary to start the engine).

    Fit the switch. Press in the locking sleeve.

    NOTE: The switch should fit in the bracket coding.
  4. Fit the handle and cover for steering wheel adjustment.
  5. Depress the brake pedal as much as possible and pull out the switch pushrod. Release the pedal.
  6. Fit the sound baffle on the driver's side.
