To fit

  1. Lubricate the shoe sliding and contact surfaces with 89 96 993 Special paste.

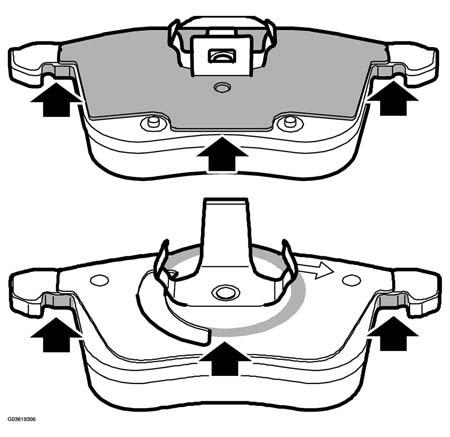

    Fig 1: Lubricating Shoe Sliding And Contact Surfaces
    G03619306Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the brake pads into the hydraulic body.
    NOTE: The inner brake pad must be fitted so that the arrow points in the direction of rotation of the brake disc for forward travel.

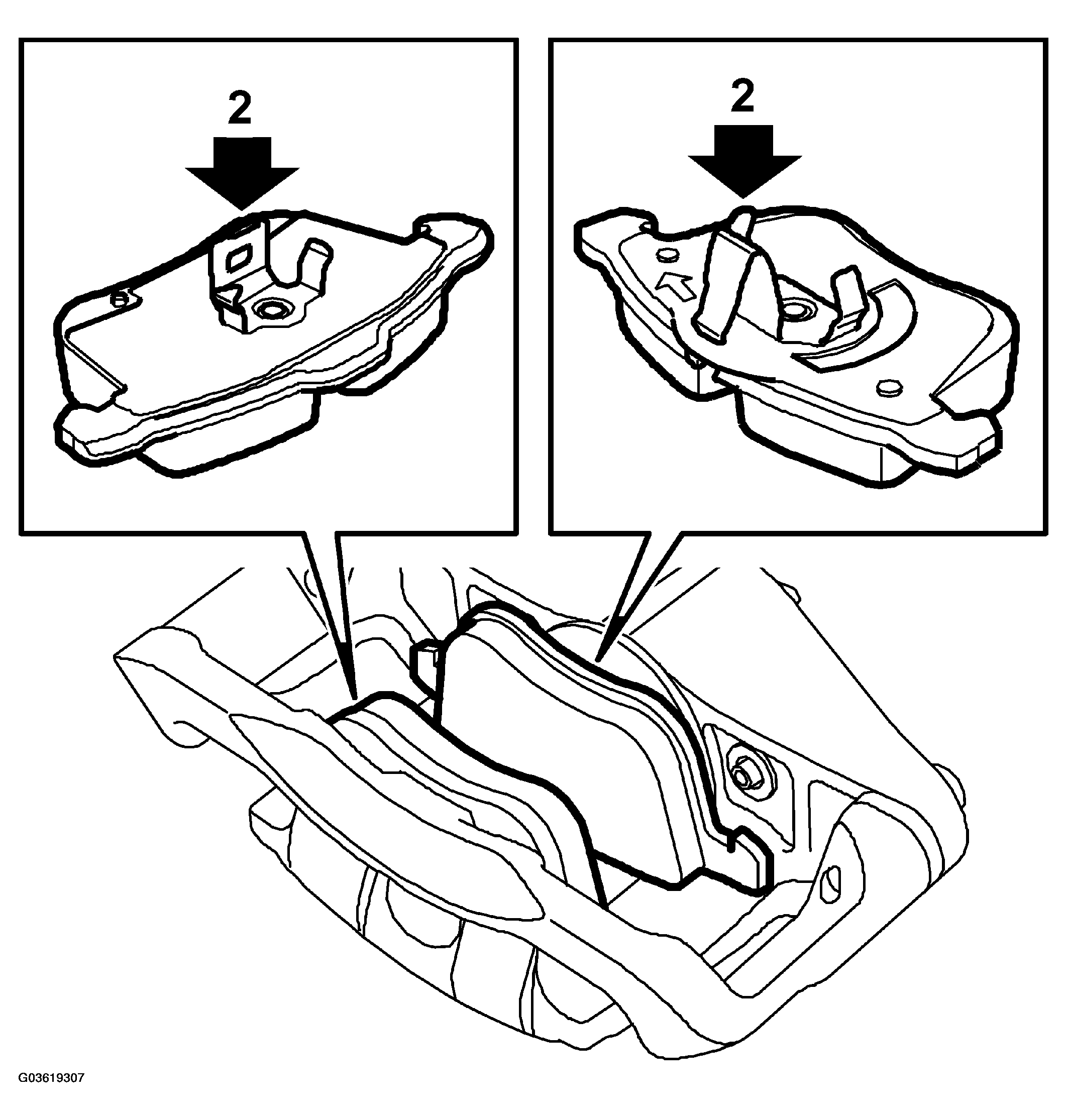

    Fig 2: Illustration For Step 2
    G03619307Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Place the hydraulic body into the carrier.

    Fit the guide pins.

    Tightening torque 28 Nm (21 lbf ft)

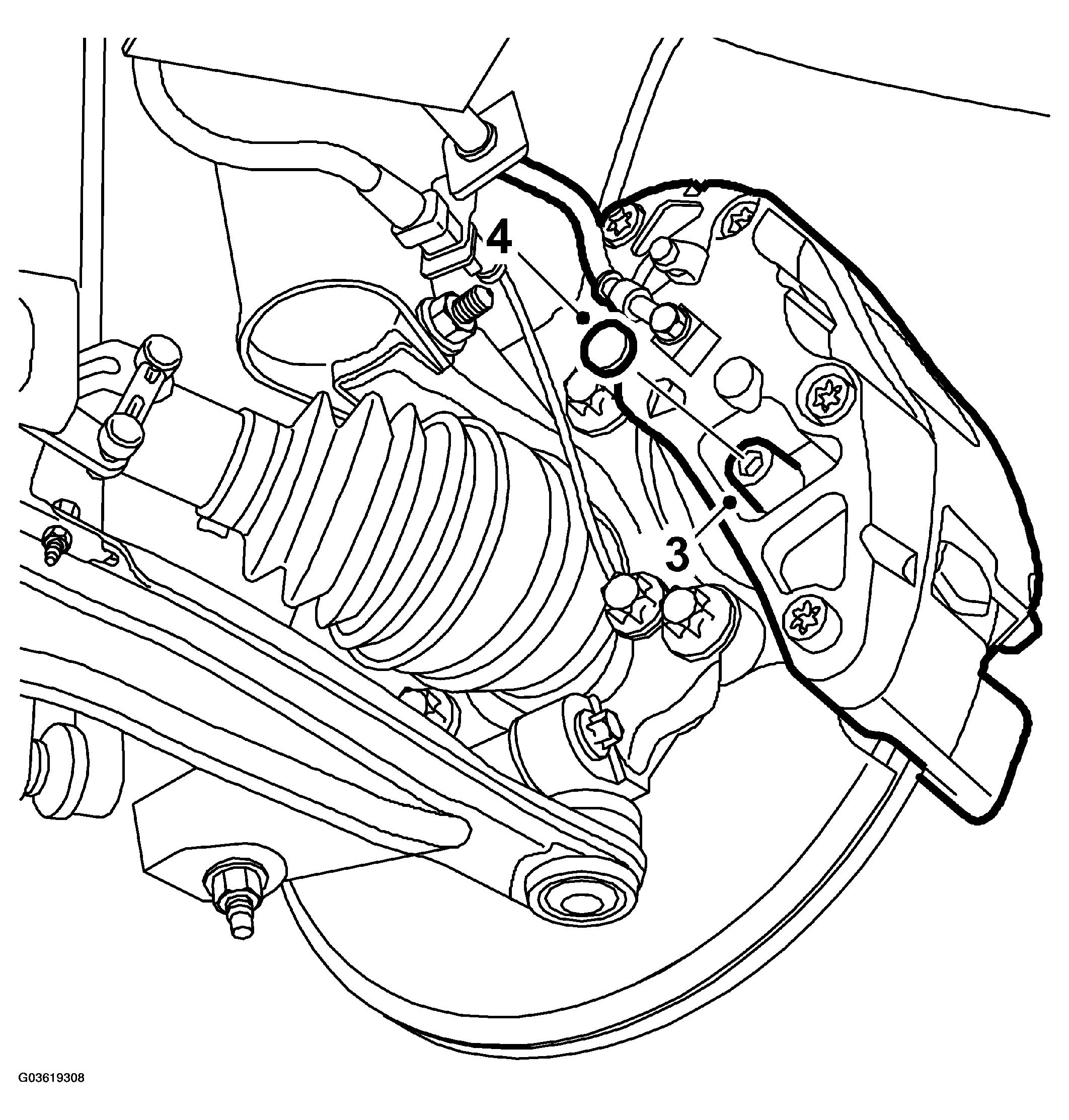

    Fig 3: Illustration For Step 3-4
    G03619308Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the protective covers.
  5. Fit the retaining spring to the brake caliper. Position the upper edge and center of the spring. Then press home the lower end of the spring. Make sure the lug engages.

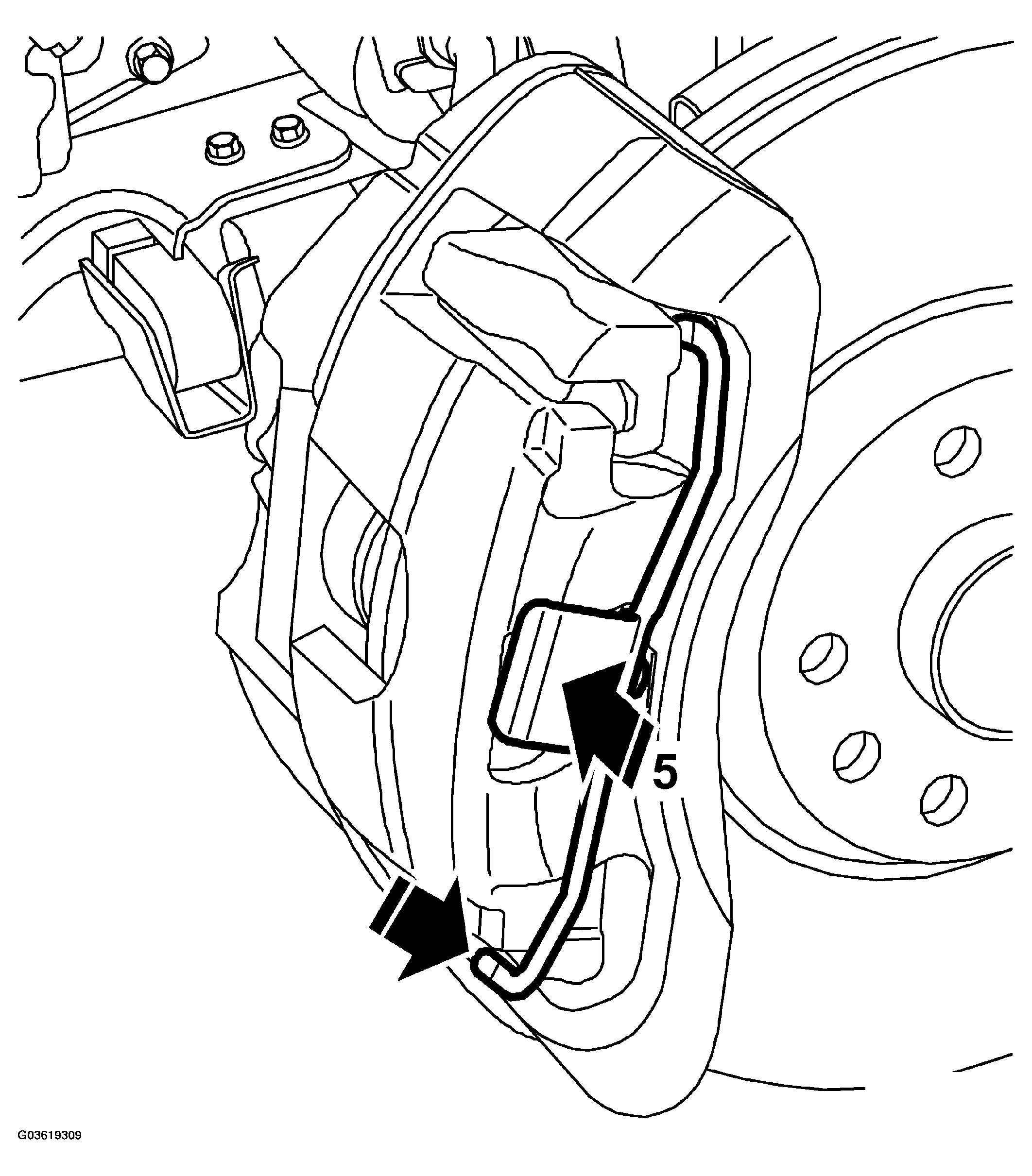

    Fig 4: Illustration For Step 5
    G03619309Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Fit the wheel.
  7. Lower the car.
  8. Depress the brake pedal repeatedly in order to press out the brake pistons.
  9. Check the brake fluid level and top up as necessary.
  10. Check the operation of the foot brake.
