To remove

  1. Raise the car.
  2. Remove the wheel.
  3. Remove the retaining spring from the brake caliper.

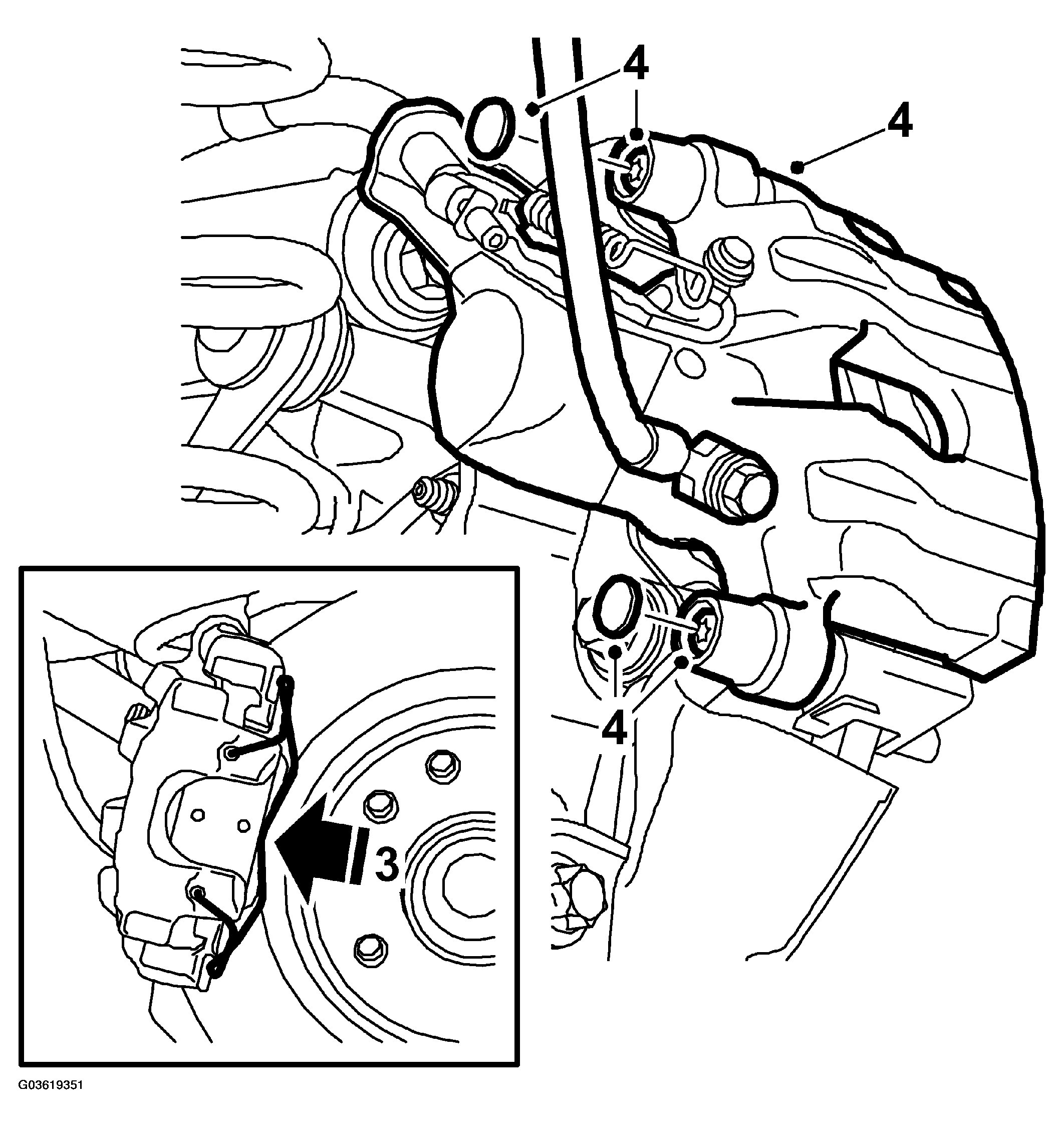

    Fig 1: Illustration For Step 3-4
    G03619351Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the protective covers. Remove the hydraulic body and suspend it with a hook on the brake pipe holder.
    NOTE: Be careful not to damage the brake pipe.

    Remove the outer brake pad.

  5. Remove the brake caliper carrier.

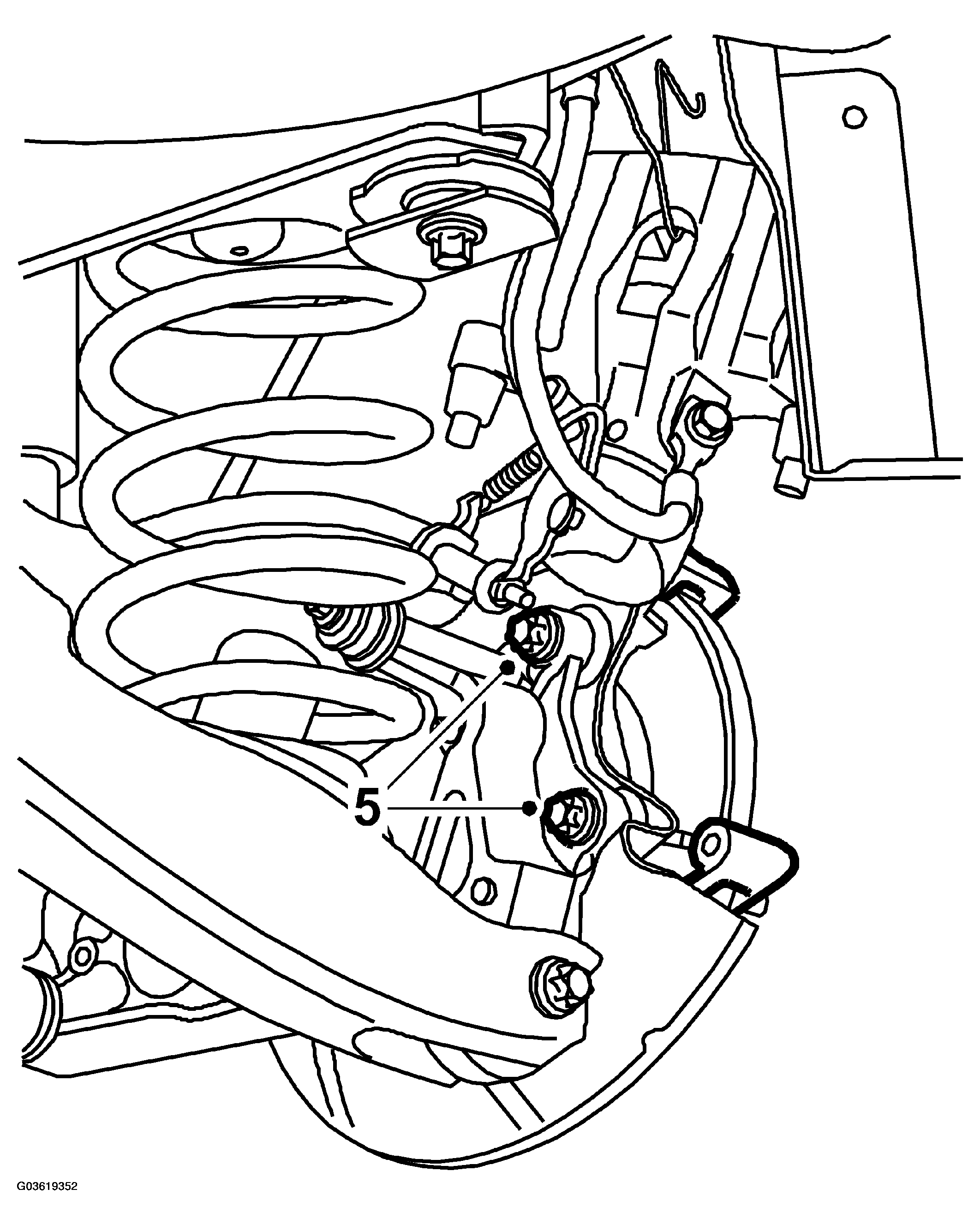

    Fig 2: Illustration For Step 5
    G03619352Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the brake disc locking bolt. Lift off the brake disc.

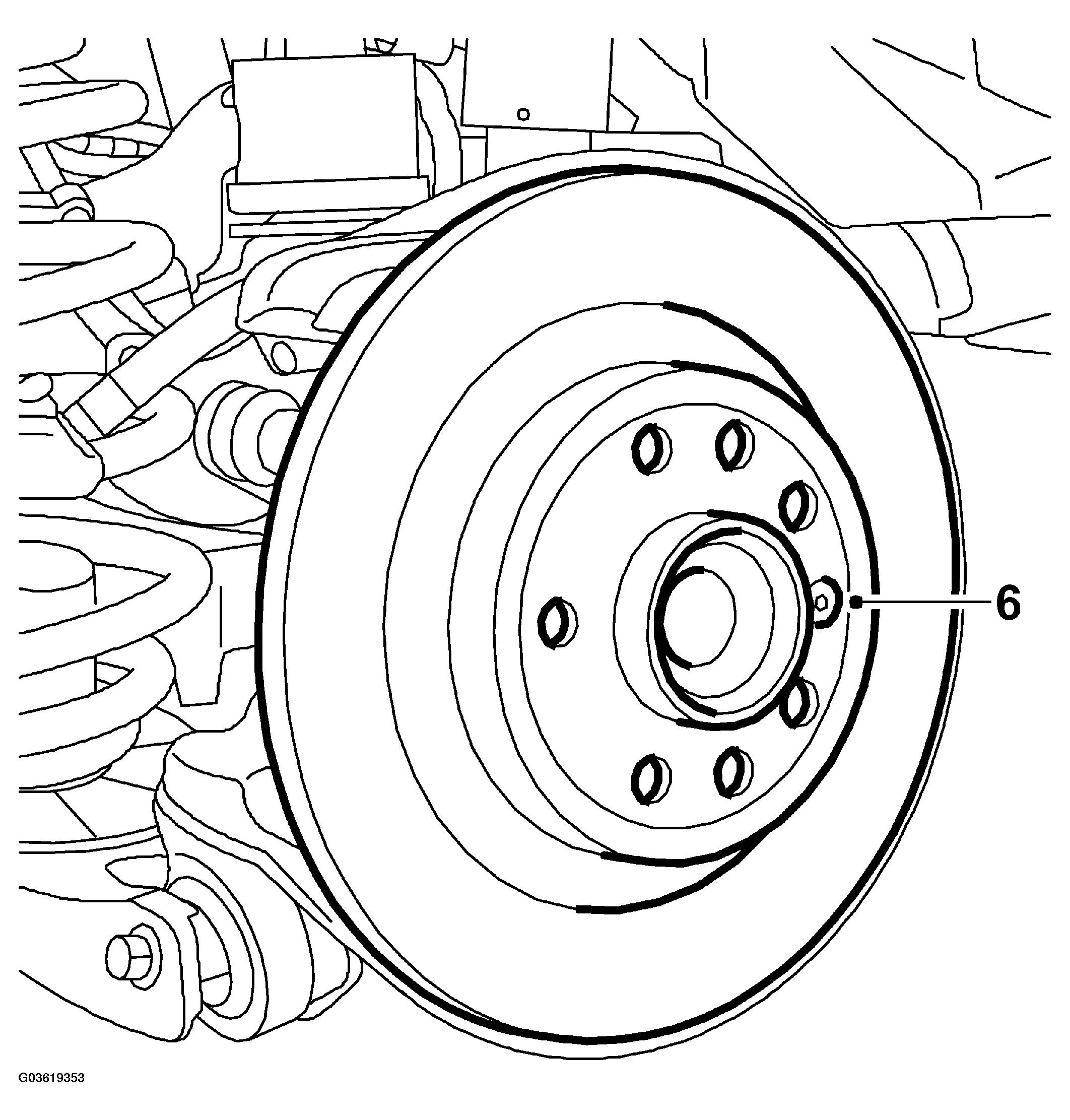

    Fig 3: Illustration For Step 6
    G03619353Courtesy of SAAB-SCANIA OF AMERICA, INC.
