To fit

  1. Fit the brake caliper. Secure with 74 96 268 Nut lock.

    Tightening torque 210 Nm +30° Nm (155 lbf ft +30°)

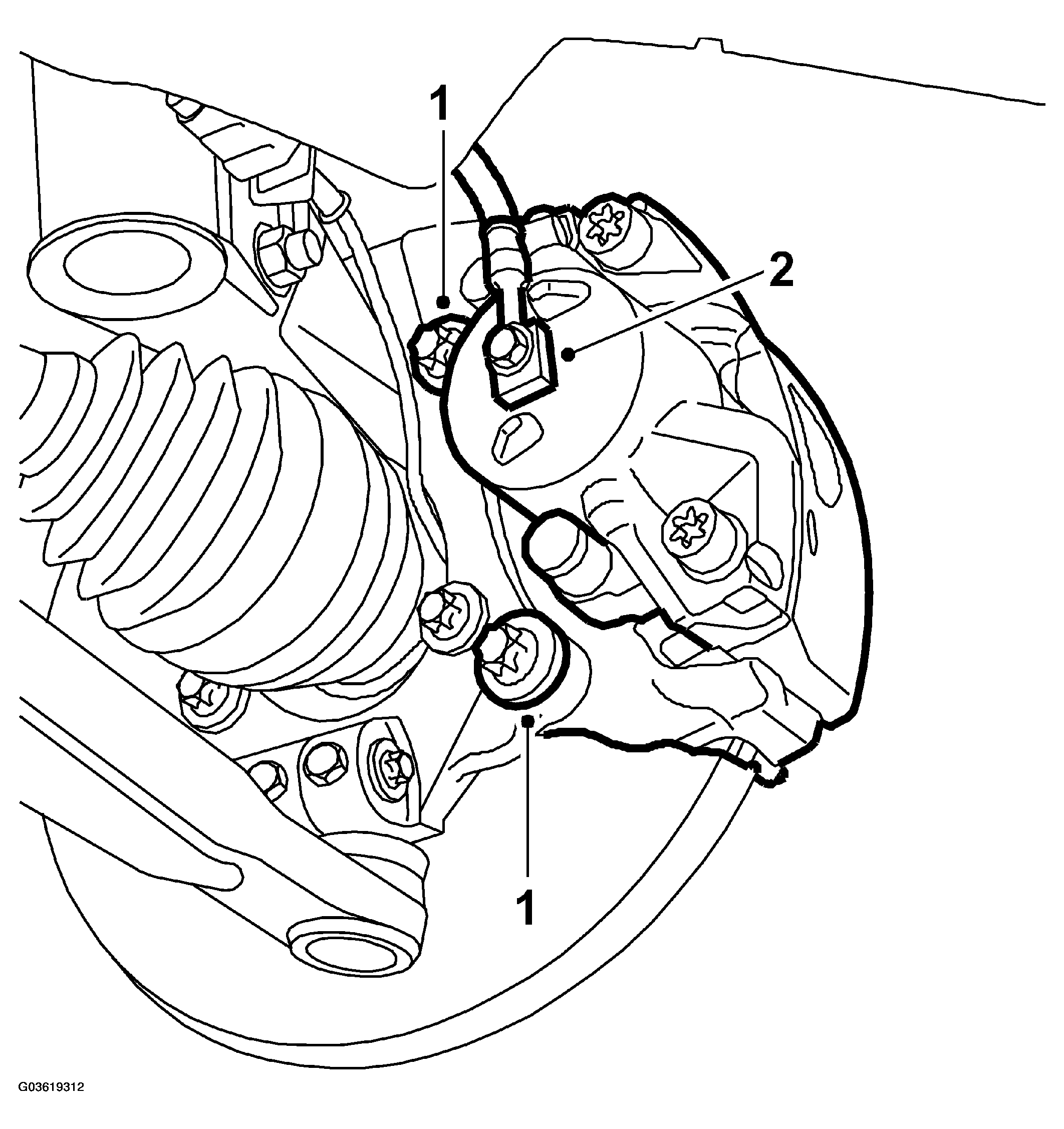

    Fig 1: Illustration For Step 1-2
    G03619312Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the brake hose with new seals.

    Tightening torque: 40 Nm (30 lbf ft)

  3. Remove the brake pedal clamp and refit fuse 6 in the instrument panel electrical center 22.
  4. Bleed the brake system.
  5. Fit the wheel.
  6. Lower the car.
  7. Depress the brake pedal repeatedly in order to press out the brake pistons.
  8. Check the brake fluid level, adjust if necessary. TECHNICAL DATA  , BRAKE FLUID  .
