Microphone, mobile phone (634): Connection

The microphone is supplied with power on pin 1 and sends an amplified signal on the same pin. Ground is provided on pin 3.

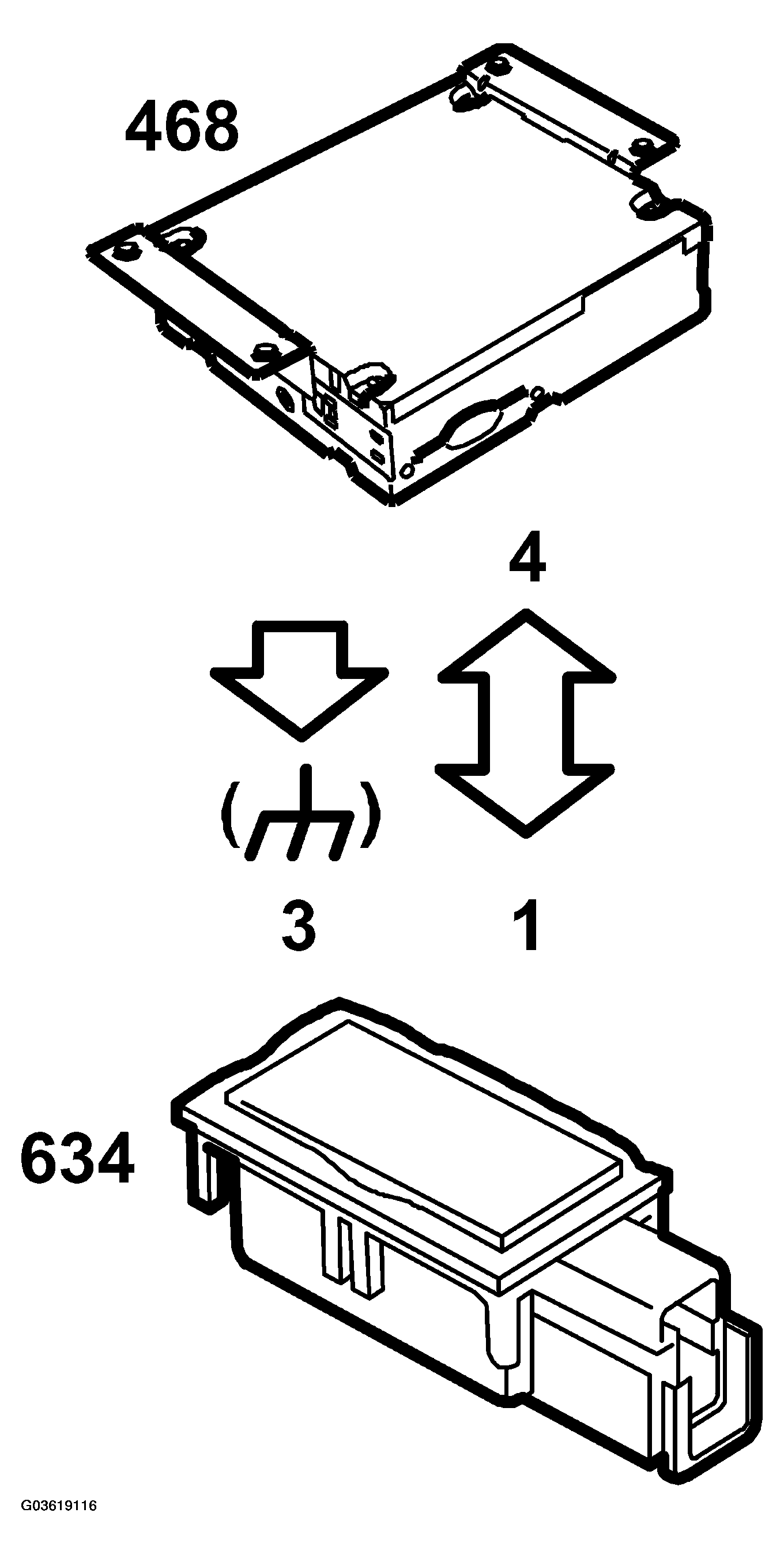

Fig 1: Identifying Microphone Connection

Courtesy of SAAB-SCANIA OF AMERICA, INC.

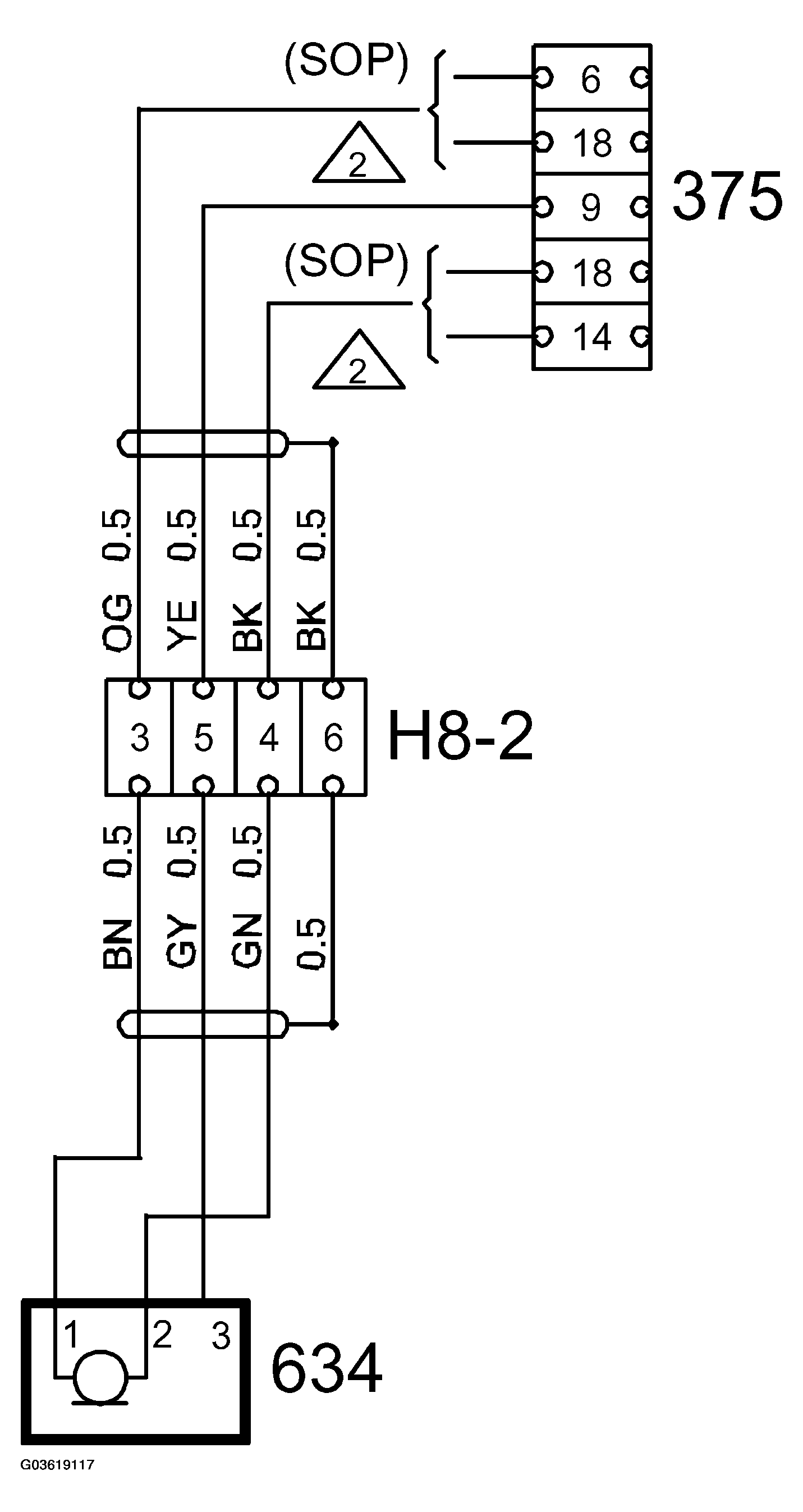

Wiring diagram, mobile phone

Fig 2: Wiring Diagram, Mobile Phone

Courtesy of SAAB-SCANIA OF AMERICA, INC.

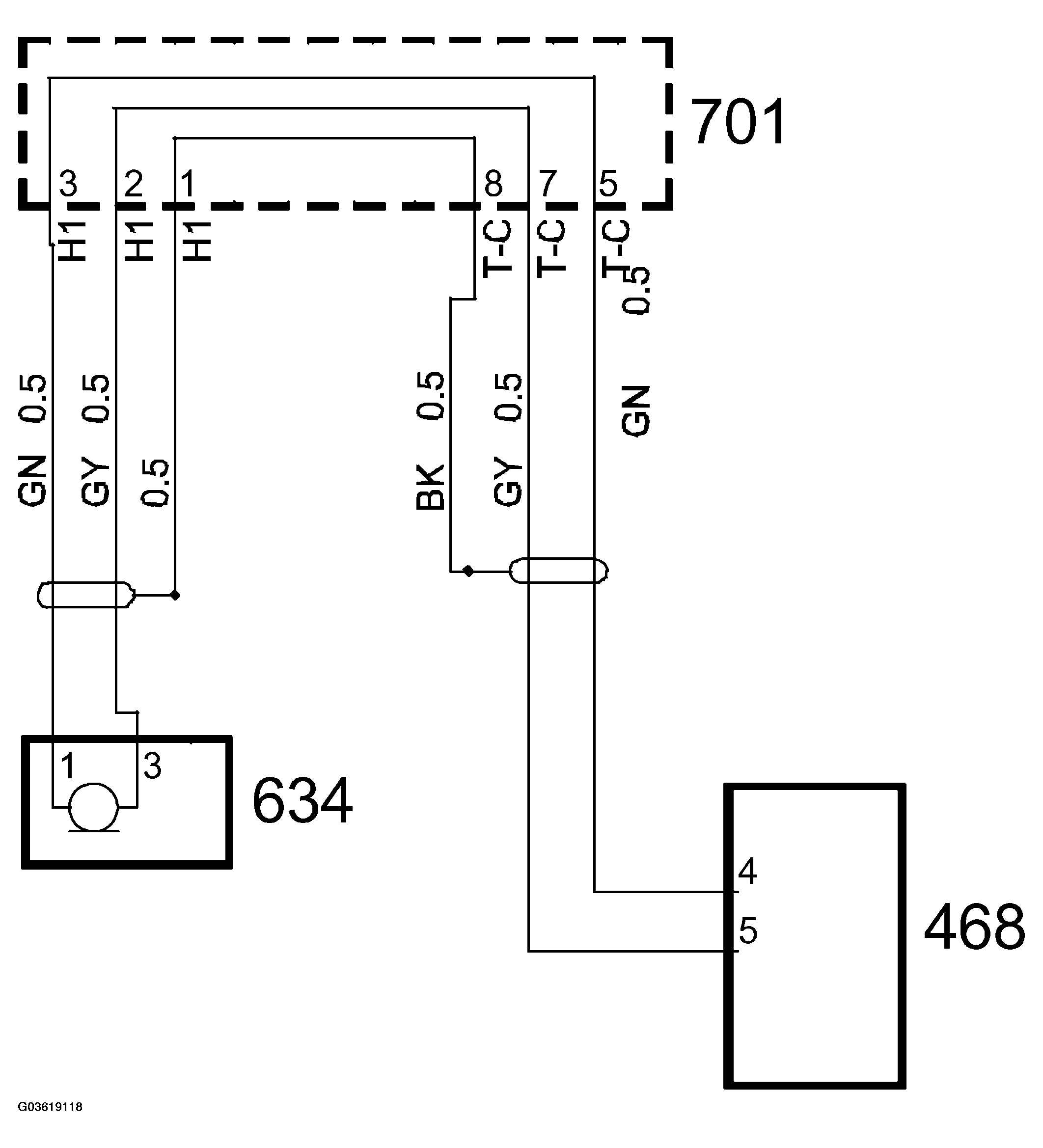

Wiring diagram, Communication

Fig 3: Wiring Diagram, Communication

Courtesy of SAAB-SCANIA OF AMERICA, INC.
