Main components, Navigation

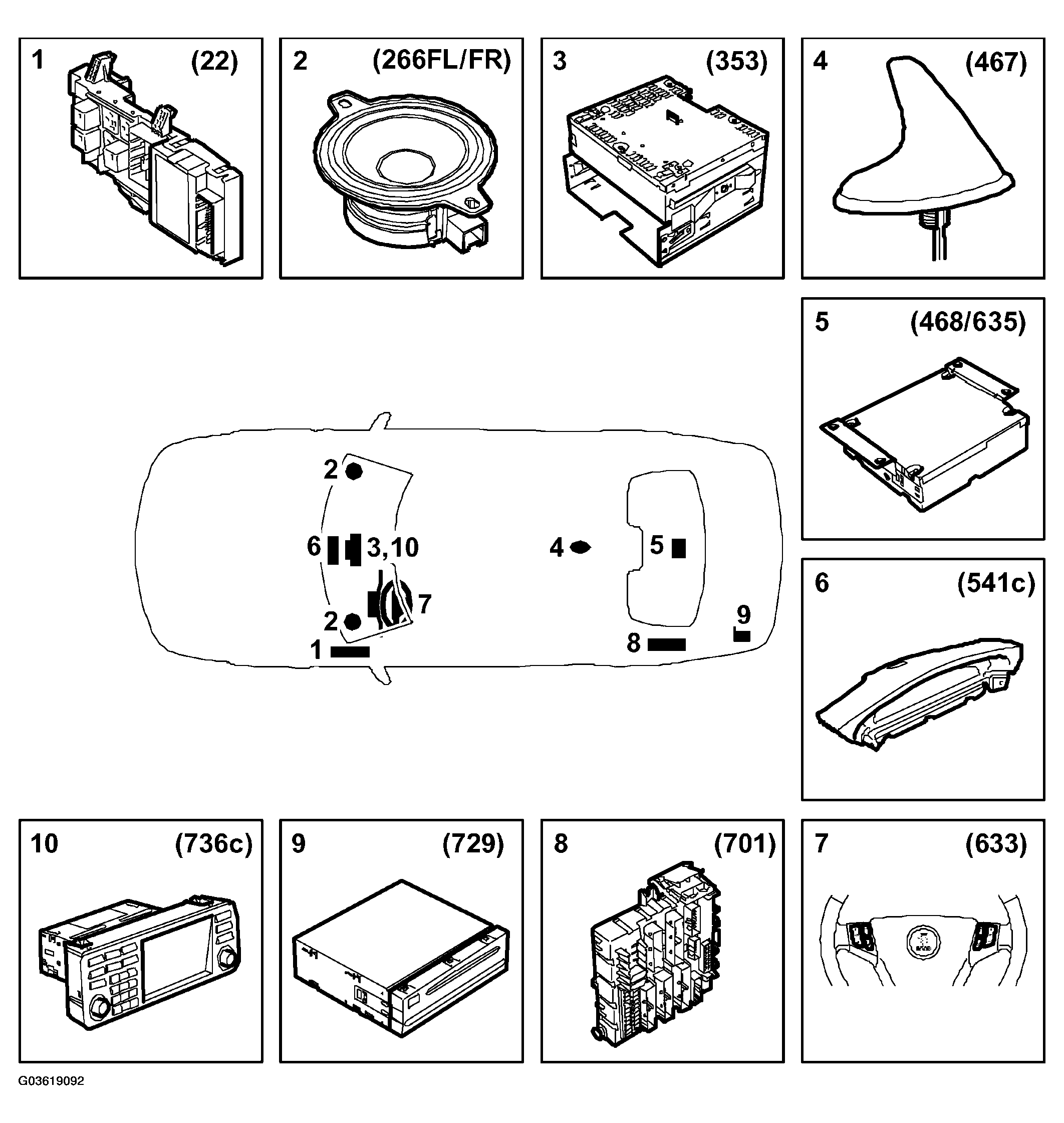

Fig 1: Identifying Navigation Main Components
G03619092Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Electrical centre, dashboard (22)
  2. Speaker (266 FR, FL)
  3. Entertainment Head Unit, EHU (353)
  4. Antenna, GPS/GSM (467)
  5. Navigation unit, CU/PU (468/635)
  6. SID (541c)
  7. Steering wheel controls (633)
  8. Rear Electrical Centre, REC (701)
  9. DVD unit (729)
  10. Control panel, Infotainment system 3, ICM3 (736c)
