Brief description, communication unit: Overview

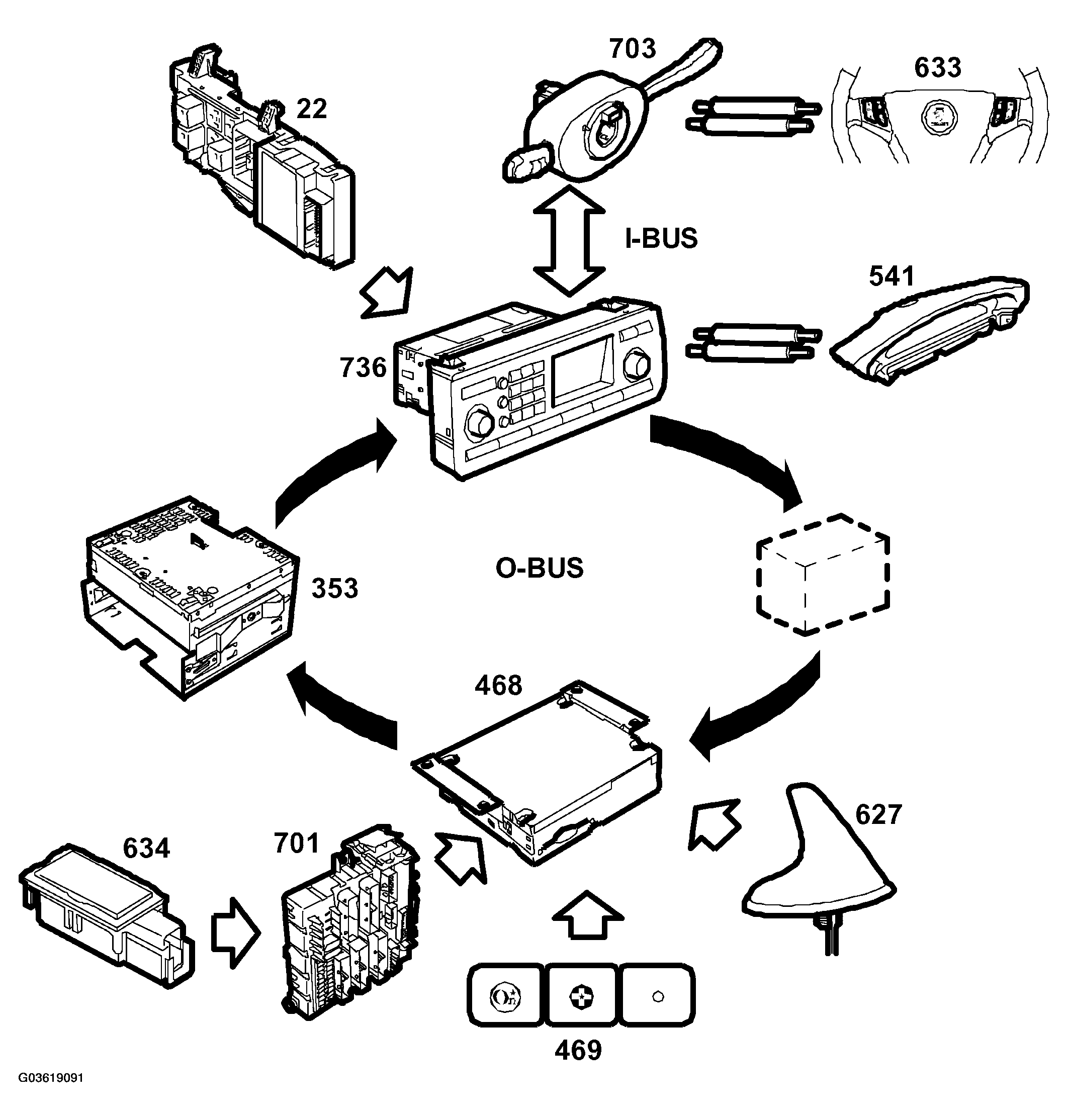

Fig 1: Communication Unit Overview

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Electrical centre, dashboard (22)
• Entertainment head unit (353)
• Communication unit (468)
• OnStar control panel (469)
• SID (541c)
• Antenna, mobile phone (627)
• Steering wheel controls (633)
• Microphone (634)
• Rear electrical centre (701)
• Column integration module (703)
• Infotainment control panel 2-3 (736b, c)
