Antenna, GPS/mobile phone (467/627): Connection

Connected to communication/positioning unit via coaxial cable.

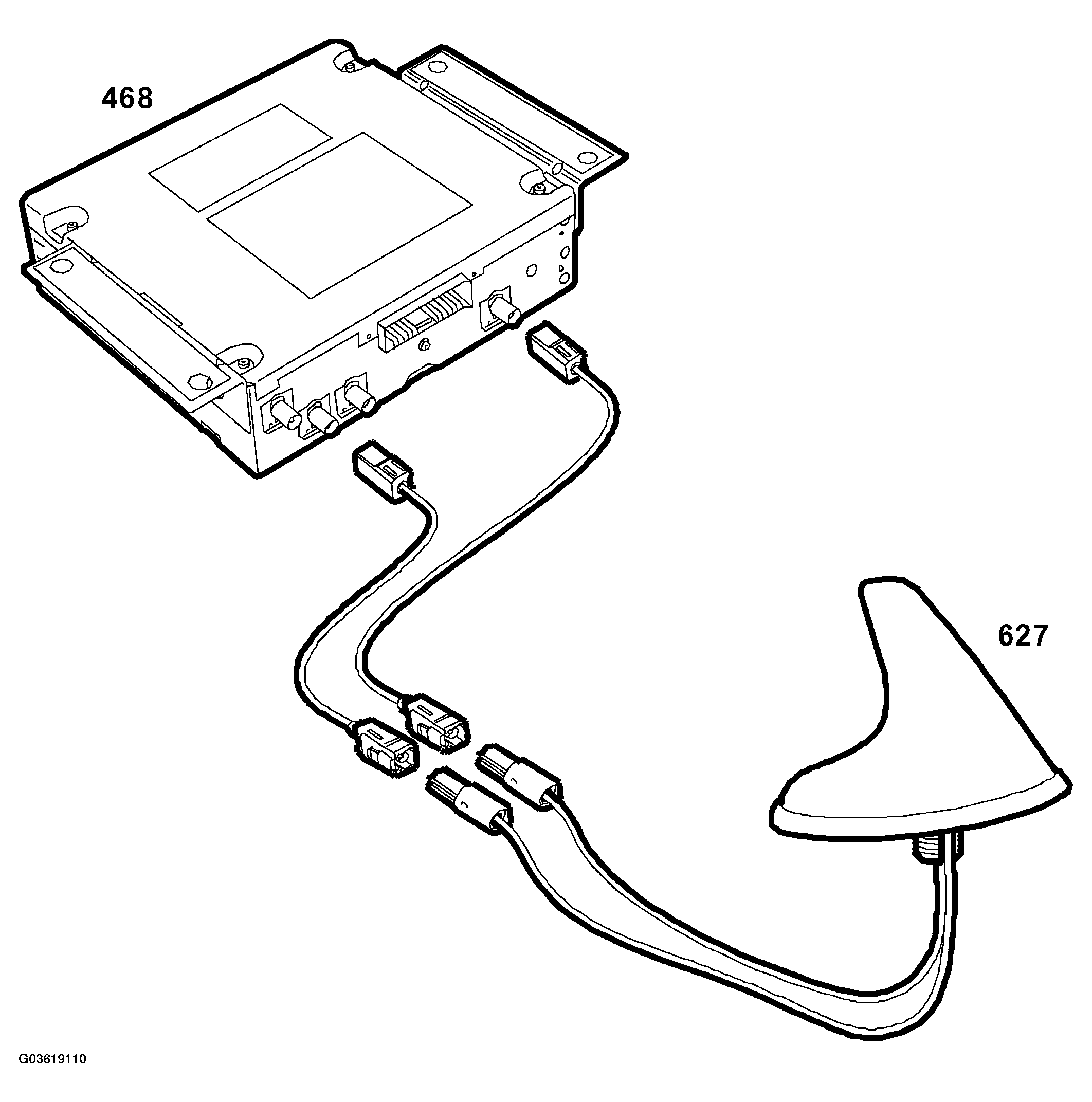

Fig 1: Connecting Antenna, GPS/Mobile Phone (467/627) To Communication/Positioning Unit Via Coaxial Cable
G03619110Courtesy of SAAB-SCANIA OF AMERICA, INC.
