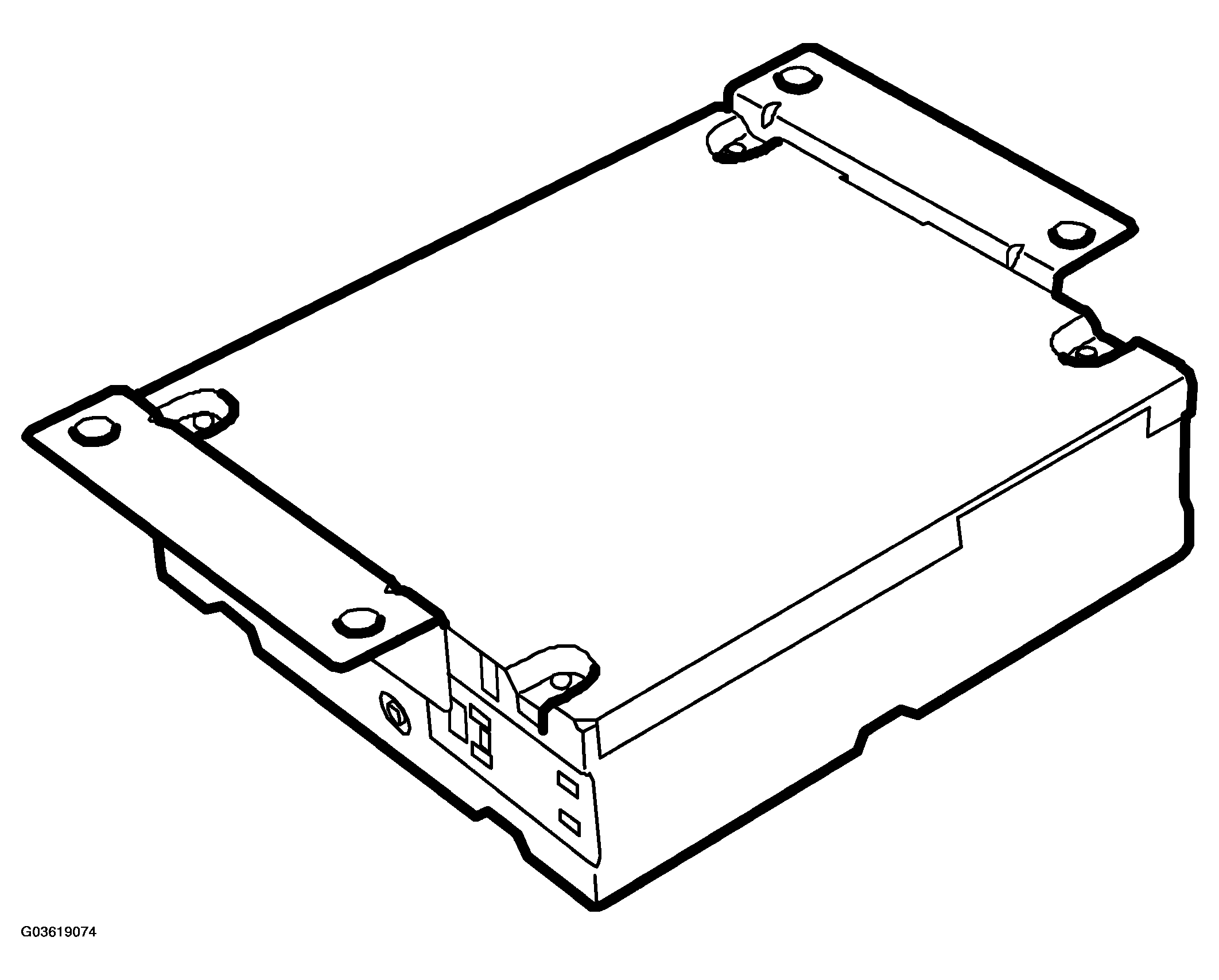

Navigation unit
Courtesy of SAAB-SCANIA OF AMERICA, INC. NAVIGATION UNIT - TECHNICAL DATA
| GPS/AMPS antenna |
Pin no. |
1, 2 |
| Microphone |
Pin no. |
4, 5 |
| +30 |
Pin no. |
10 |
| Ground |
Pin no. |
20 |
| O-bus (receiver) |
O-bus connection |
1 |
| O-bus (transmitter) |
O-bus connection |
2 |
