Rear electrical centre 701 (REC): Relays

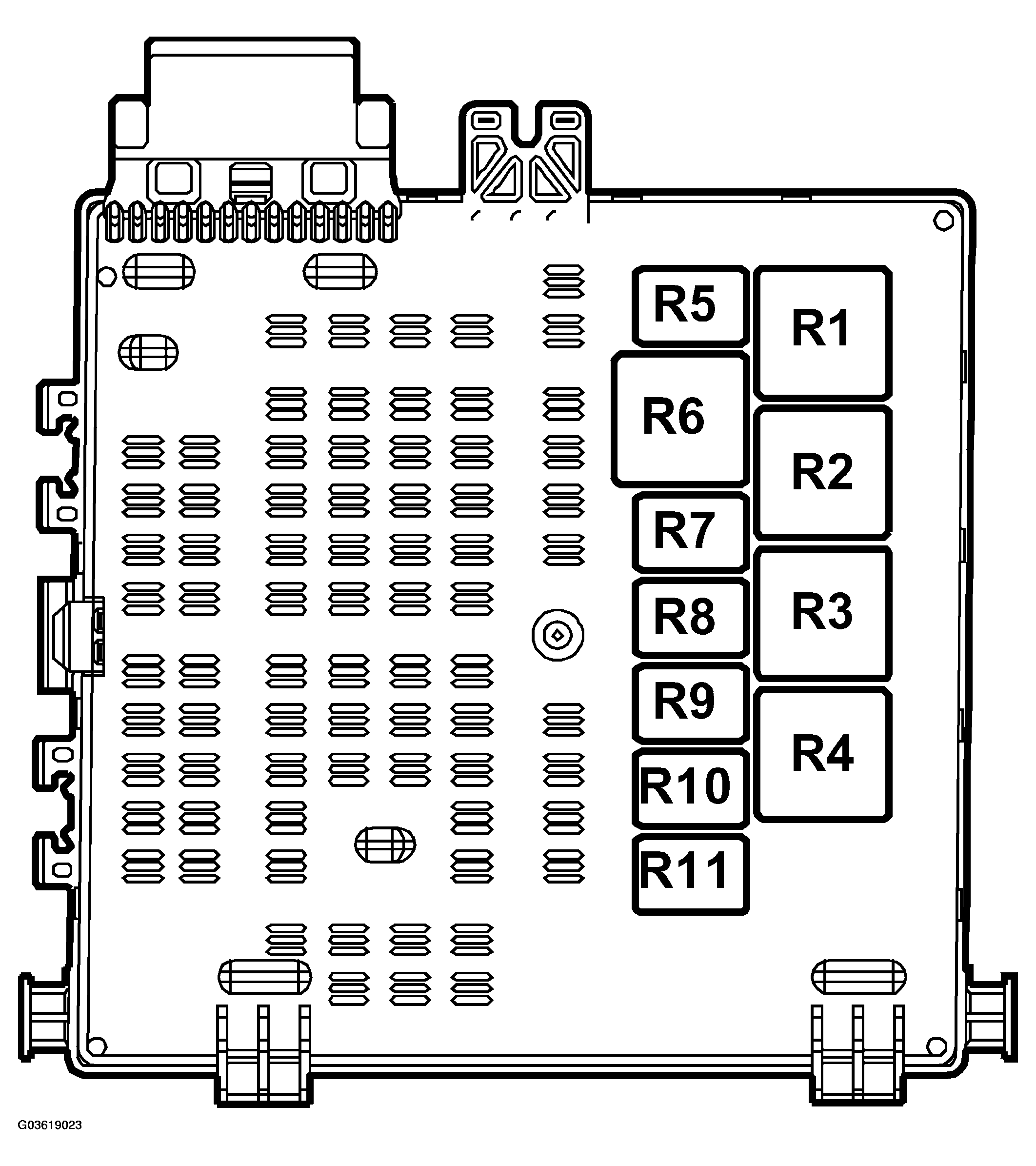

Fig 1: Identifying Electric Center Relays
G03619023Courtesy of SAAB-SCANIA OF AMERICA, INC.

The electrical centre can contain a greater number of relays than those listed below. In such cases, these are not connected to a wiring harness.

ELECTRIC CENTER RELAYS

Location No Description Picture Diagram
R1 446 Electrically adjustable seat relay   COMPONENT LOCATION
R2 757R Relay, +15, REC RELAY, ELECTRICALLY HEATED REAR WINDOW (113) Fuse 19, main fuse box in the luggage compartment 701
R3 -
R4 113 Electrically heated rear window relay RELAY, ELECTRICALLY HEATED REAR WINDOW (113) RELAY, ELECTRICALLY HEATED REAR WINDOW (113)
R5   -
R6   -
R7 710 Boot lid opening motor relay
R8   -
R9   -
R10   -
R11   -
