Rear electrical centre 701 (REC): Connect

The electrical centre is fed with a +30 supply from the engine bay electrical centre (342) and grounded to grounding points G3 and G29. The electrical centre is connected to the wiring harness via 7 connectors:

1. Body 1 (in diagram = B1) to main wiring harness

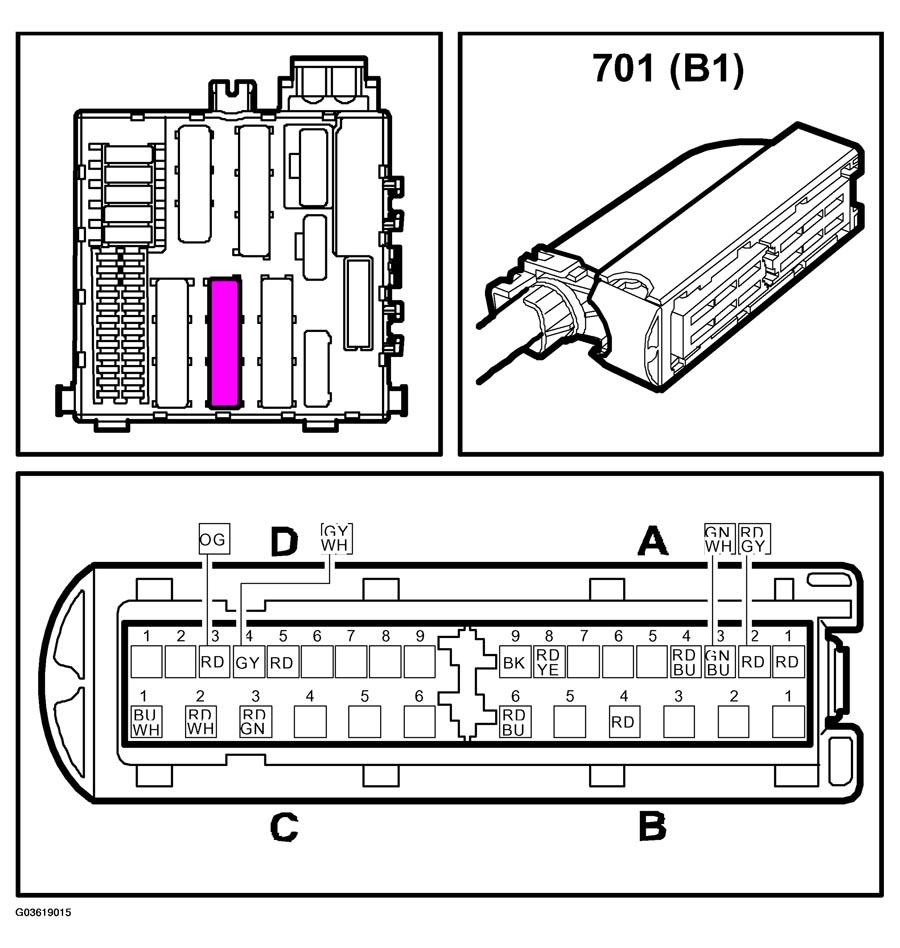

   Fig 1: Body 1 (In Diagram = B1) To Main Wiring Harness

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Body 2 (in diagram = B2) to main wiring harness

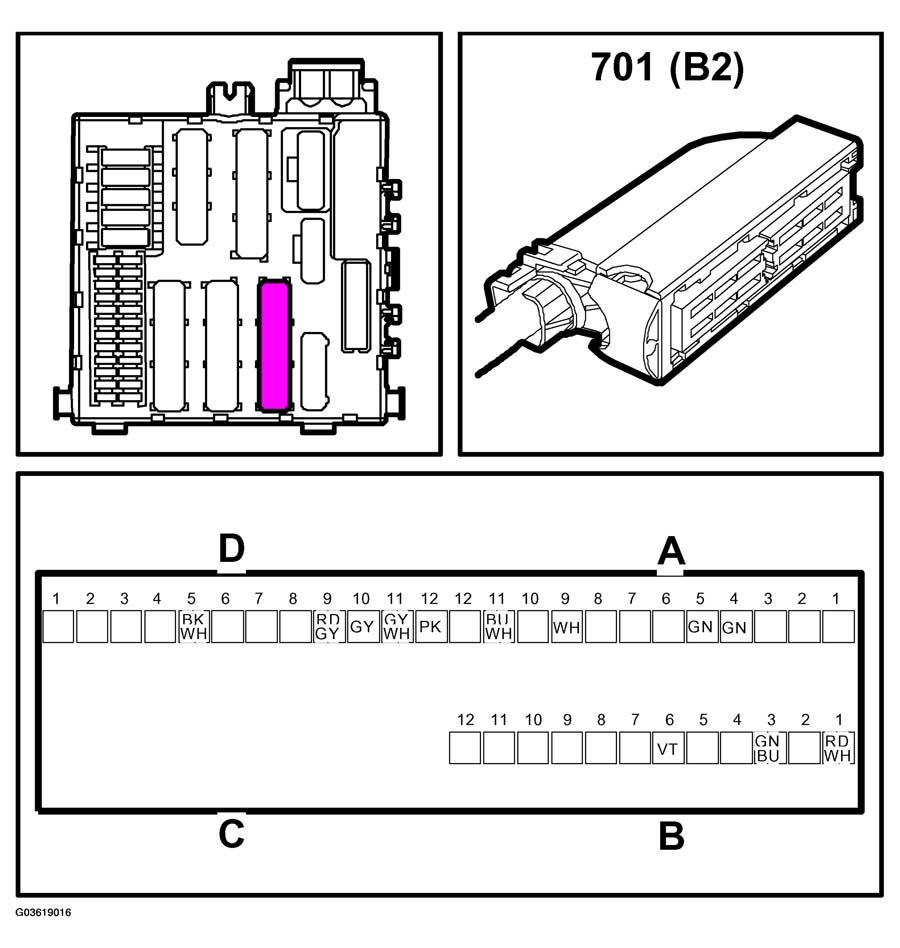

   Fig 2: Body 2 (In Diagram = B2) To Main Wiring Harness

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Body 3 (in diagram = B3) to main wiring harness

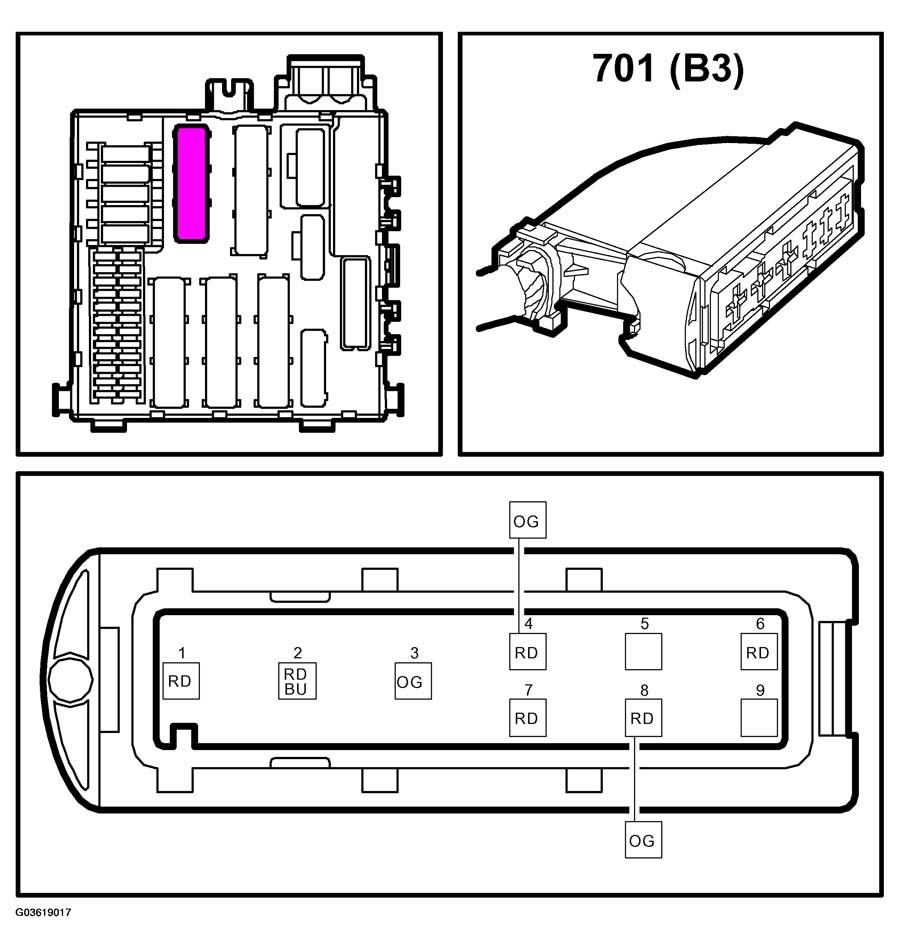

   Fig 3: Body 3 (In Diagram = B3) To Main Wiring Harness

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Head 1 (in diagram = H1) to roof wiring harness

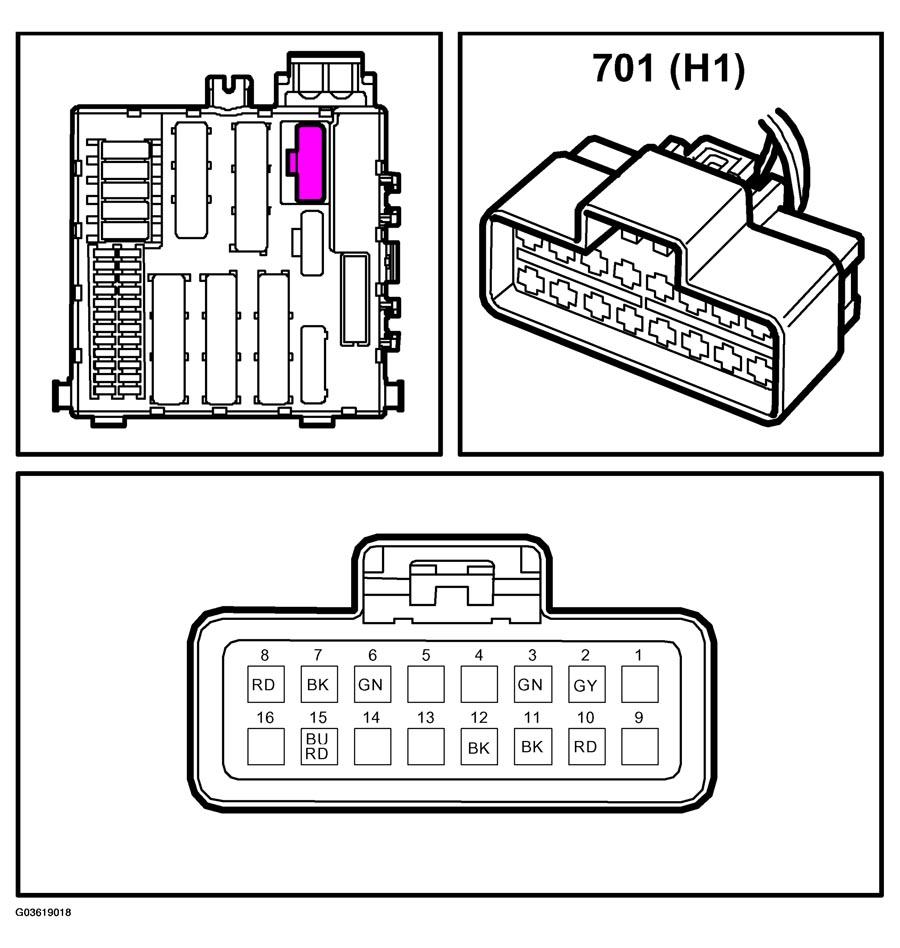

   Fig 4: Head 1 (In Diagram = H1) To Roof Wiring Harness

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
5. Head 2 (in diagram = H2) to roof wiring harness

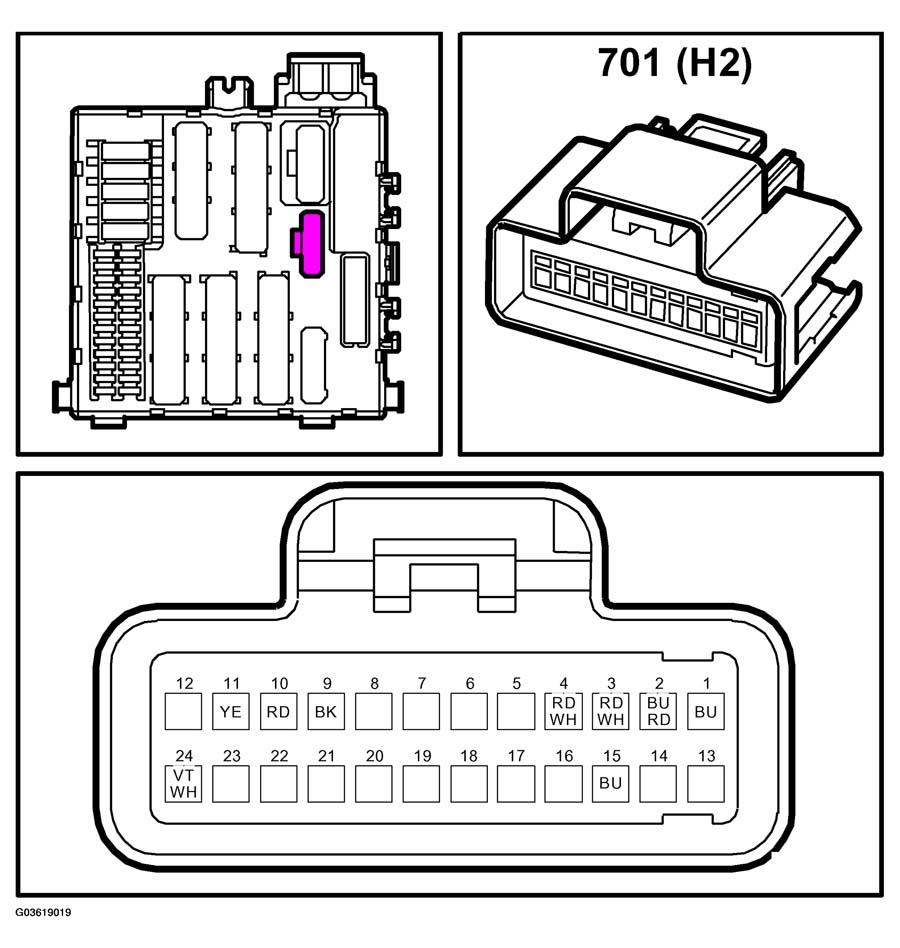

   Fig 5: Head 2 (In Diagram = H2) To Roof Wiring Harness

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
6. Rear (in diagram = R) to rear wiring harness

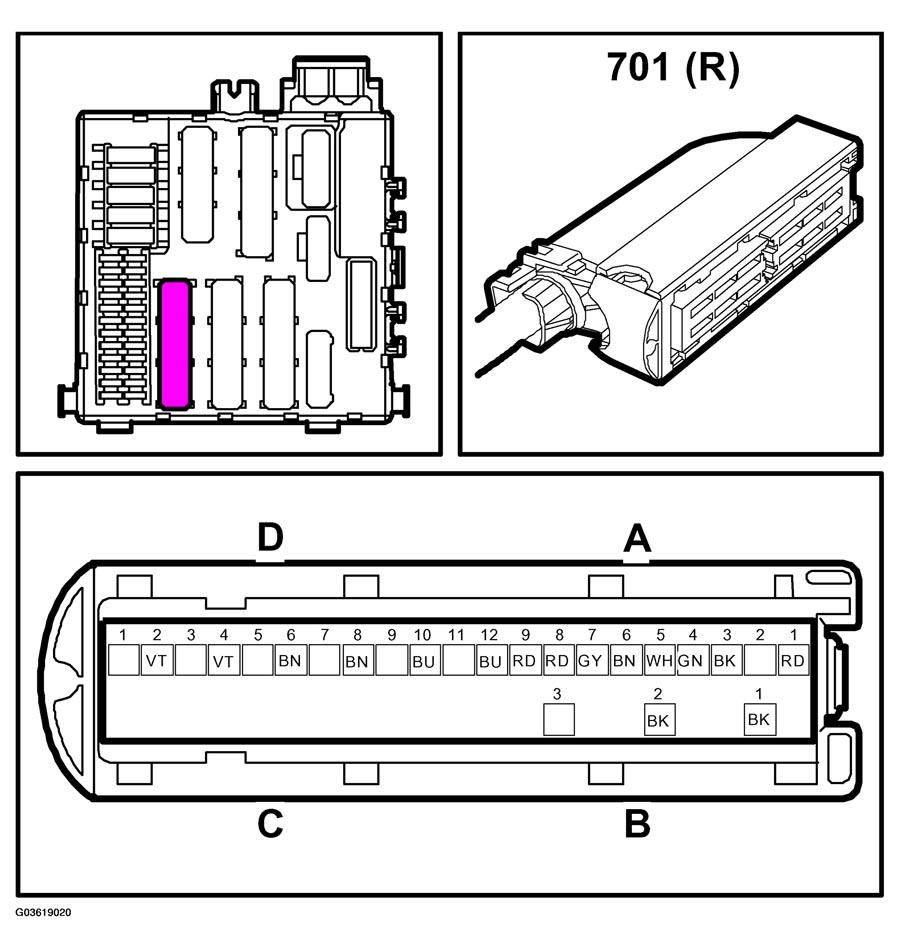

   Fig 6: Rear (In Diagram = R) To Rear Wiring Harness

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
7. Tail (in diagram = T) to parcel shelf wiring harness

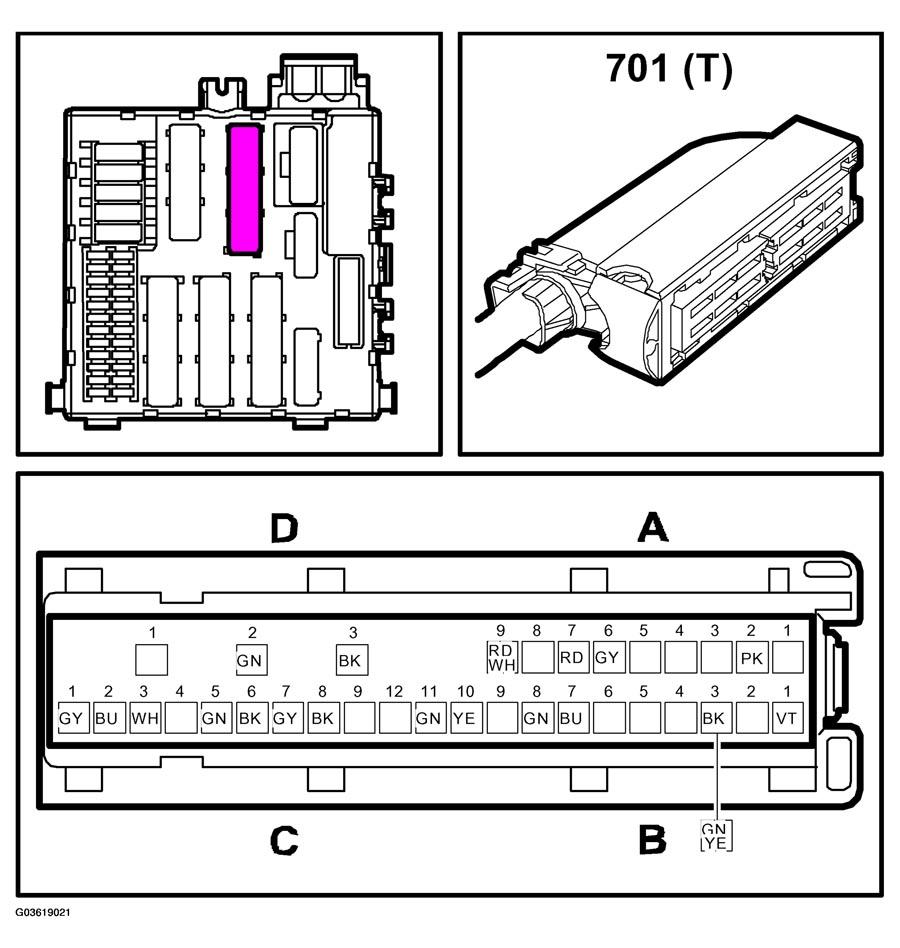

   Fig 7: Tail (In Diagram = T) To Parcel Shelf Wiring Harness

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

The connectors for the main, parcel shelf and rear wiring harnesses each comprise four connectors, which are named A, B, C and D in the wiring diagrams, for example B1-B.

The TR-WH connector is used for a trailer connector. In some cases a special module, TR-MOD, is required.

The electrical centre contains the following power circuits:

+30 power supply, rear electrical centre

+15 power supply, rear electrical centre
