Connected components

CONNECTED COMPONENTS

Via CRIMP J80, INSTRUMENT HARNESS
305	LED, anti-theft alarm
355F	CD player/changer, front
375	Connection, mobile telephone
445	16-pin Data link connector, CARB
540	Main instrument unit
541	SID
658	Yaw sensor
684	Light switch module
703	Steering column unit
736	Infotainment control panel

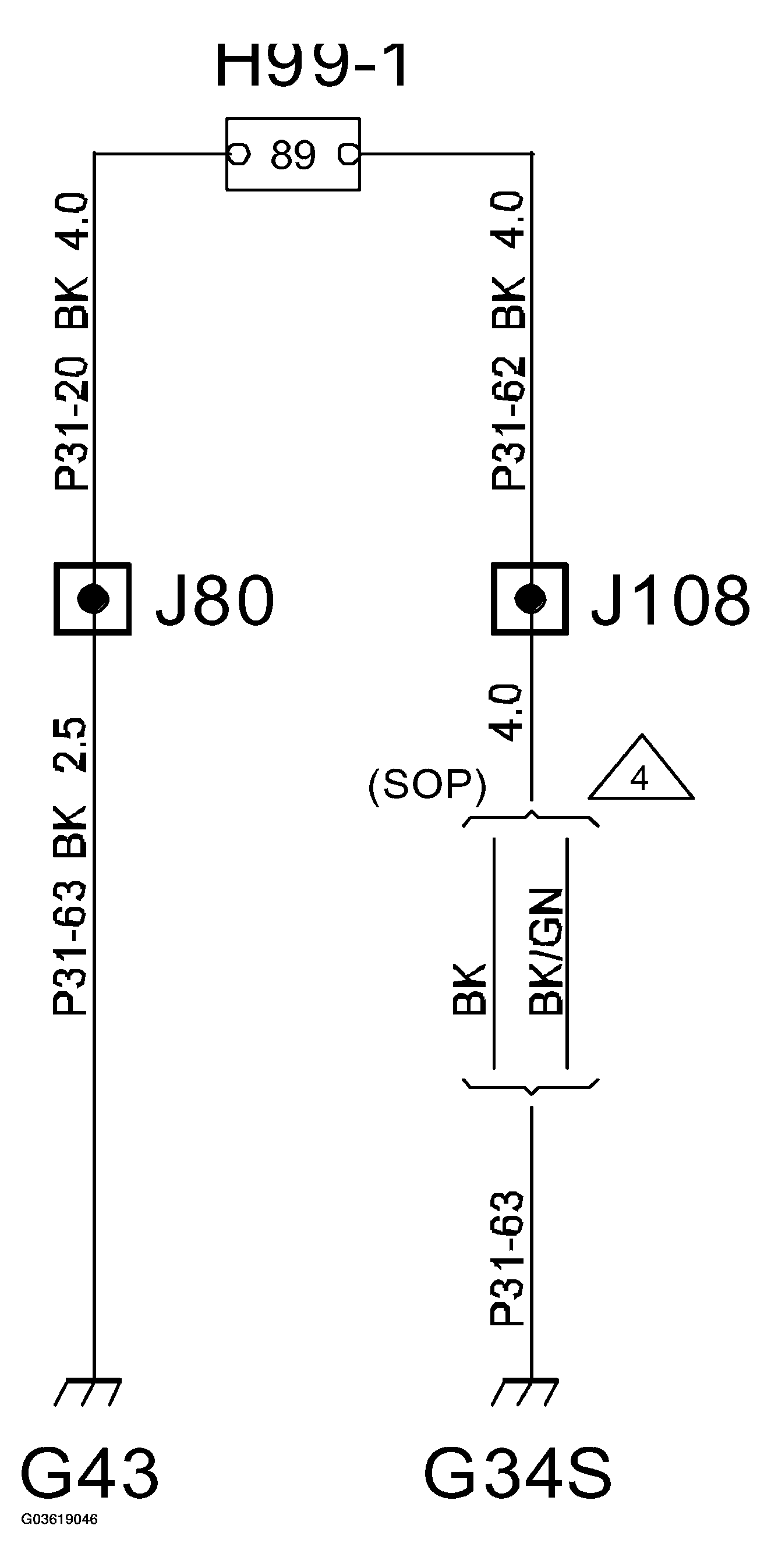

Fig 1: Wiring Diagram - Grounding Point G43

G03619046

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Crimp J80

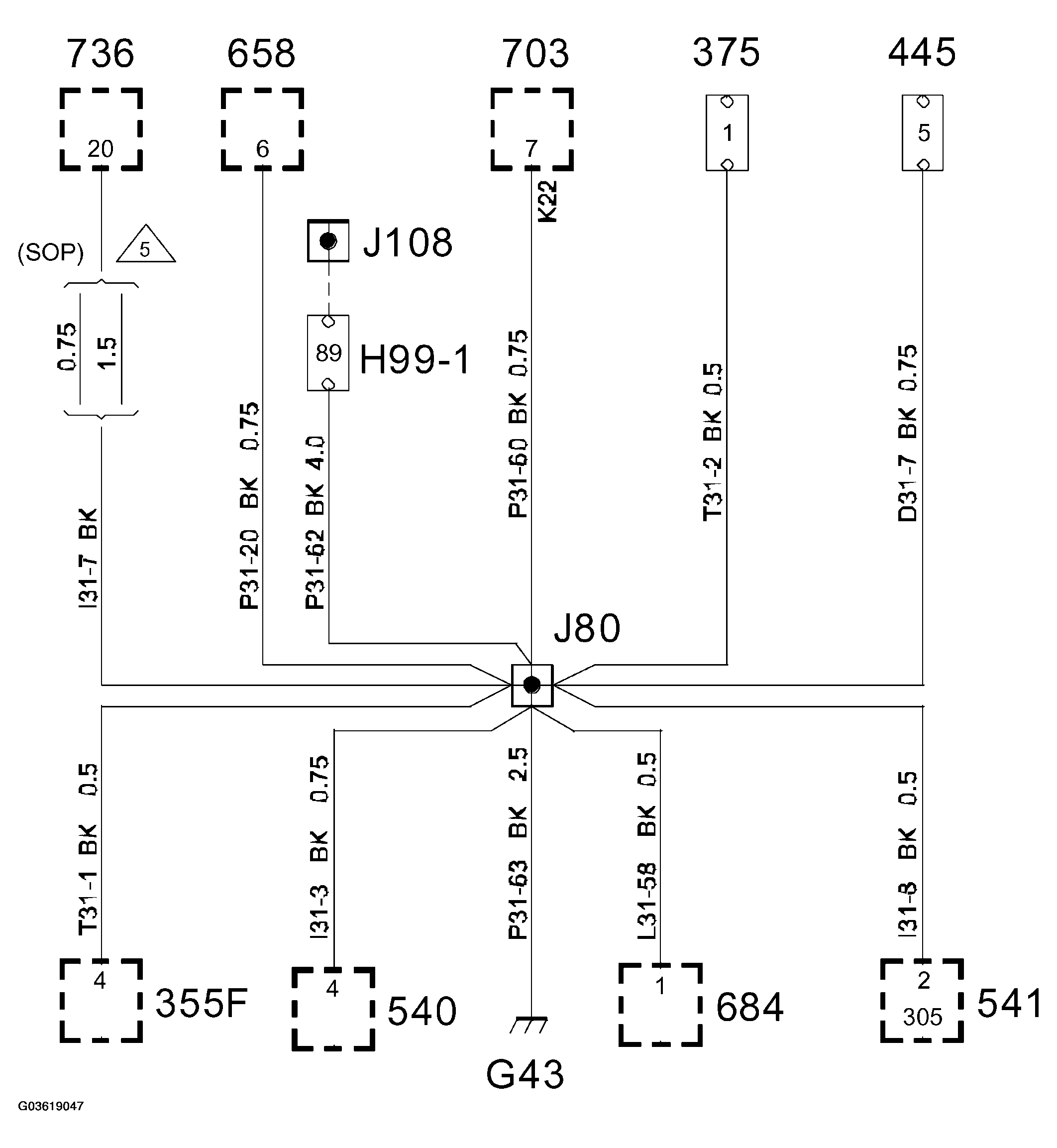

Fig 2: Wiring Diagram - Crimp J80

G03619047

Courtesy of SAAB-SCANIA OF AMERICA, INC.
