Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Telematics And Navigation (Late; 9440) >> Component location >> Grounding point G14 >> Location: >> Connected components:

Connected components:

CONNECTED COMPONENTS

  Via crimp J99, main wiring harness
354F Amplifier, front speakers
354R Amplifier, rear speakers
729 DVD module

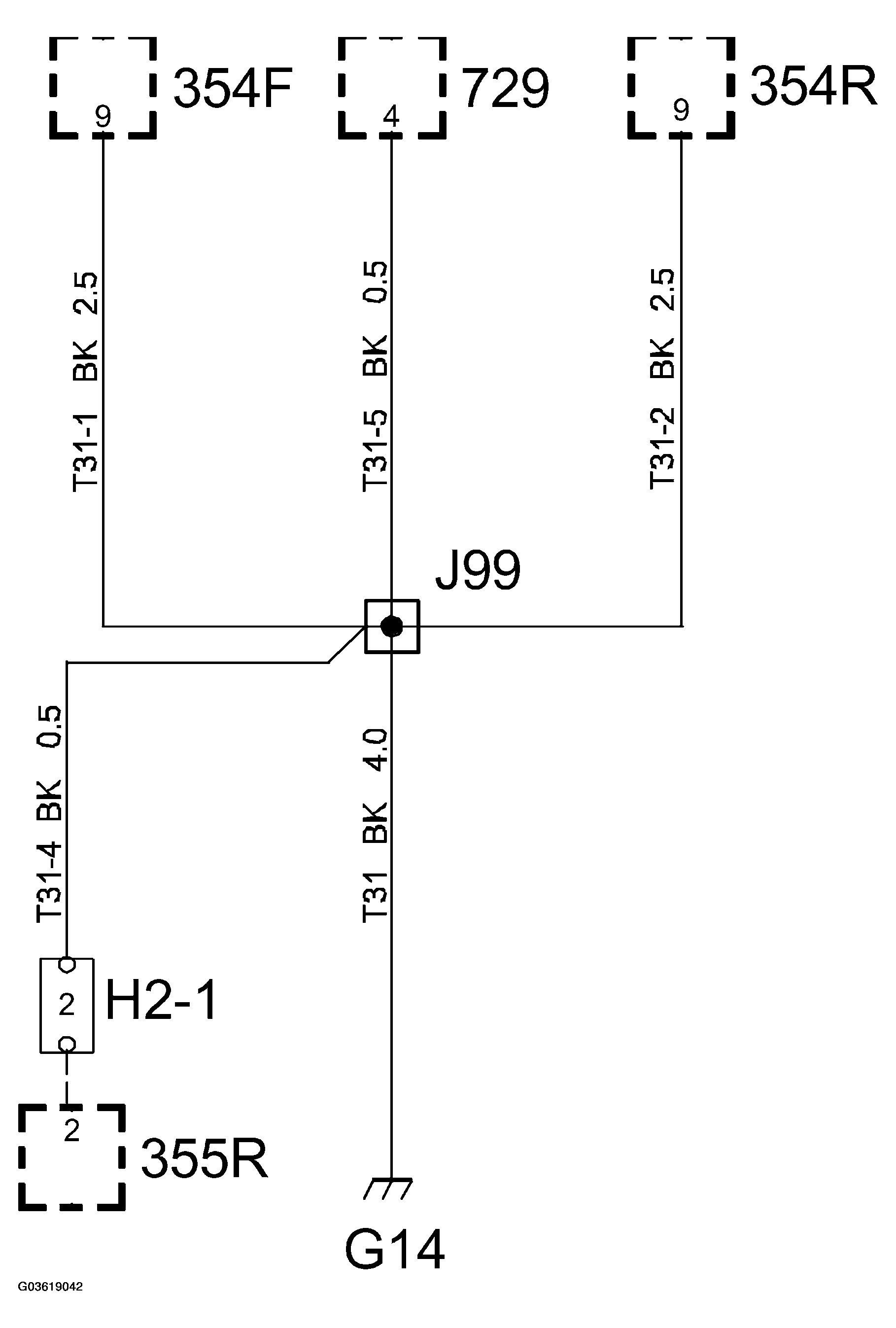

Fig 1: Connected Component Circuit
G03619042Courtesy of SAAB-SCANIA OF AMERICA, INC.
