Crimp connection J76, dashboard harness: Location:: RHD:

Approximately 130 mm from grounding point G43 branching point towards the radio

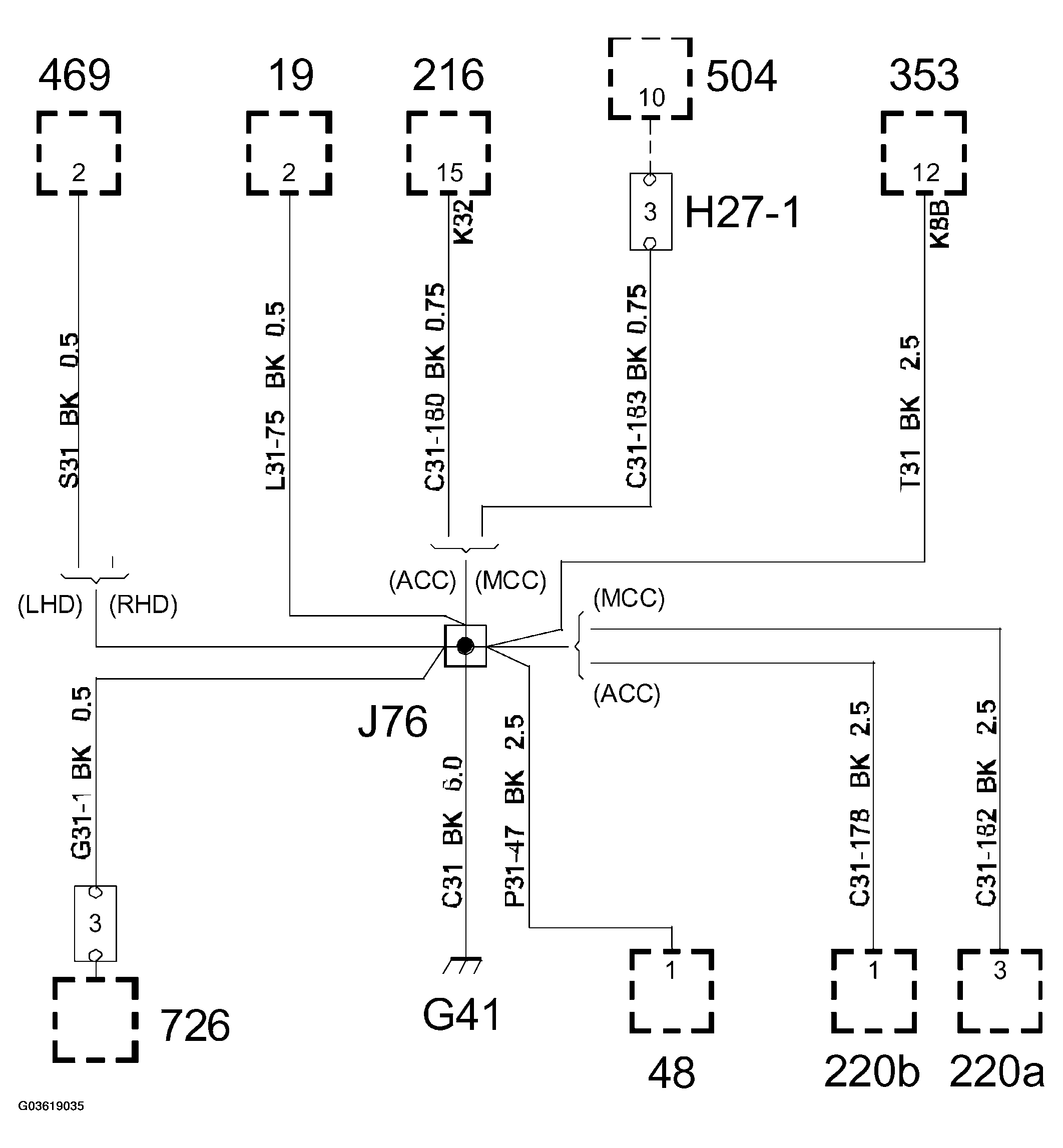

Fig 1: Wiring Diagram - Crimp Connection J76, Dashboard Harness
G03619035Courtesy of SAAB-SCANIA OF AMERICA, INC.
