Crimp connection J141, parcel shelf harness: Location:

Approx. 330 mm from the branching point of connector H10-6 towards the electrical centre

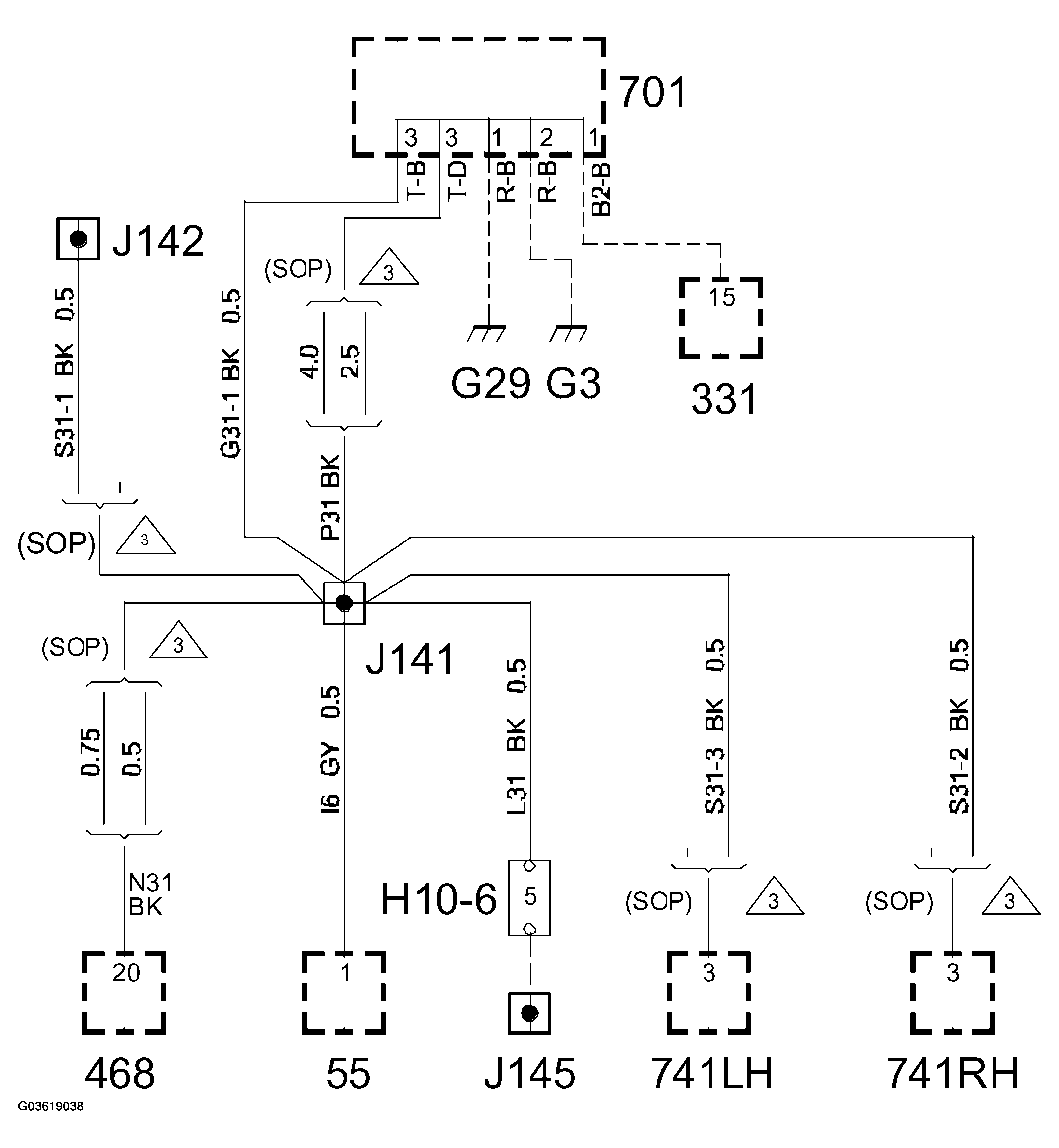

Fig 1: Wiring Diagram - Crimp Connection J141, Parcel Shelf Harness
G03619038Courtesy of SAAB-SCANIA OF AMERICA, INC.
