Crimp J99, main wiring harness: Location:

Approx. 480 mm from the branch to the grounding point G33P/S towards the left-hand rear door

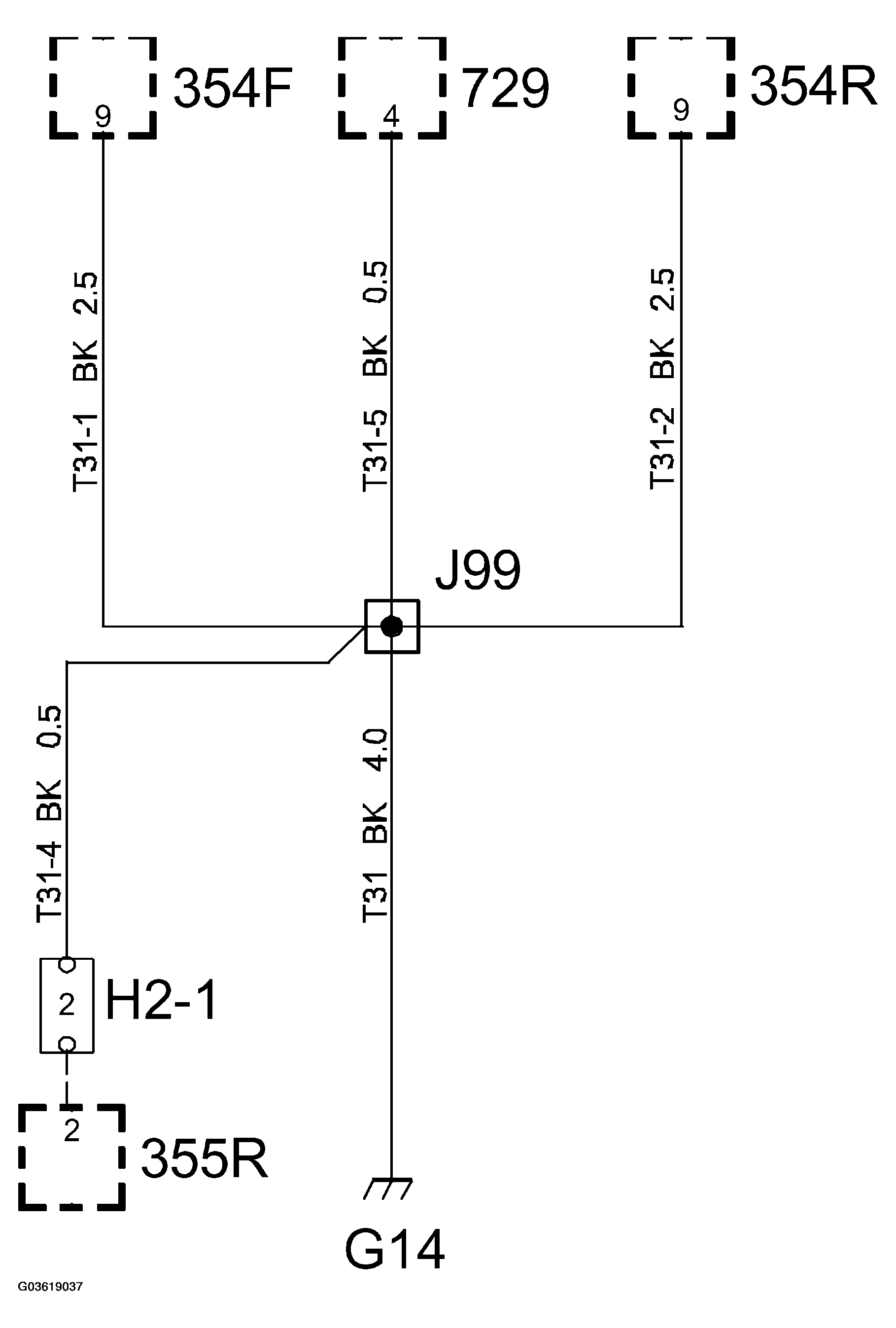

Fig 1: Wiring Diagram - Crimp J99, Main Wiring Harness
G03619037Courtesy of SAAB-SCANIA OF AMERICA, INC.
