Crimp J80, instrument harness: Location:: RHD:

Approx. 70 from branching point grounding point G43 towards SID

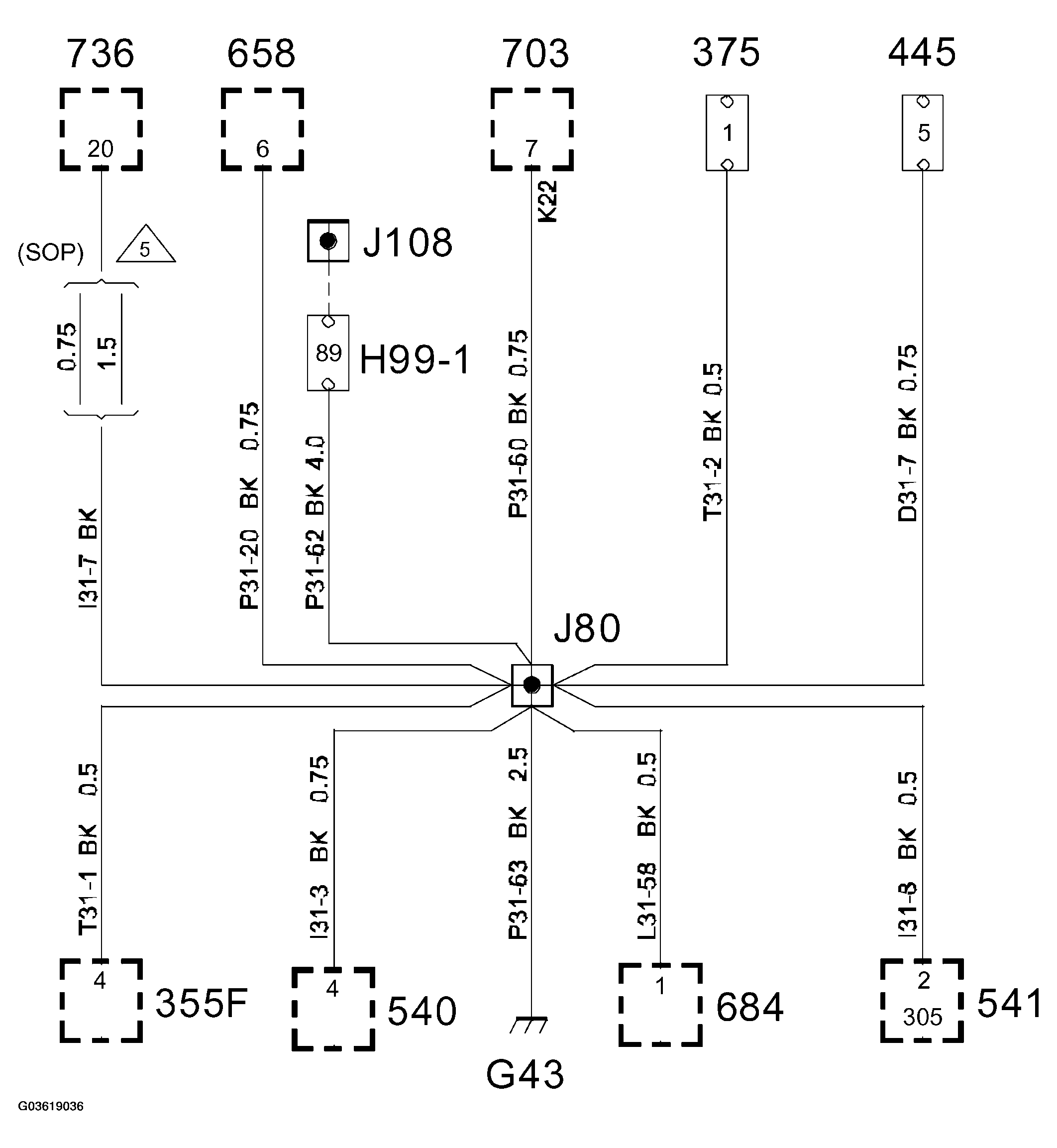

Fig 1: Wiring Diagram - Crimp J80, Instrument Harness
G03619036Courtesy of SAAB-SCANIA OF AMERICA, INC.
