Home >> Saab >> 2003 >> 9-3 Vector, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Telematics And Navigation (Late; 9440) >> Component location >> Airbag control module (331) >> Location: >> K75

Airbag control module (331): Location:: K75

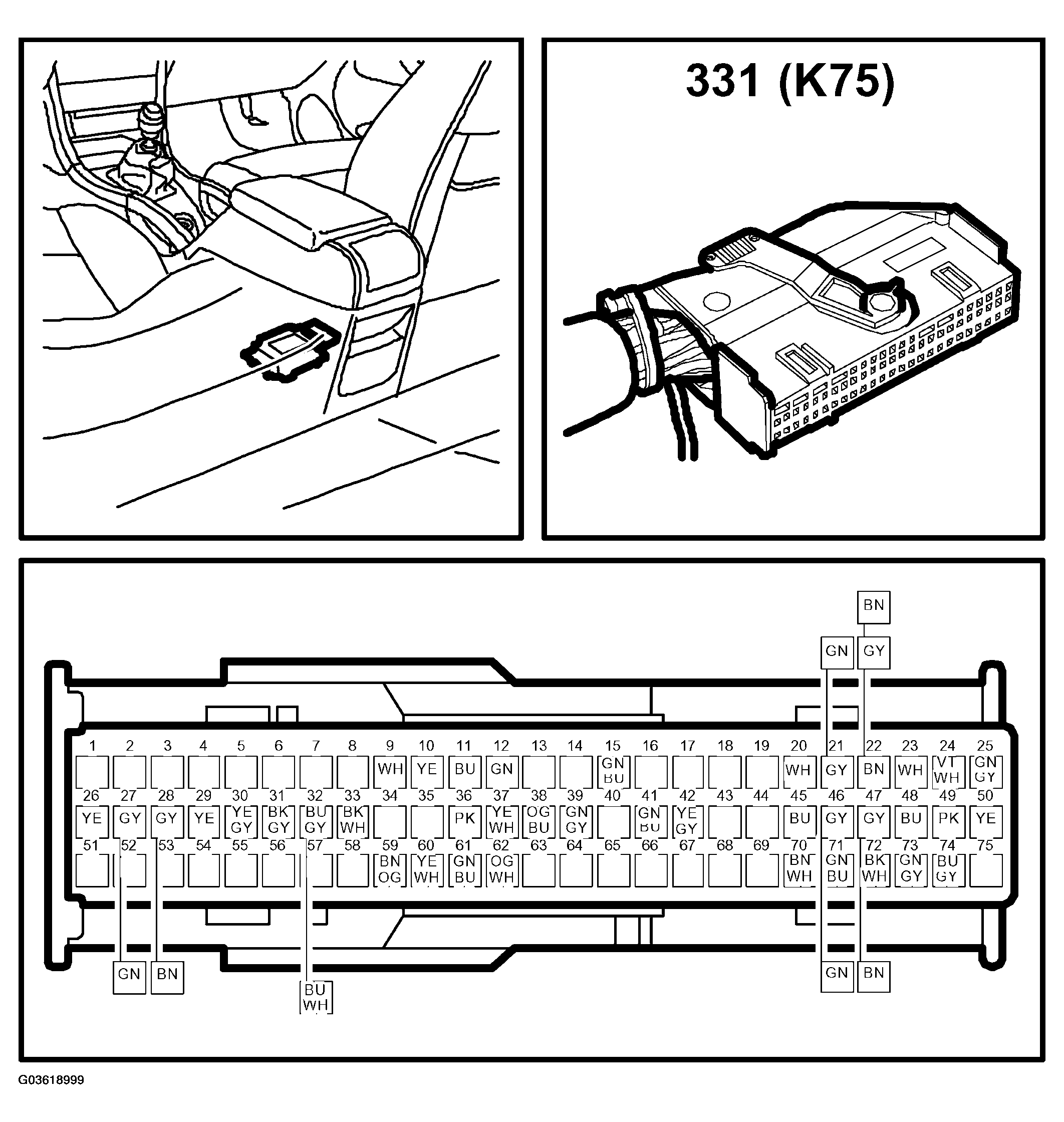

Fig 1: Identifying Airbag Control Module (331) K75 Location
G03618999Courtesy of SAAB-SCANIA OF AMERICA, INC.


Fig 1: Identifying Airbag Control Module (331) K75 Location
G03619001Courtesy of SAAB-SCANIA OF AMERICA, INC.
