To fit

  1. Place the telematics unit in the correct position.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  2. Plug in the connector.
  3. Fit the screws.

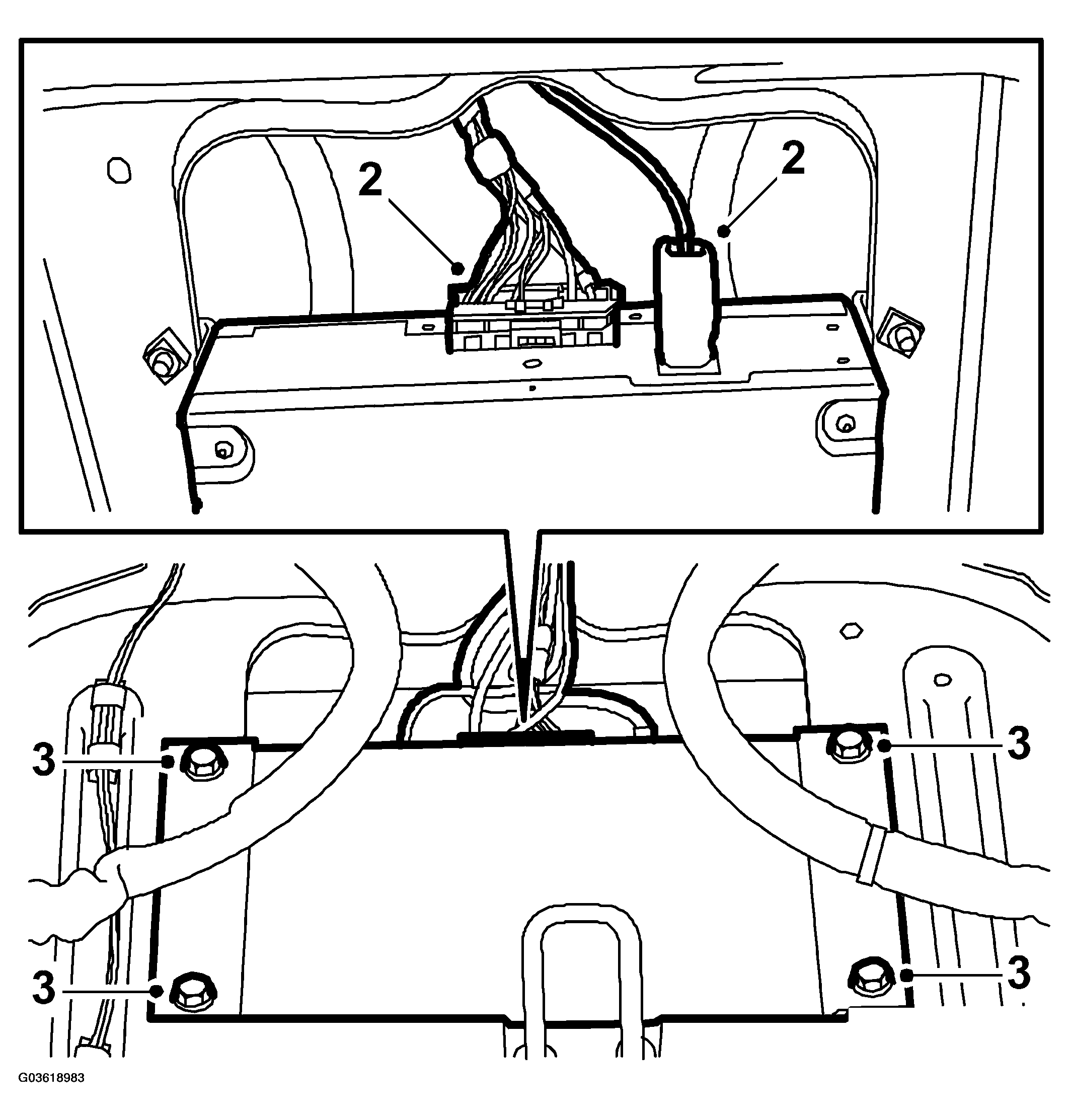

    4. Fig 1: Illustration For Steps 2 And 3
    G03618983Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the parcel shelf trim.

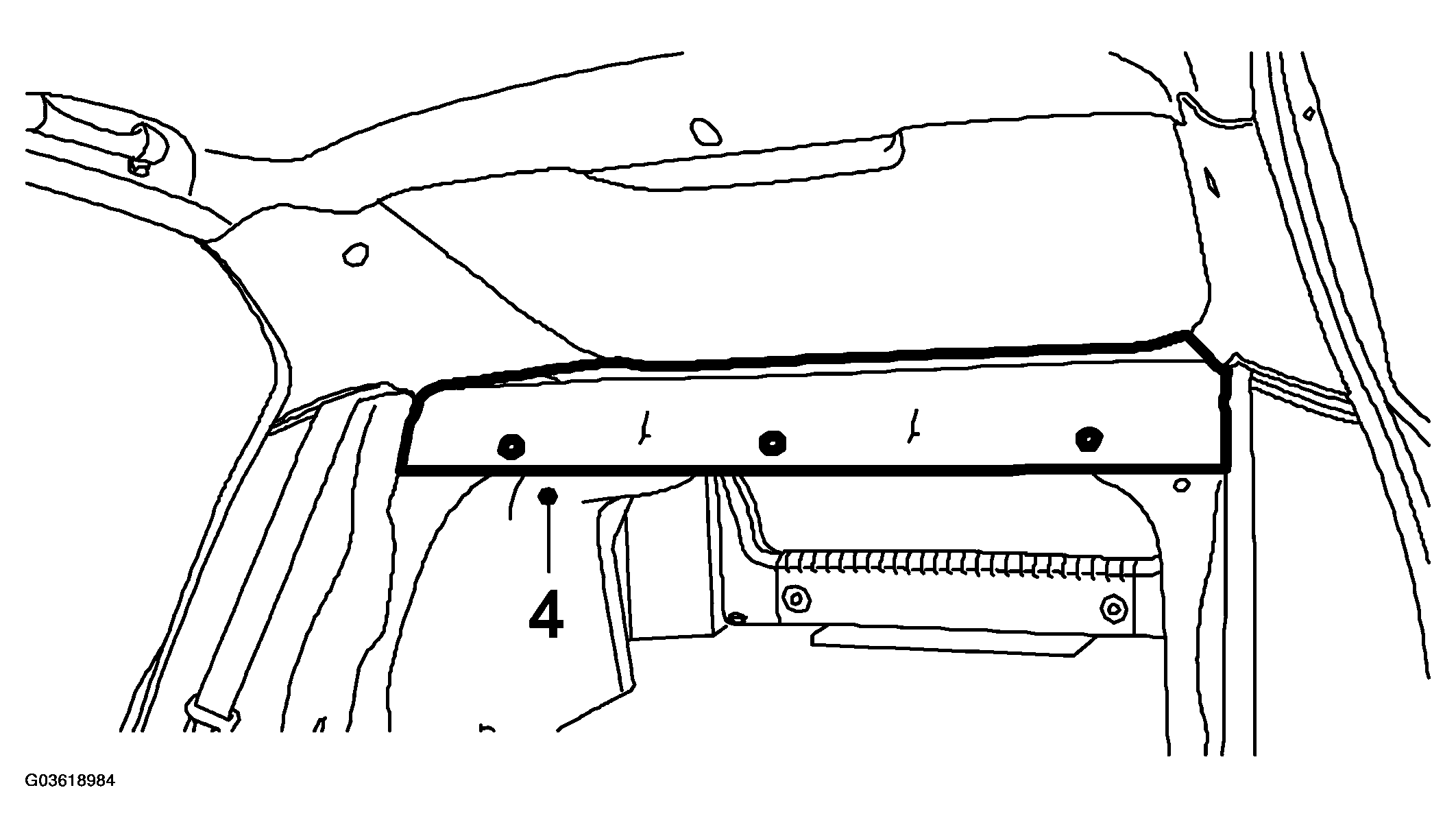

    Fig 2: Fitting Parcel Shelf Trim
    G03618984Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Carry out procedures after changing a control module.
