To remove

  1. Remove the ACC/MCC unit with 82 93 474 REMOVAL TOOL .
    Fig 1: Removing ACC/MCC Unit
    G03618989Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the OnStar panel by releasing the catches on the rear edge of the panel.

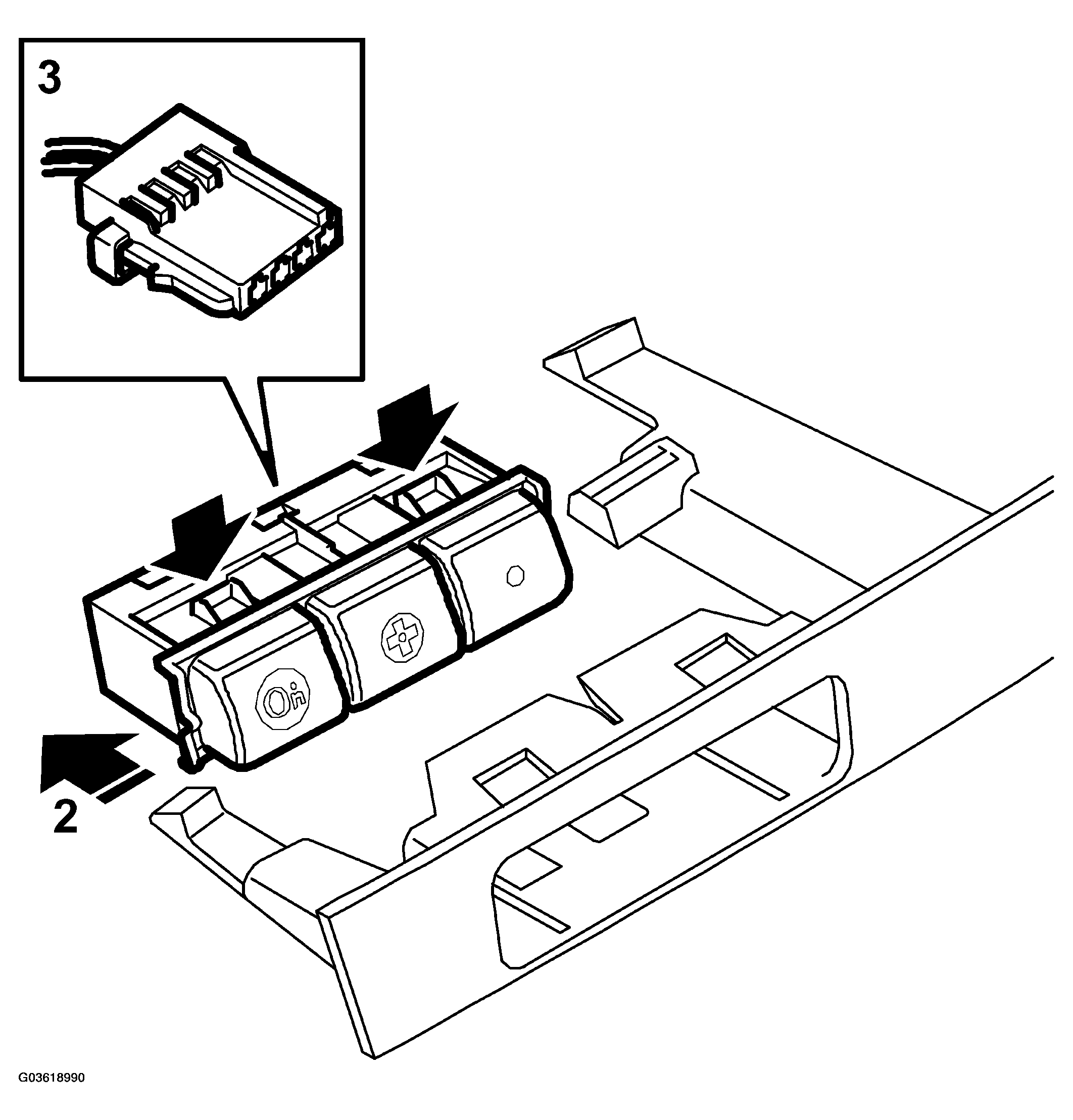

    Fig 2: Removing Onstar Panel
    G03618990Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Unplug the OnStar-panel connector.
