To fit

  1. Plug in the OnStar-panel connector
  2. Fit the OnStar panel into place in the instrument panel. Check that all catches and guides are correctly positioned.

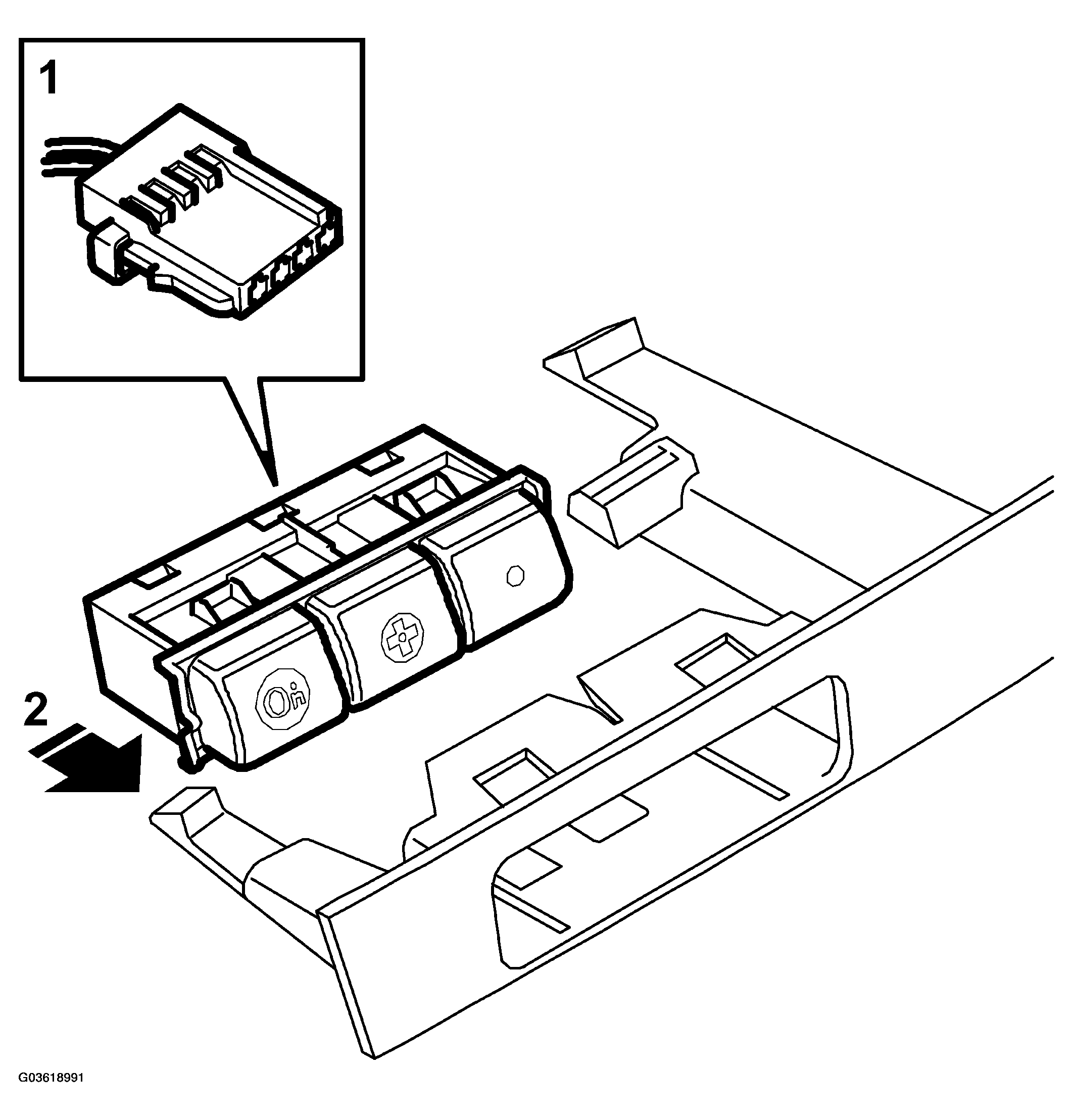

    3. Fig 1: Fitting Onstar Panel
    G03618991Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the ACC/MCC unit.

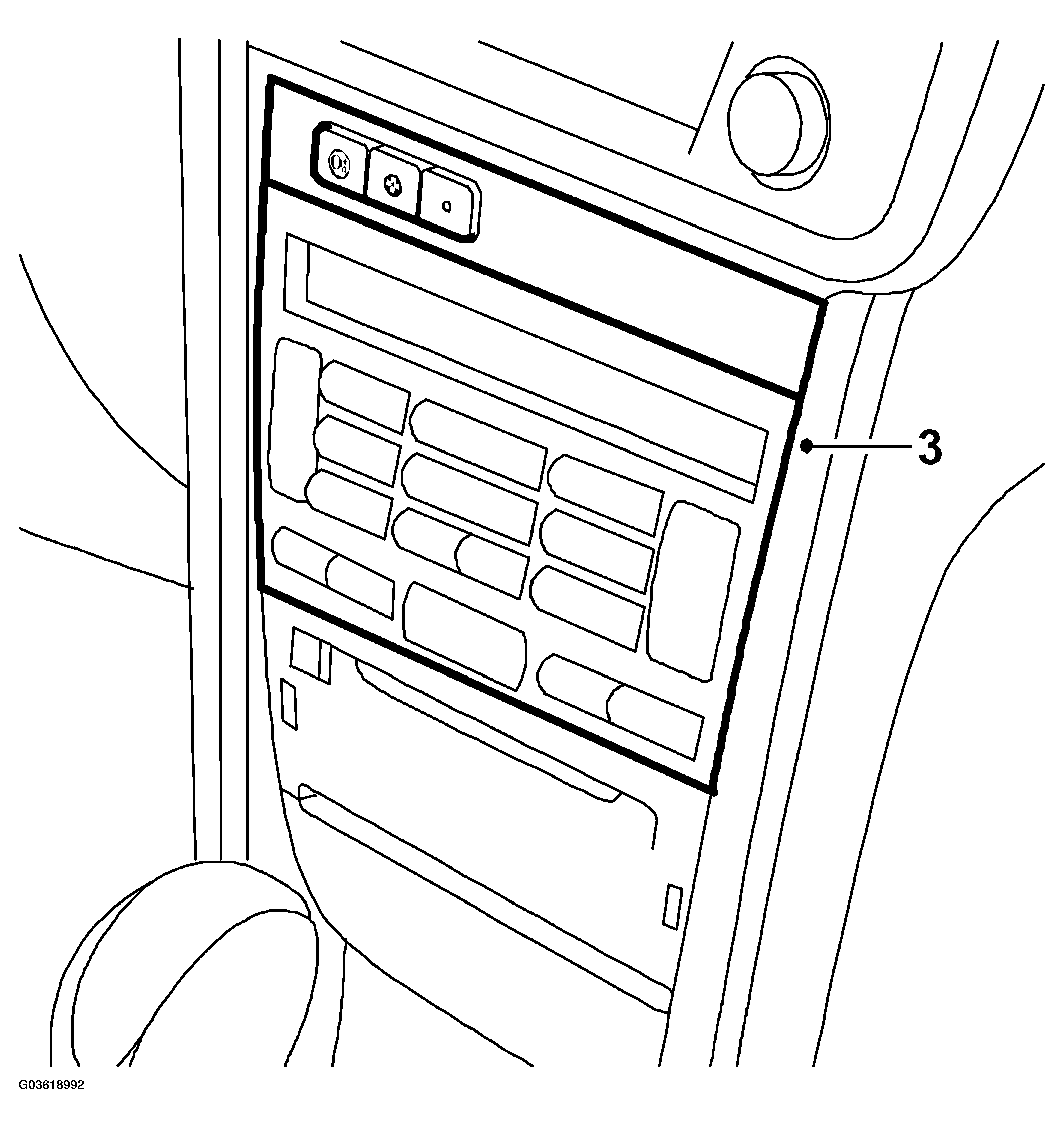

    Fig 2: Fitting ACC/MCC Unit
    G03618992Courtesy of SAAB-SCANIA OF AMERICA, INC.
