To fit

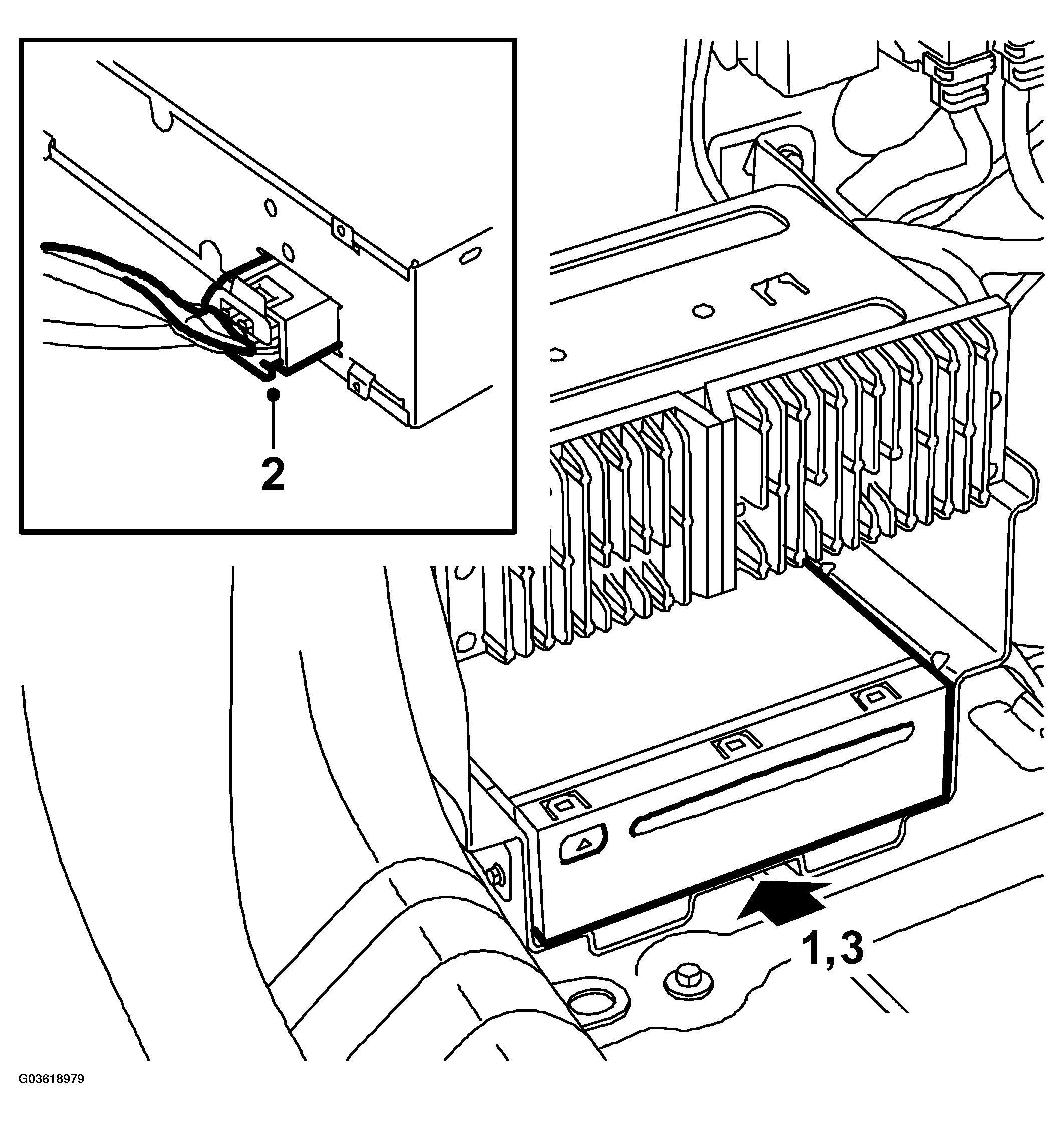

- Fit the DVD unit but only press it in half way.
IMPORTANT:
Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
- Plug in the connector.
- Press in the DVD unit.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Cars with rear CD changer:
Fit the bracket.

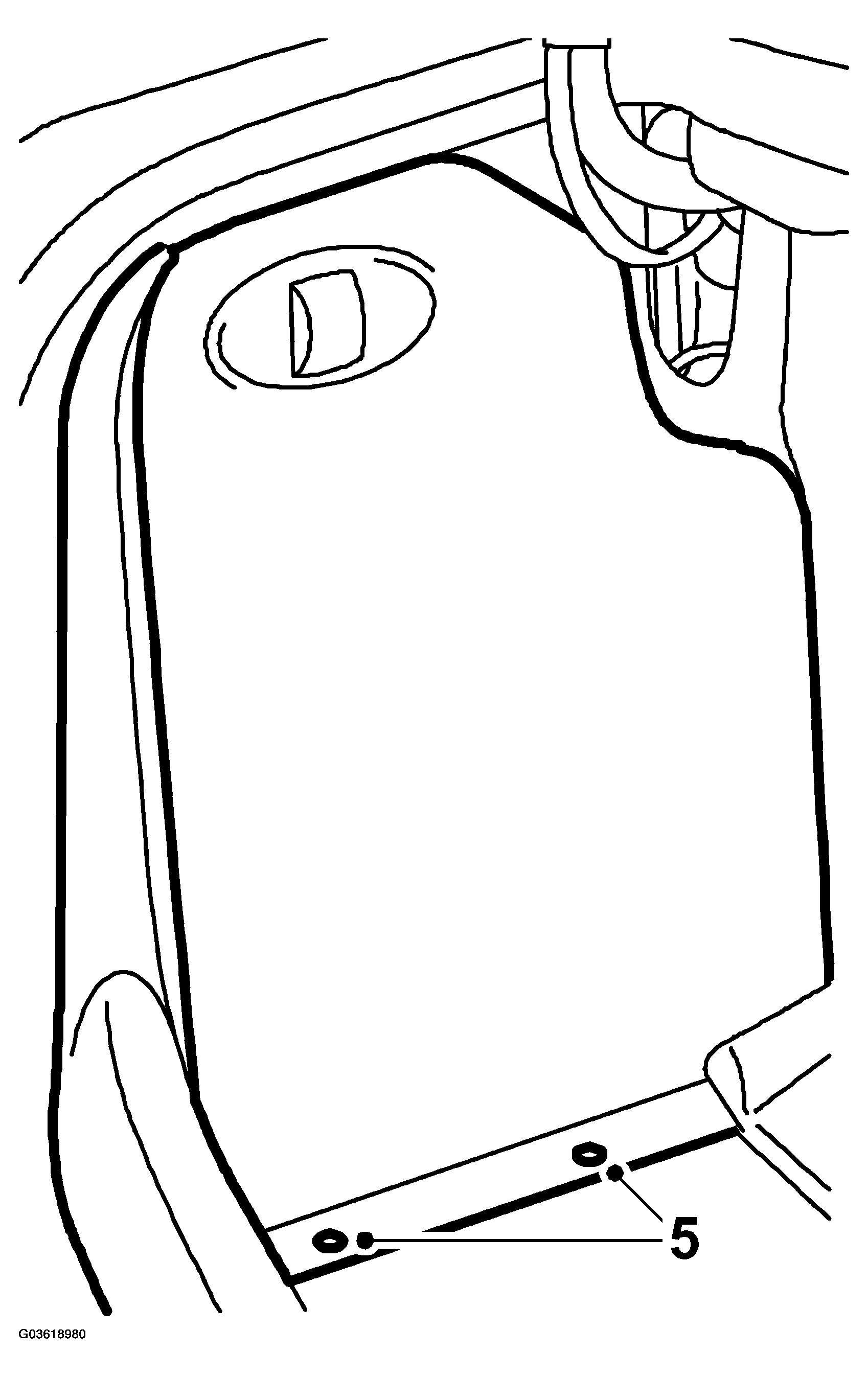

- Fit the left hand inspection hatch.
- Refit the floor panel.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Close the luggage compartment.
- Carry out procedures after changing a control module.
- Carry out a function check.
