To remove

  1. Remove the inner roof lining.

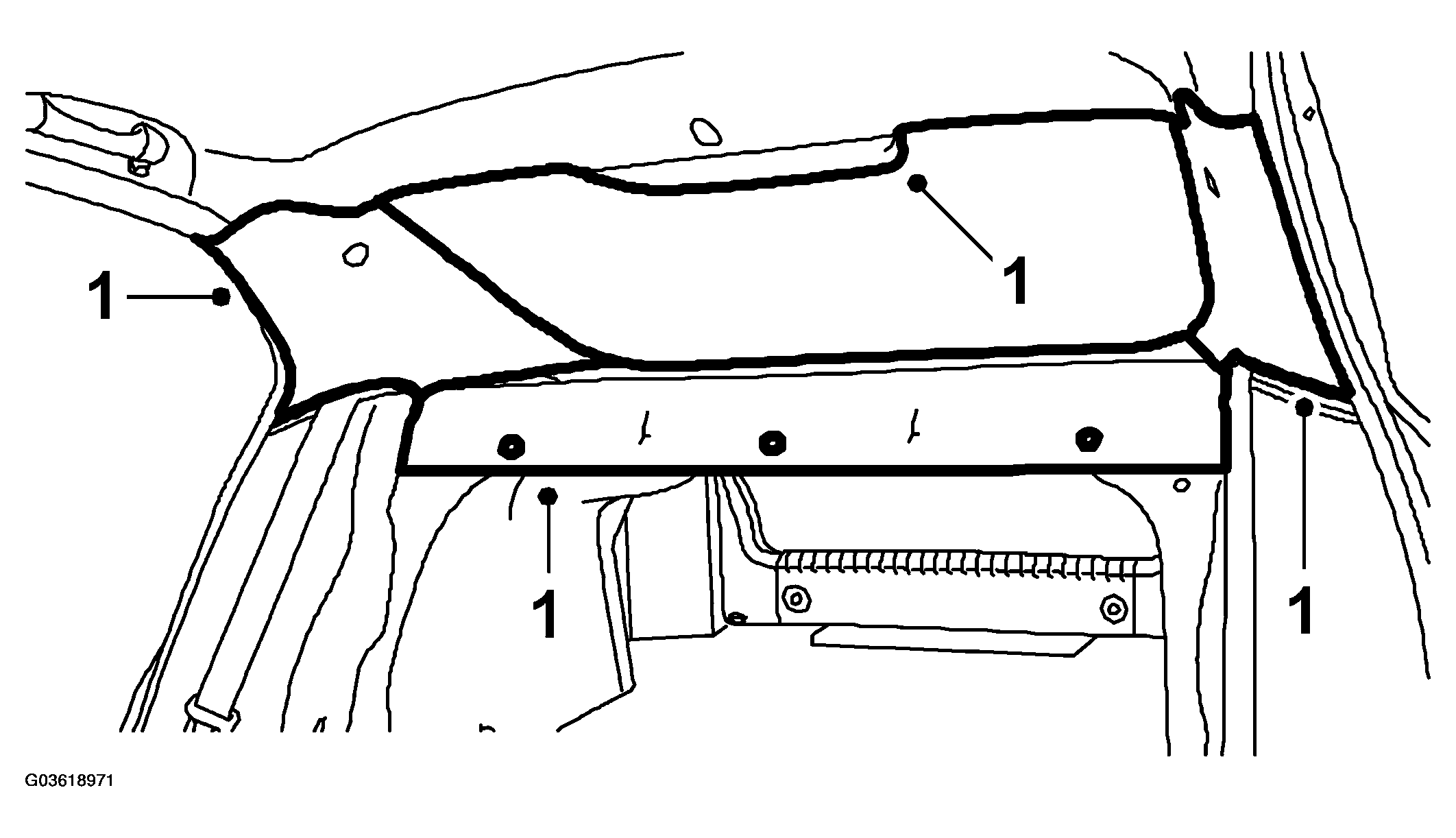

    Fig 1: Removing Inner Roof Lining
    G03618971Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the nut securing the antenna.
  3. Unplug the connector with the help of a small screwdriver.

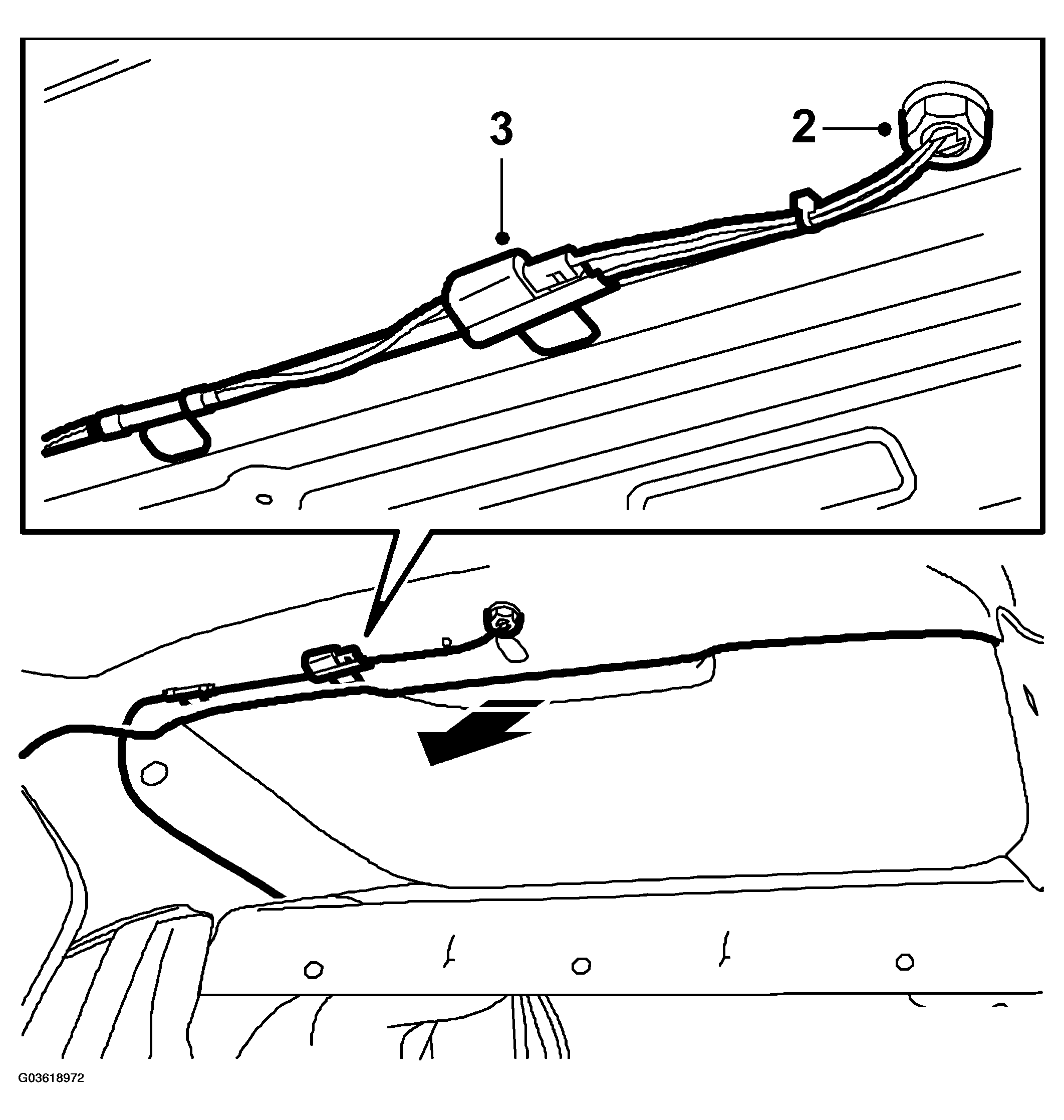

    4. Fig 2: Illustration For Steps 2 And 3
    G03618972Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the antenna by carefully coaxing it up.

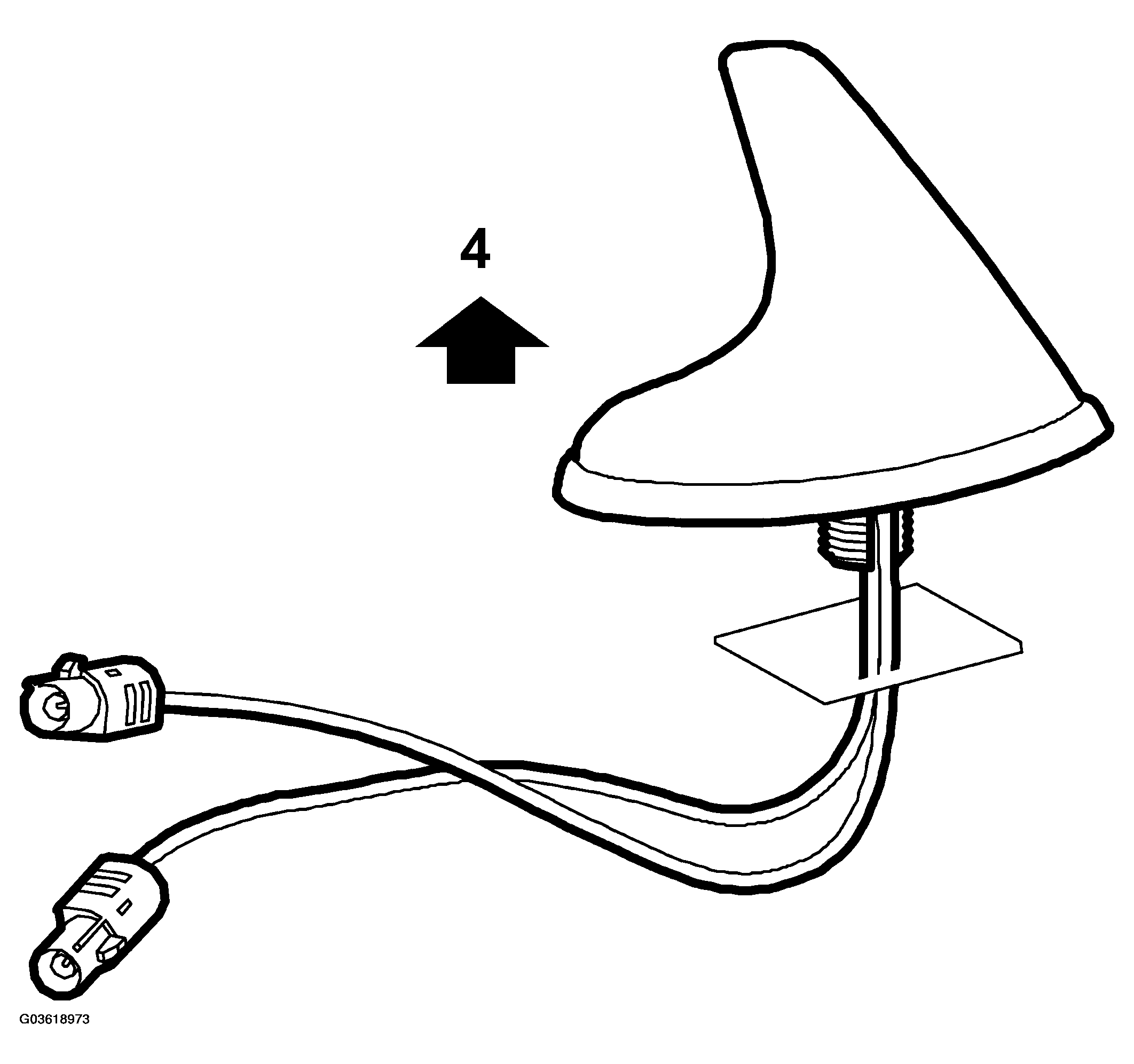

    Fig 3: Removing Antenna
    G03618973Courtesy of SAAB-SCANIA OF AMERICA, INC.
