To fit

  1. Fit the antenna.

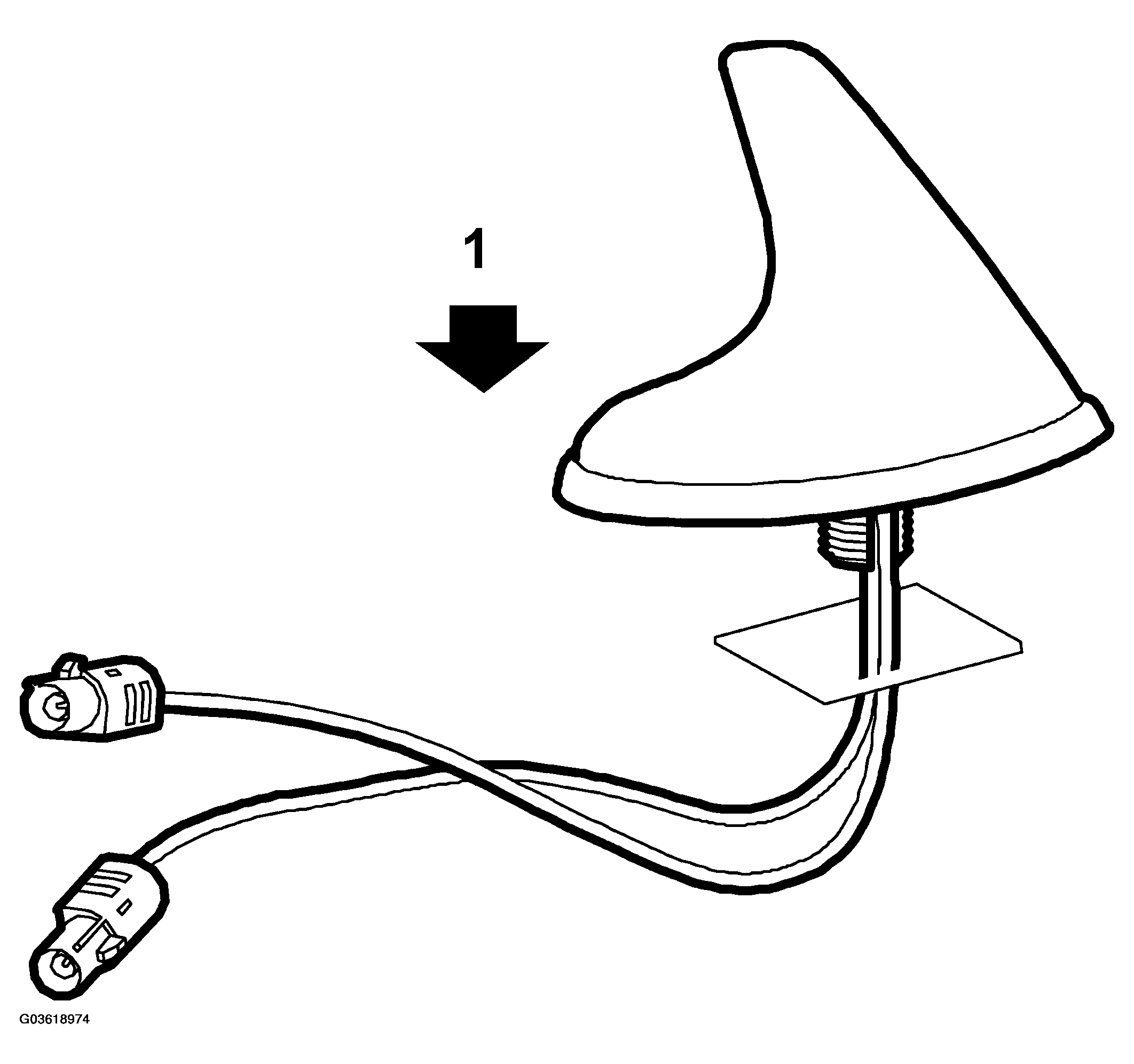

    Fig 1: Fitting Antenna
    G03618974Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Fit the nut securing the antenna.

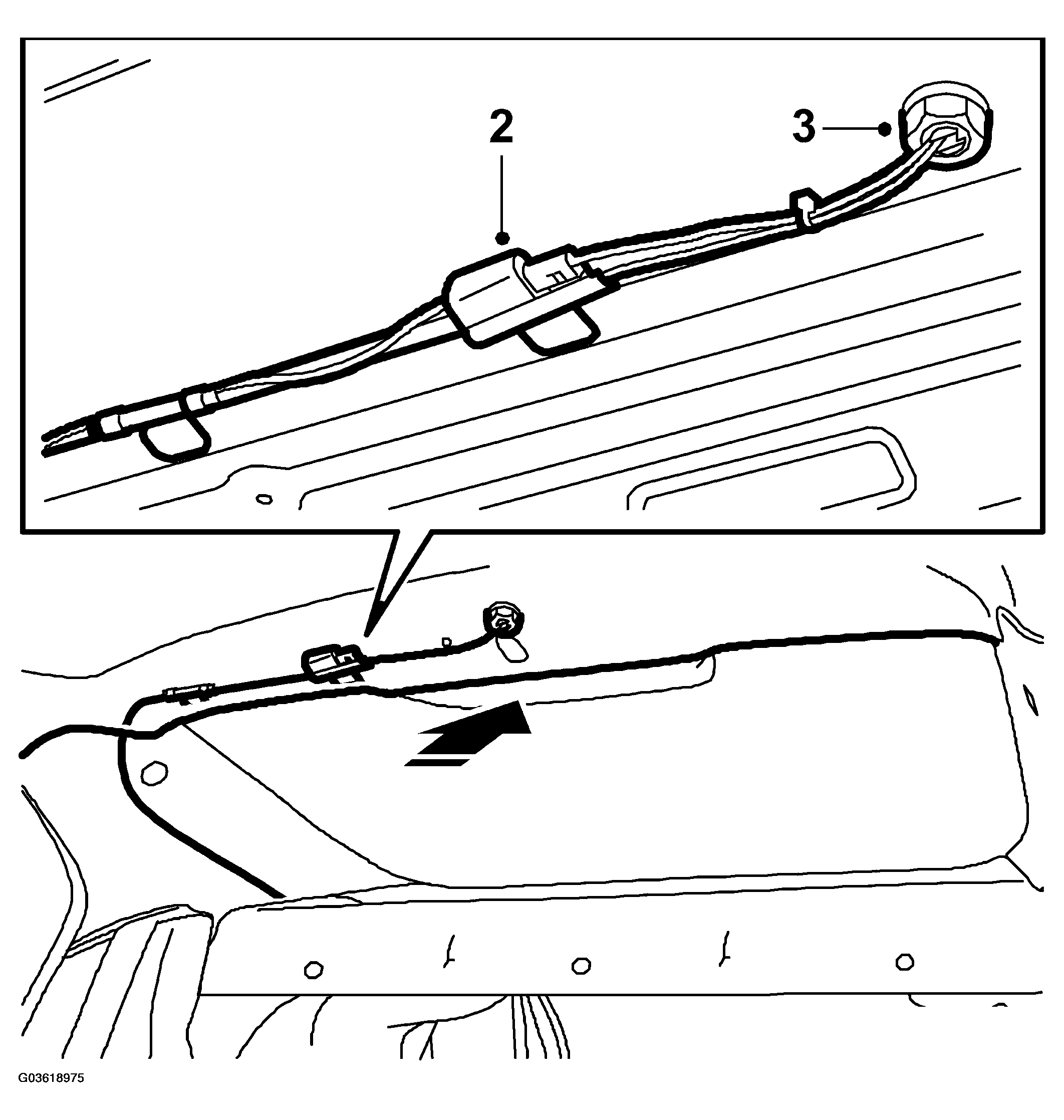

    4. Fig 2: Illustration For Steps 2 And 3
    G03618975Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the inner roof lining.

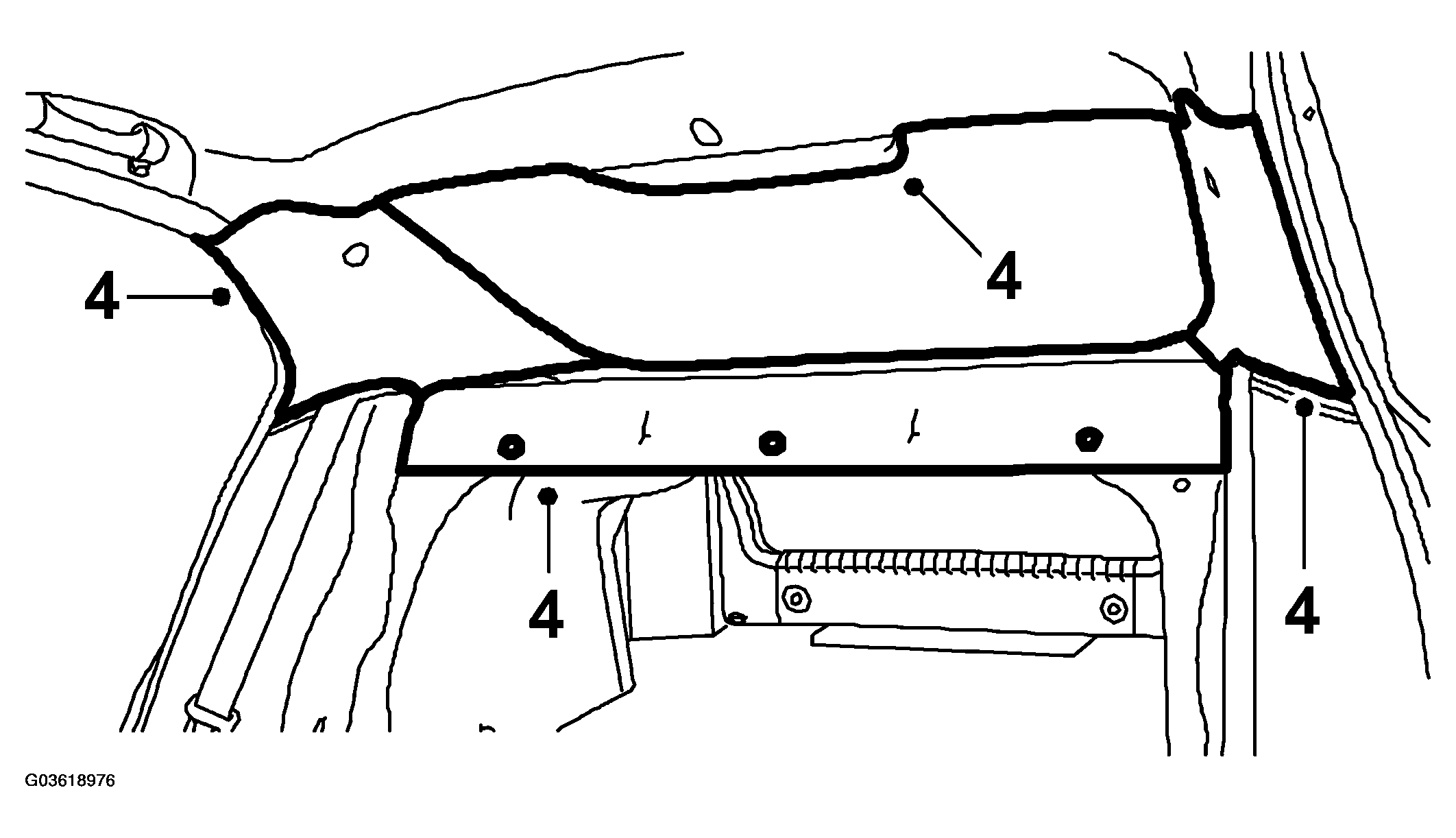

    Fig 3: Fitting Inner Roof Lining
    G03618976Courtesy of SAAB-SCANIA OF AMERICA, INC.
