Saab
>>
2003
>>
9-3 Vector, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Main Instrument Panel, Petrol (Early; 9400)
>>
Technical Description
>>
System overview
System overview

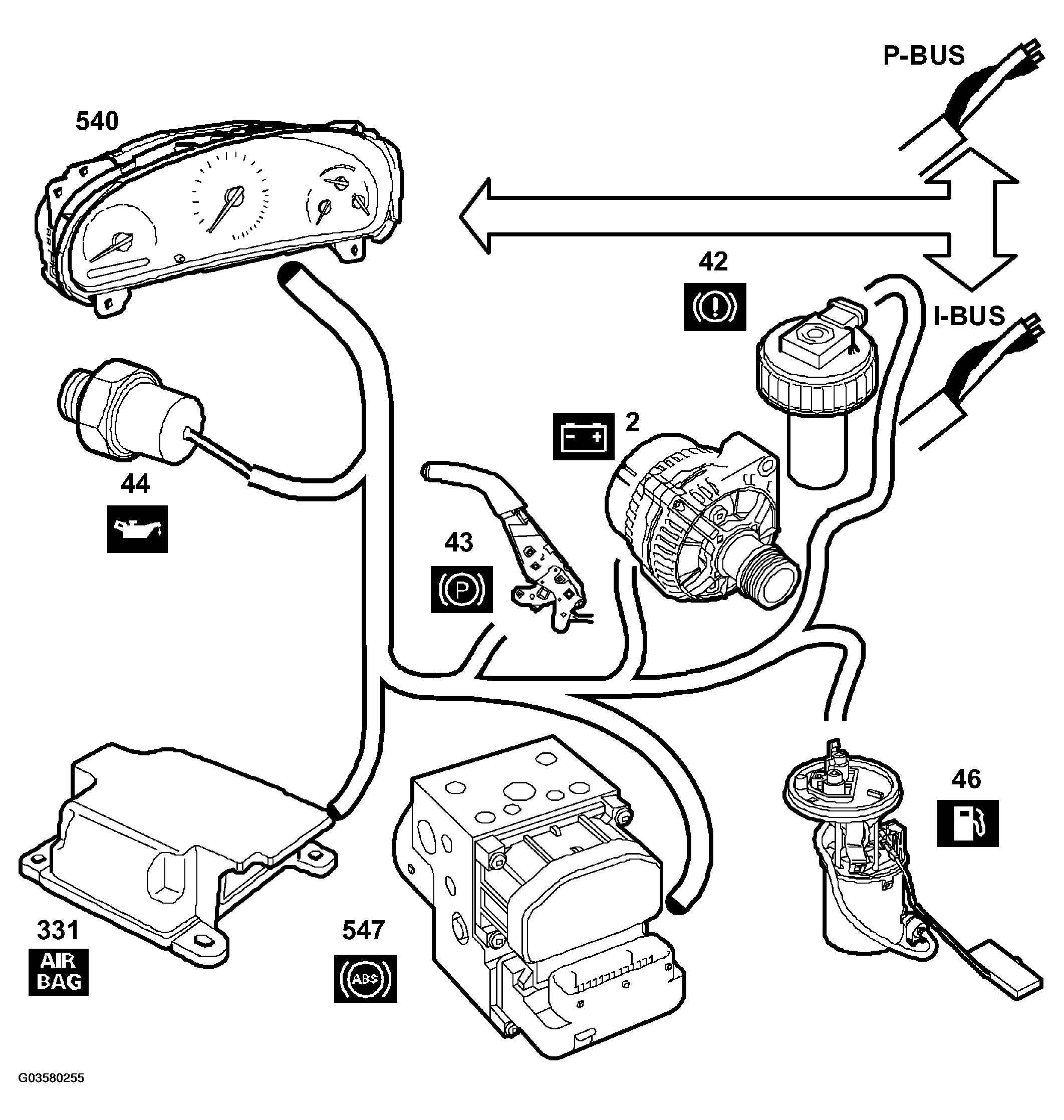

Fig 1: Identifying Instrument Panel System Overview
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Main Instrument Unit (540d)
Engine oil pressure sensor (44)
Switch, handbrake (43)
Generator (2)
Level switch, brake fluid (42)
Level sensor, fuel (46)
Control module, ABS (547)
Control module, SRS/Airbag (331)
