System overview, functions, cars with engine management system Trionic T7: RHD

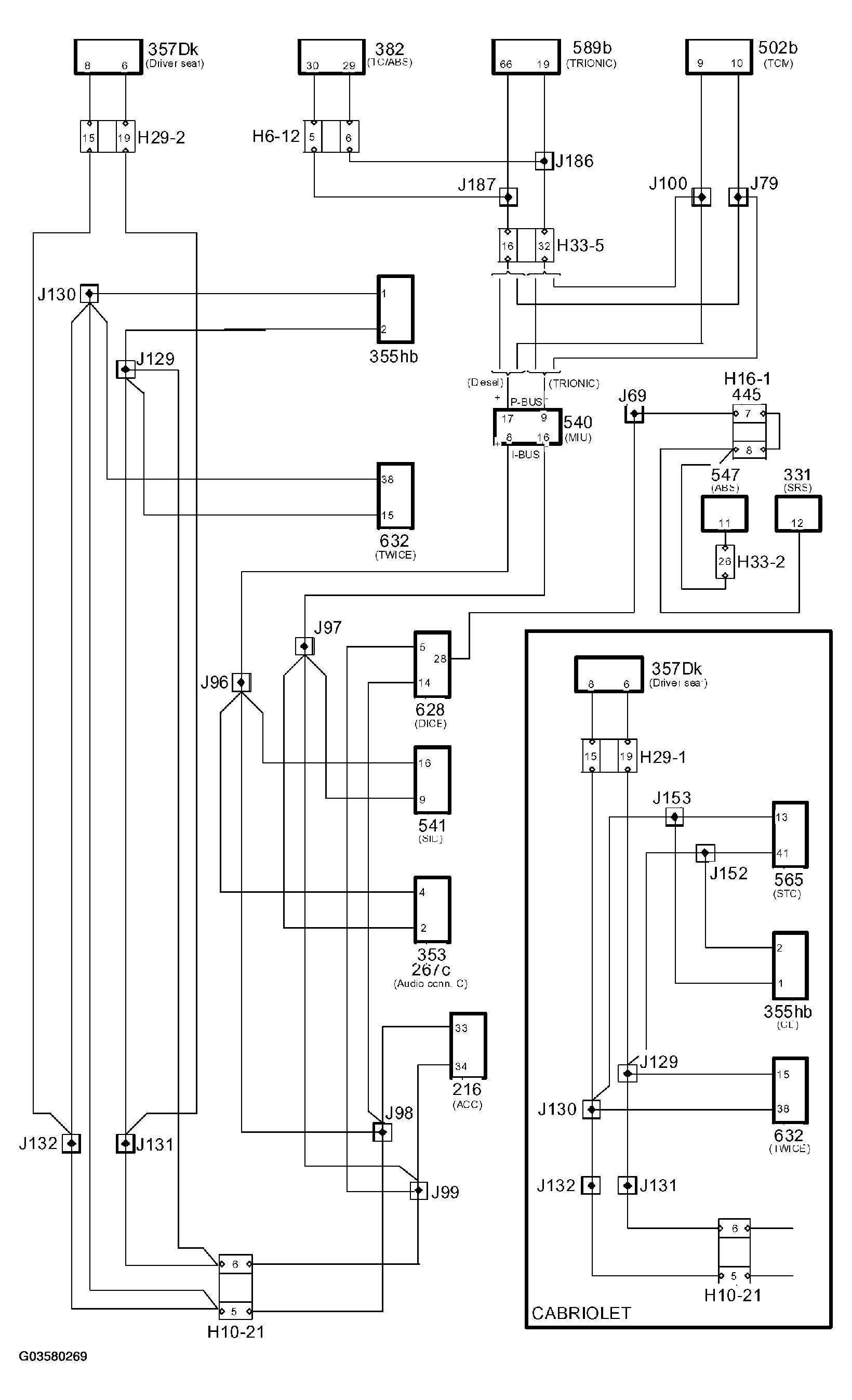

Fig 1: Bus And Diagnostics Circuit Diagram - Cars With Engine Management System Trionic T7 (RHD)
G03580269Courtesy of SAAB-SCANIA OF AMERICA, INC.
