System overview, functions, cars with engine management system Trionic T7: LHD

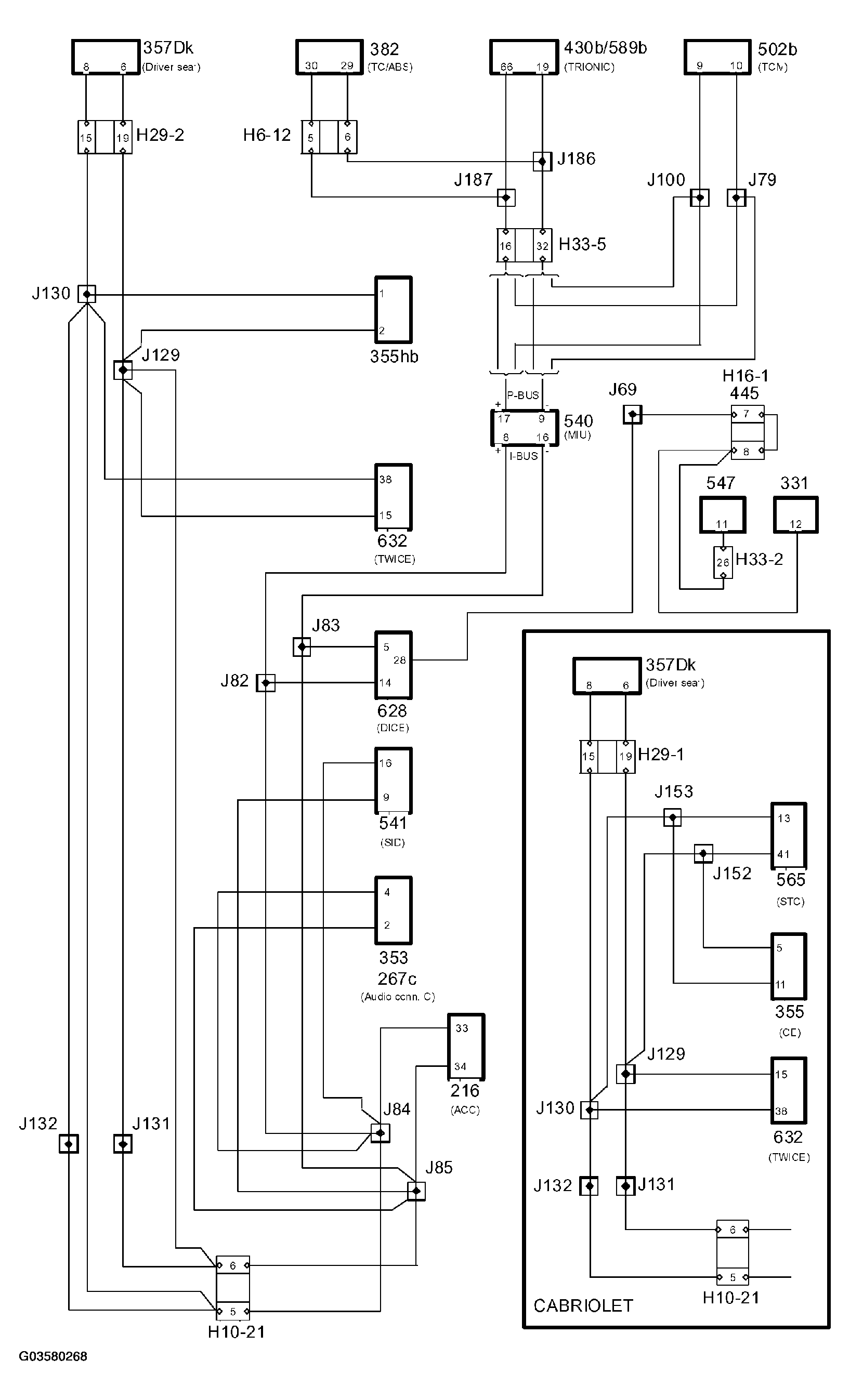

Fig 1: Bus And Diagnostics Circuit Diagram - Cars With Engine Management System Trionic T7 (LHD)
G03580268Courtesy of SAAB-SCANIA OF AMERICA, INC.
