System overview, functions, cars with engine management system PSG 16: LHD

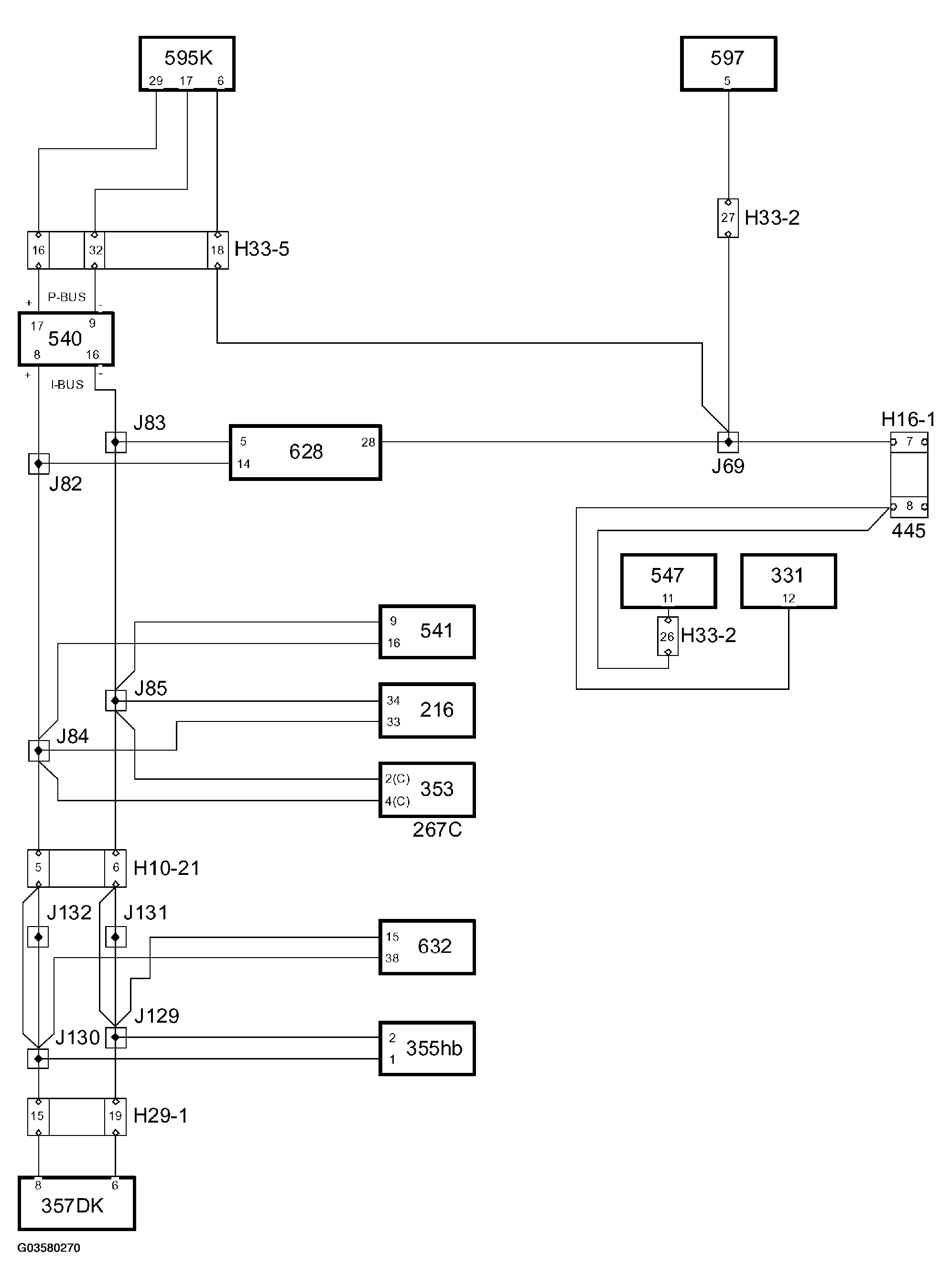

Fig 1: Bus And Diagnostics Circuit Diagram - Cars With Engine Management System PSG 16 (LHD)
G03580270Courtesy of SAAB-SCANIA OF AMERICA, INC.
