Main components

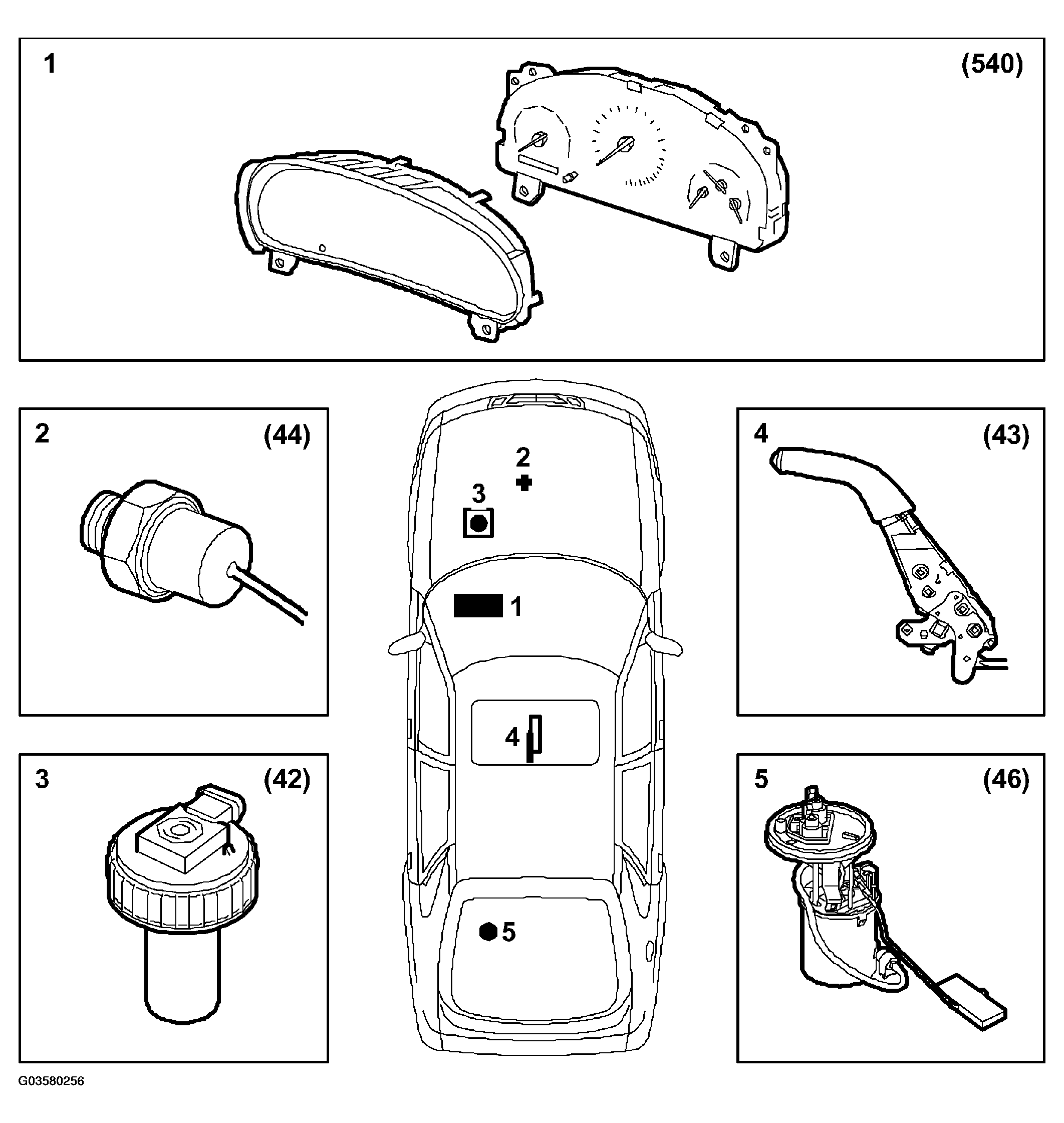

Fig 1: Identifying Main Components Of Instrument Panel
G03580256Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Main instrument unit (540)
  2. Engine oil pressure sensor (44)
  3. Brake fluid level sensor (42)
  4. Handbrake switch (43)
  5. Fuel level sensor (46)
