Technical Description: Ground: Notes

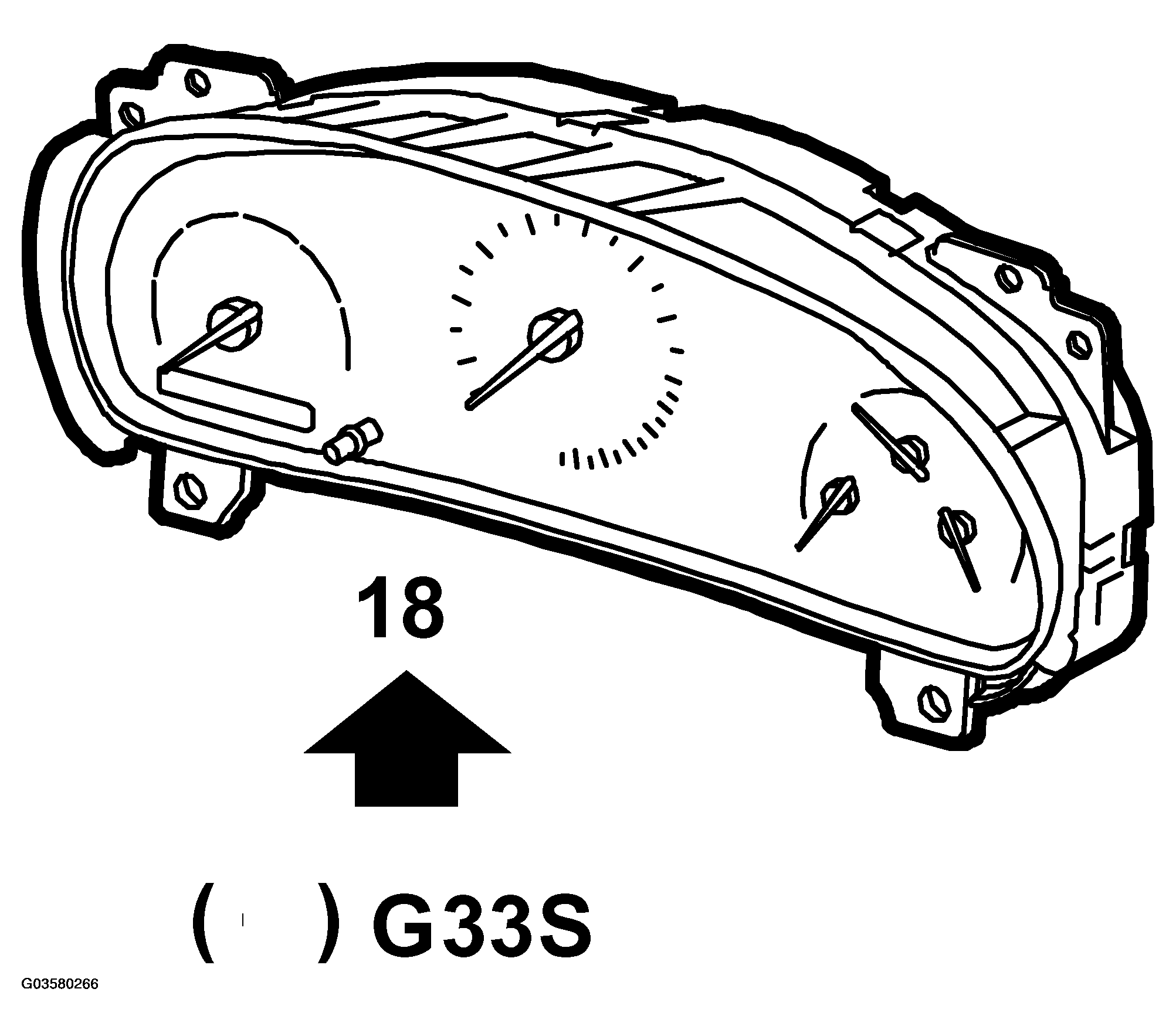

Fig 1: Identifying Ground Point Of Main Instrument Panel
G03580266Courtesy of SAAB-SCANIA OF AMERICA, INC.

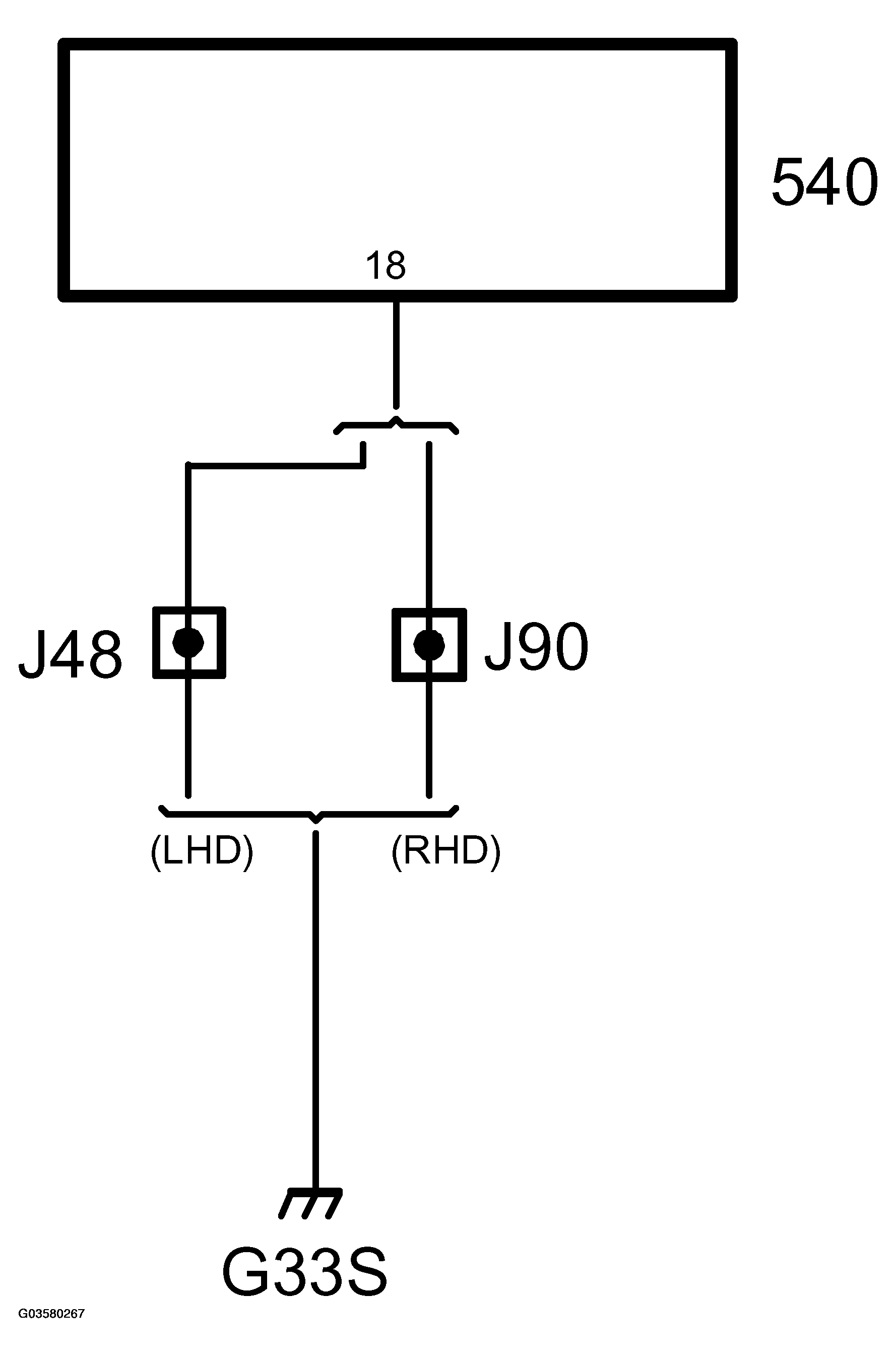

Fig 2: Identifying Circuit Diagram - Grounding Point To Main Instrument Panel
G03580267Courtesy of SAAB-SCANIA OF AMERICA, INC.

The main instrument unit is grounded through pin 18 to grounding point G33S.
