Control module inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.

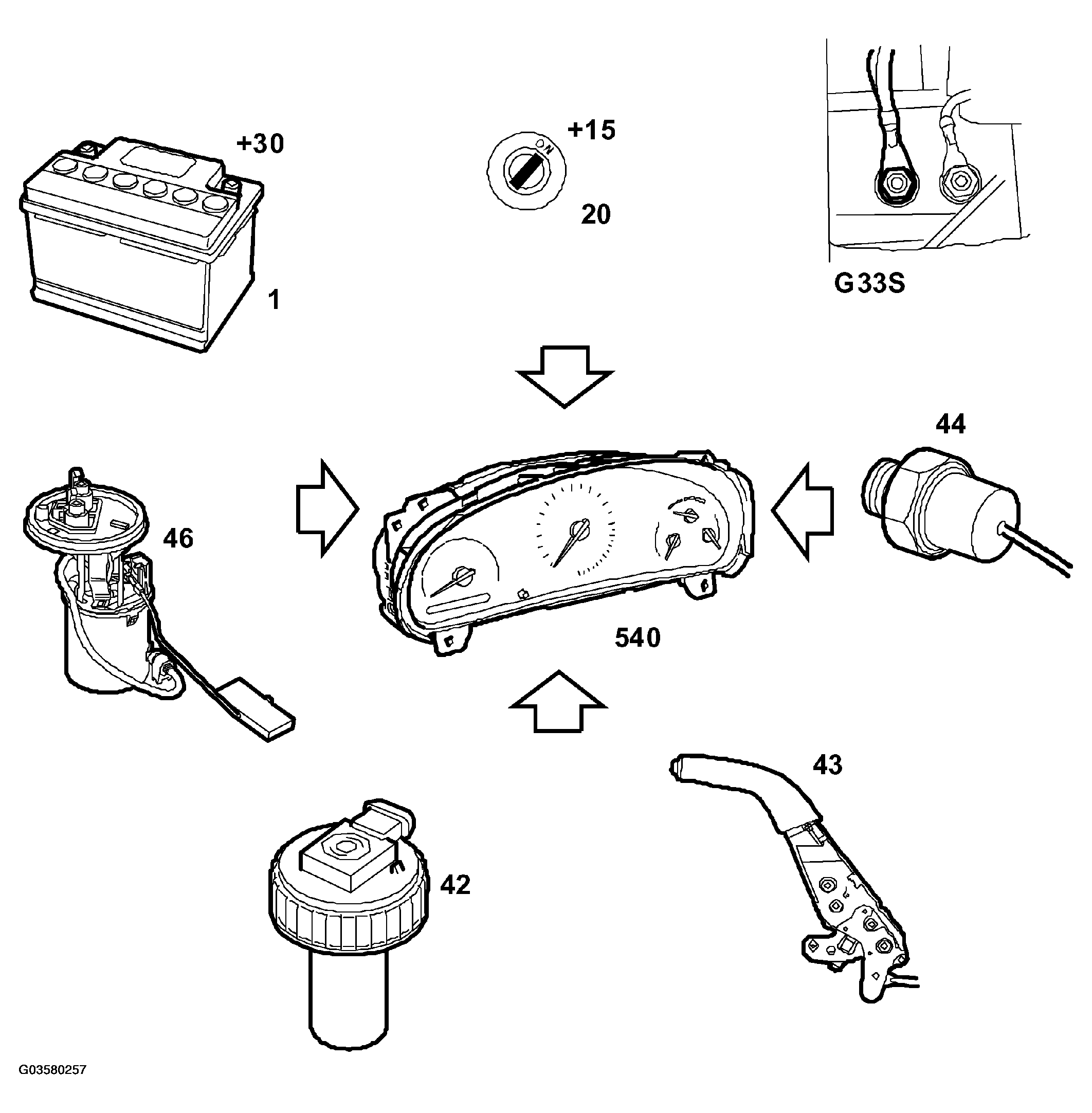

- Battery voltage +30 (1)
- Battery voltage +15 (20)
- Ground connection (G33S)
- Engine oil pressure warning lamp from the oil pressure sensor (44)
- Brake fluid level warning lamp from the brake fluid level sensor (42)
- Handbrake warning lamp (43)
- Fuel level from the fuel level sensor (46)
- Low fuel level indicator lamp (46)

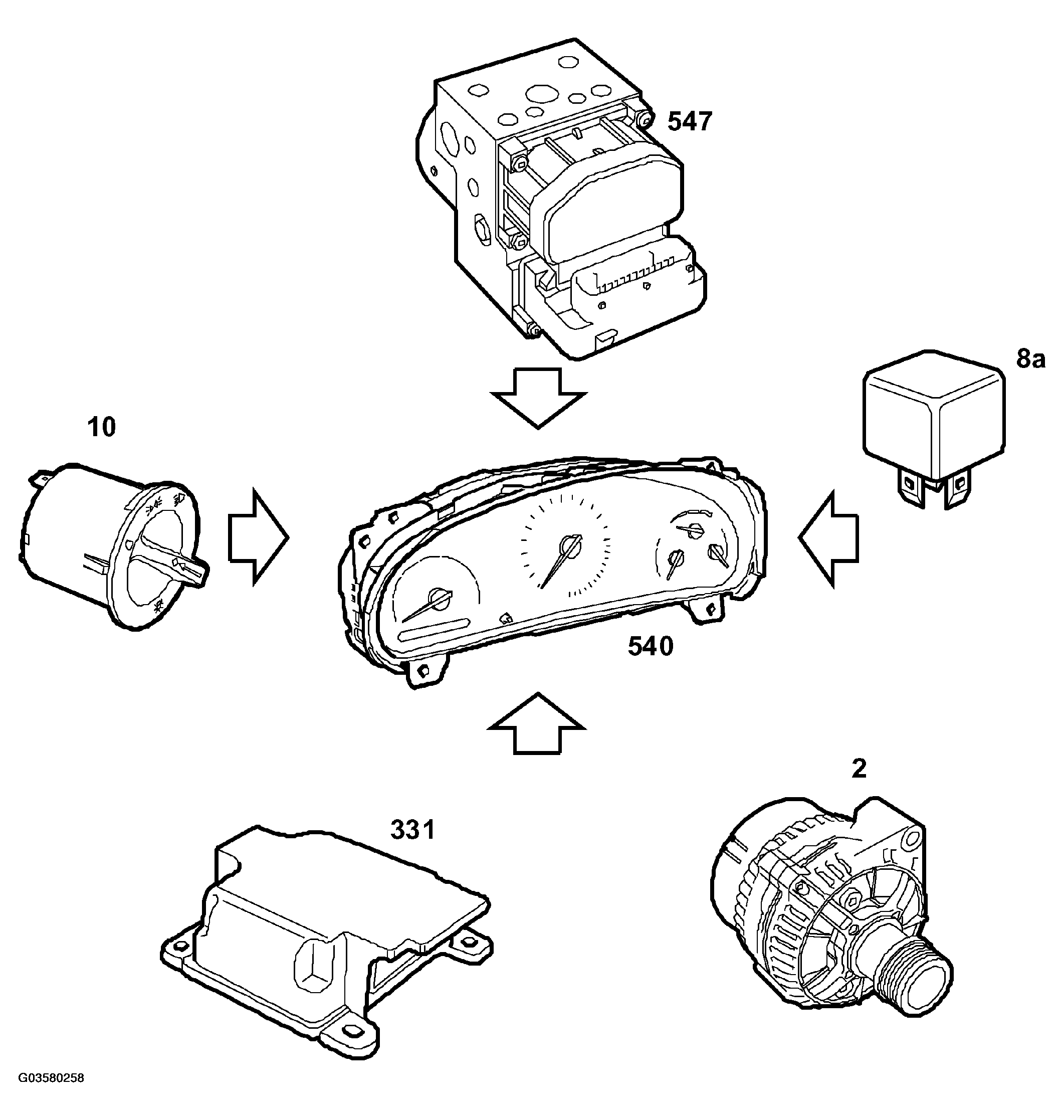

- Vehicle speed signal from the ABS control module (547)
- ABS warning lamp (ANTI-LOCK) from the ABS control module (547)
- AIRBAG warning lamp from the airbag control module (331)
- Charging warning lamp, generator (2)
- Lights-on indicator lamp from the light switch (10)
- Main beam indicator lamp from the main beam relay (8a)
