Tank sensor resistance

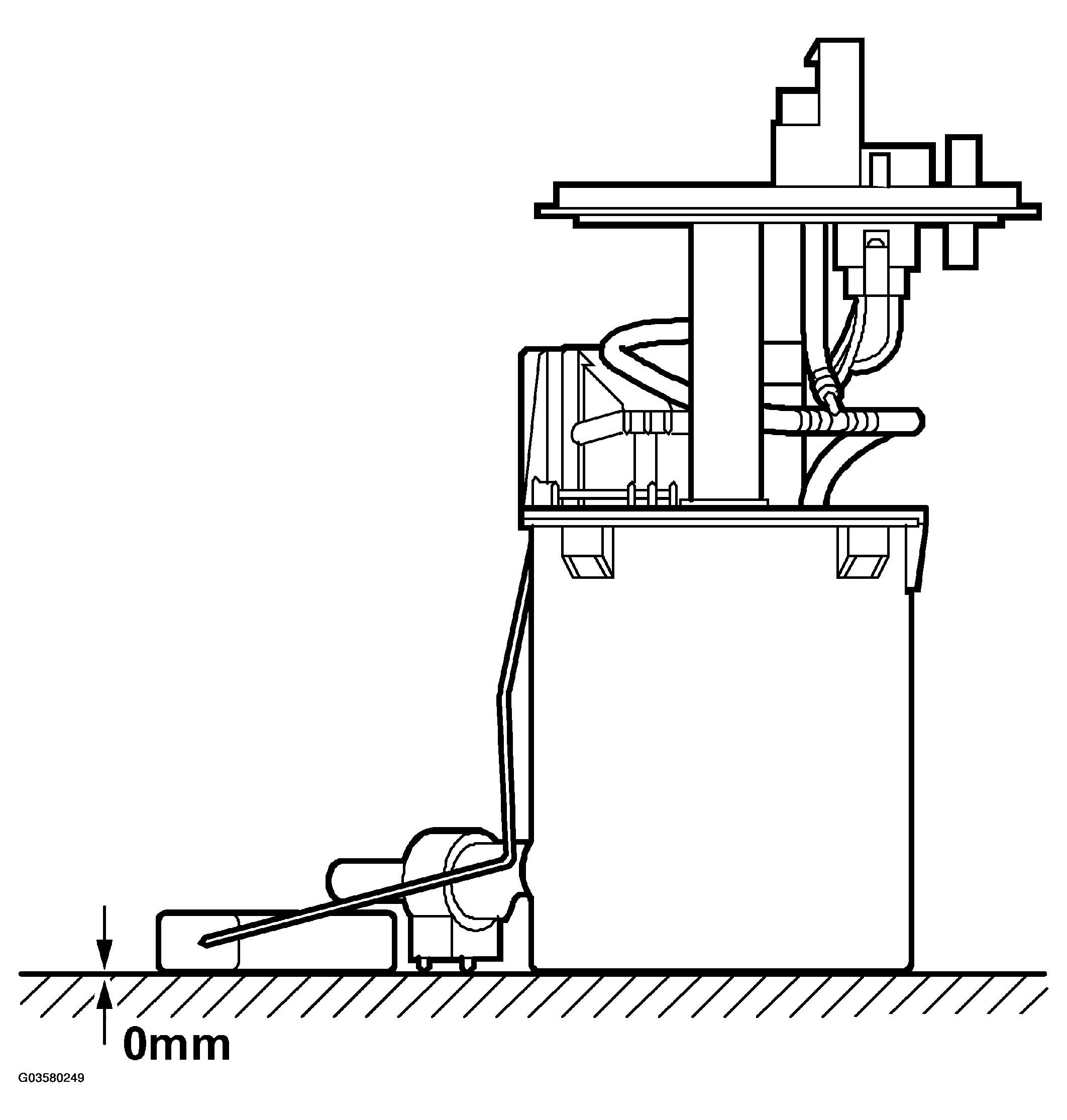

Fig 1: Identifying Tank Sensor Resistance
G03580249Courtesy of SAAB-SCANIA OF AMERICA, INC.
TANK SENSOR RESISTANCE REFERENCE

Resistance, empty tank Ohms 60+/-2.6
Resistance, full tank Ohms 390+/-6.0 (US/CA 370+/-6.0)
