Fault symptoms

Speedometer inoperative or highly inaccurate.

Fig 1: Identifying Speedometer - Cars With ABS Only
G03580230Courtesy of SAAB-SCANIA OF AMERICA, INC.

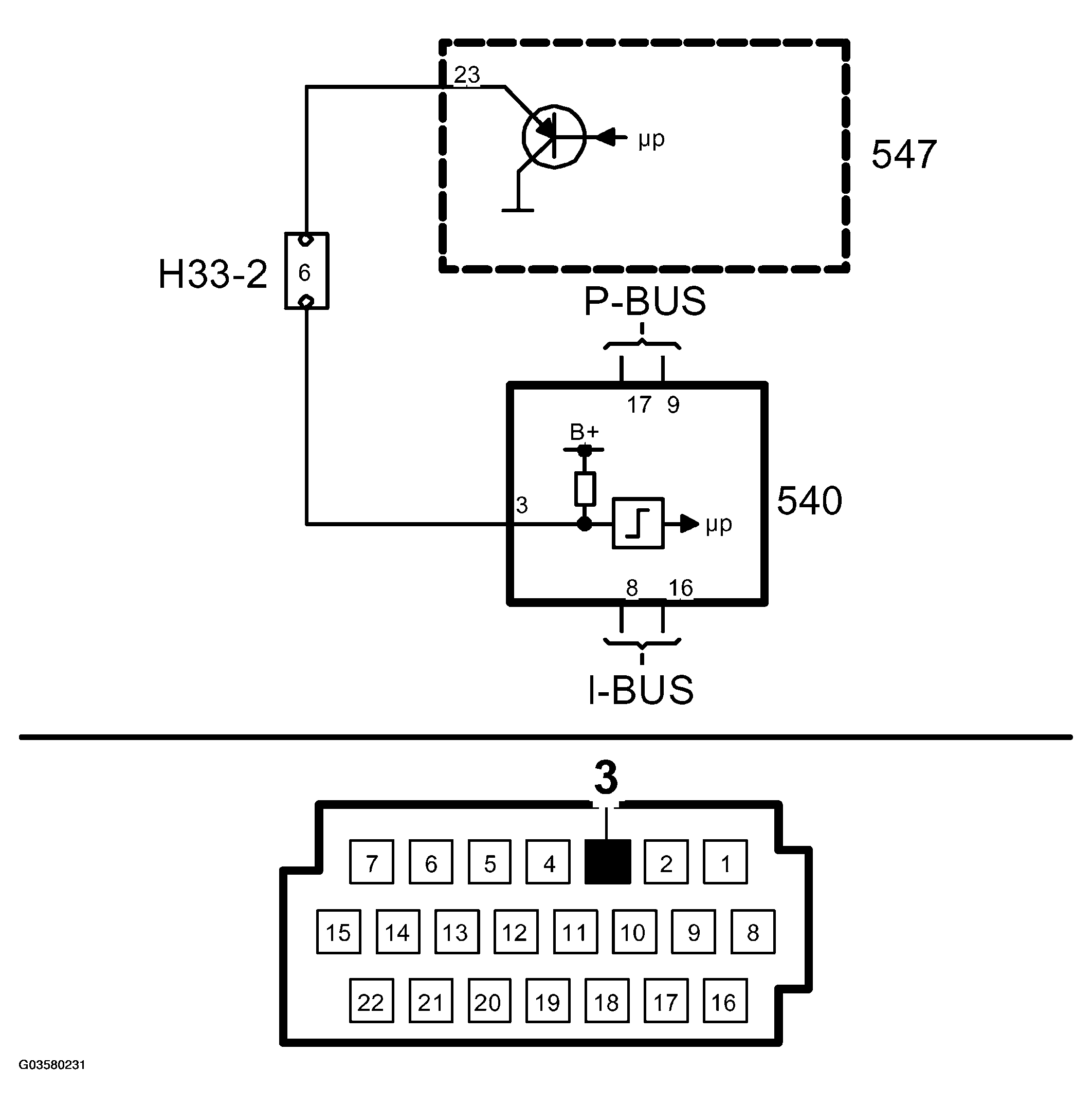

Fig 2: Identifying Circuit Diagram - Speedometer Inoperative Or Highly Inaccurate
G03580231Courtesy of SAAB-SCANIA OF AMERICA, INC.
